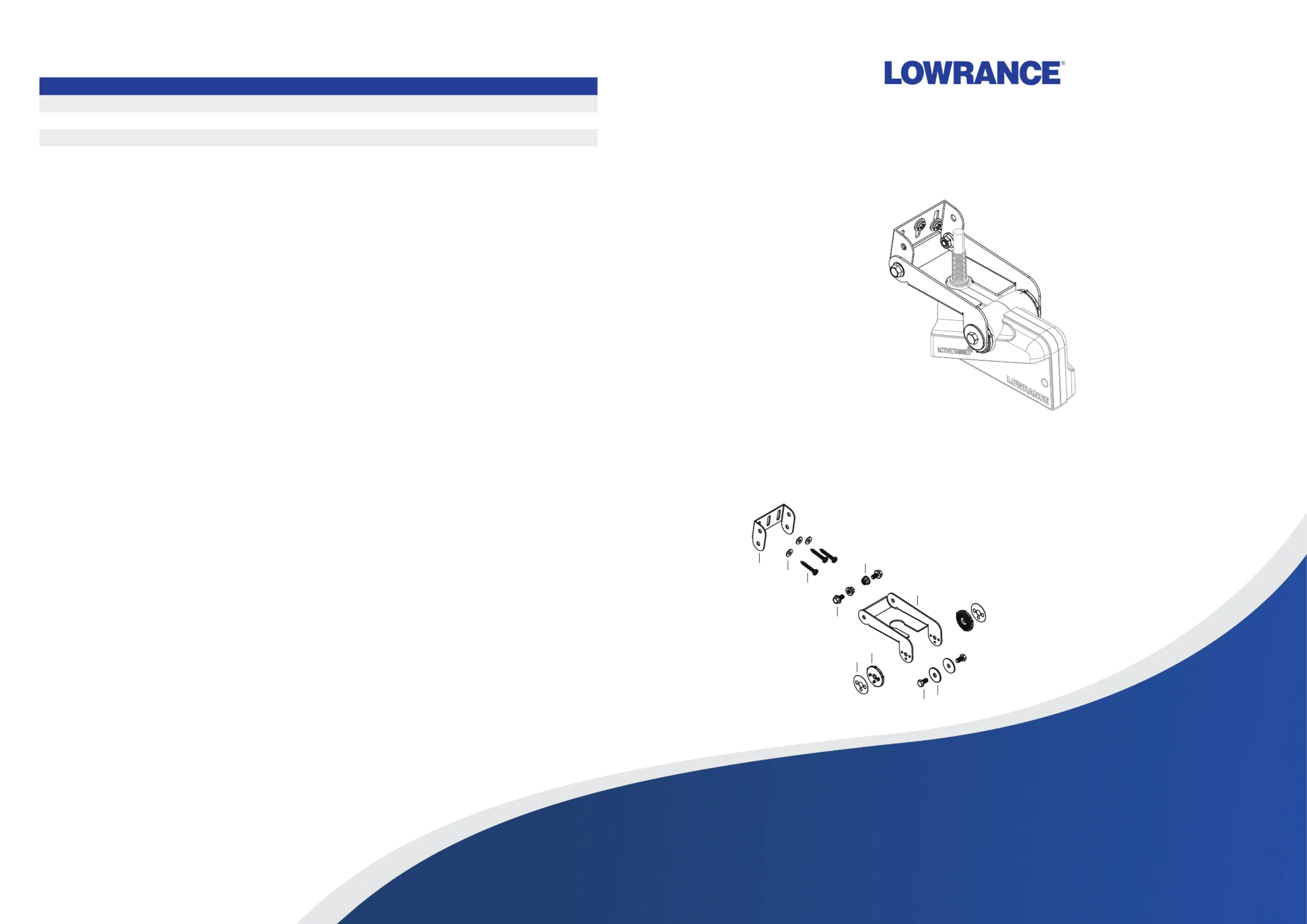

ACTIVETARGET TRANSOM BRACKET
INSTALLATION GUIDE
Technical specification
A Mounting bracket
B #10 flat washer, 3x
C #10 self tapping screw, 3x
D M6 hex head flange bolt, 2x
E M6 serrated flange nut, 2x
F Transducer bracket arm
G Gimbal retention adhesive, 2x
H Gimbal interface, 2x
I M6 screw, 2x
J M6 washer, 2x
PARTS INCLUDED
Recommended speed during operation
Down looking orientation 6 kn (7 mph)
Forward looking orientation 6 kn (7 mph)
AB
C
D
E
F
G
H
IJ
* Transducer not included.
*988-12824-001*
Mounting guidelines Mounting
1 2
B EC D A
Mirror the example if your boat has a counterclockwise propeller rotation.
Best mounting location:
A Undisturbed water ow
Avoid mounting:
B Behind planing strake
C 1 m (3.3’) to port (left) of propeller
D Within 7.5 cm (3“) to starboard of propeller
E Close to trim tabs
High speed
Low speed / Use mode
Mount the transducer so that it is fully submerged in low speeds and when in use. At high speeds the transducer should be out
of the water as much as possible.
90°
90° 9
90°
90° 9
Mounting options
Down looking
Forward looking
The transducer can be oriented in two dierent ways; down looking or forward looking.
3 4
5 6
7
Drill pilot holes and apply a marine
high-grade above- or below-waterline
sealant/adhesive compound to the
pilot holes.
