Side 1/2

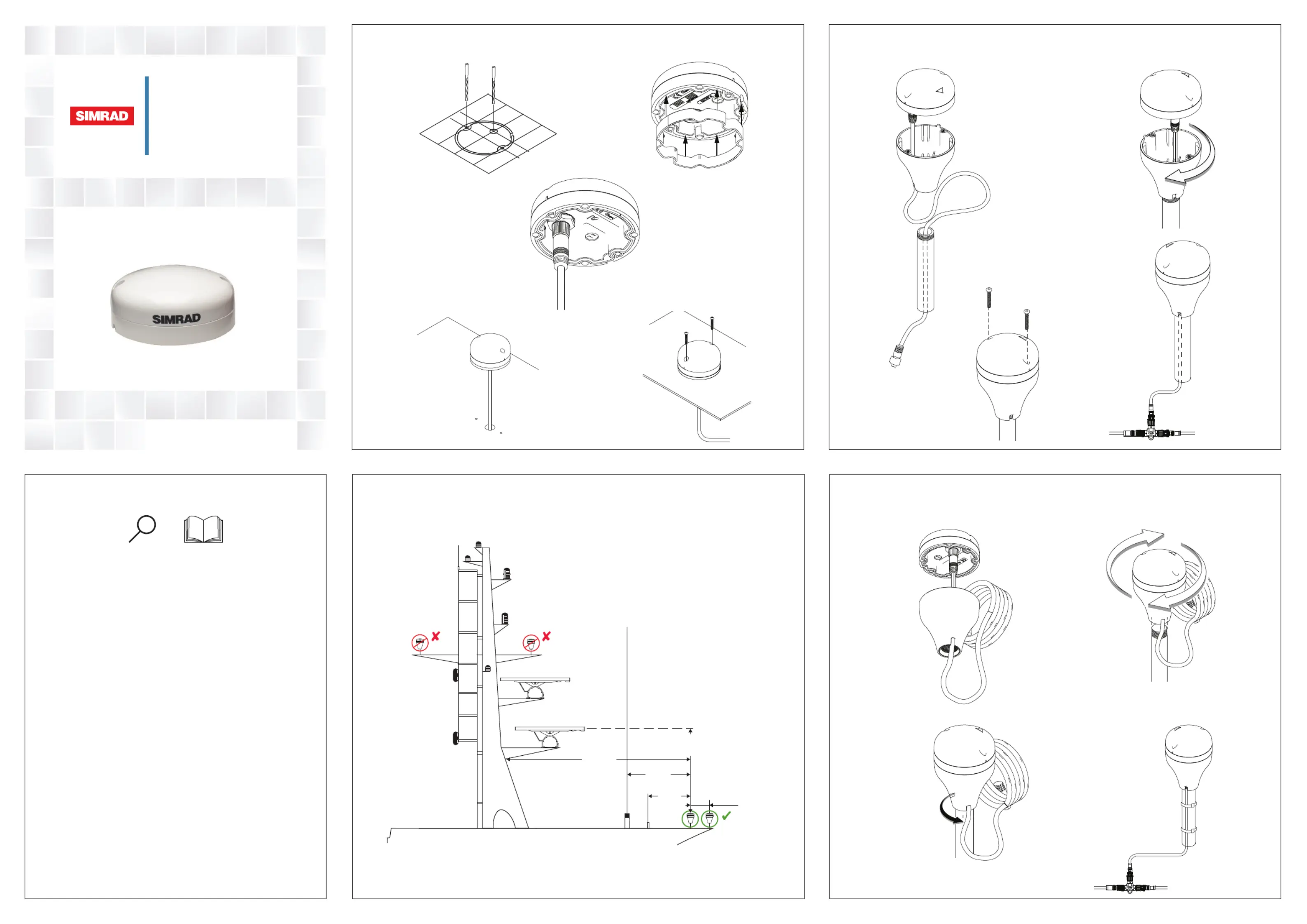

Antenna mounting location

2 m

(6.56”)

1 m (3.28”)

3 m

(9.84”)

10 m

(32.80”)

VHF

HF/SSB

5 m

(16.40”)

Surface mount the antenna

Pole mount (external cable)

Pole mount (Internal cable)

3 mm 19 mm

www.navico.com/commercial

GS70

Installation Guide

*988-10540-003*

For product manuals, technical specications,

certicates and declarations refer to the

product website:

www.navico.com/commercial

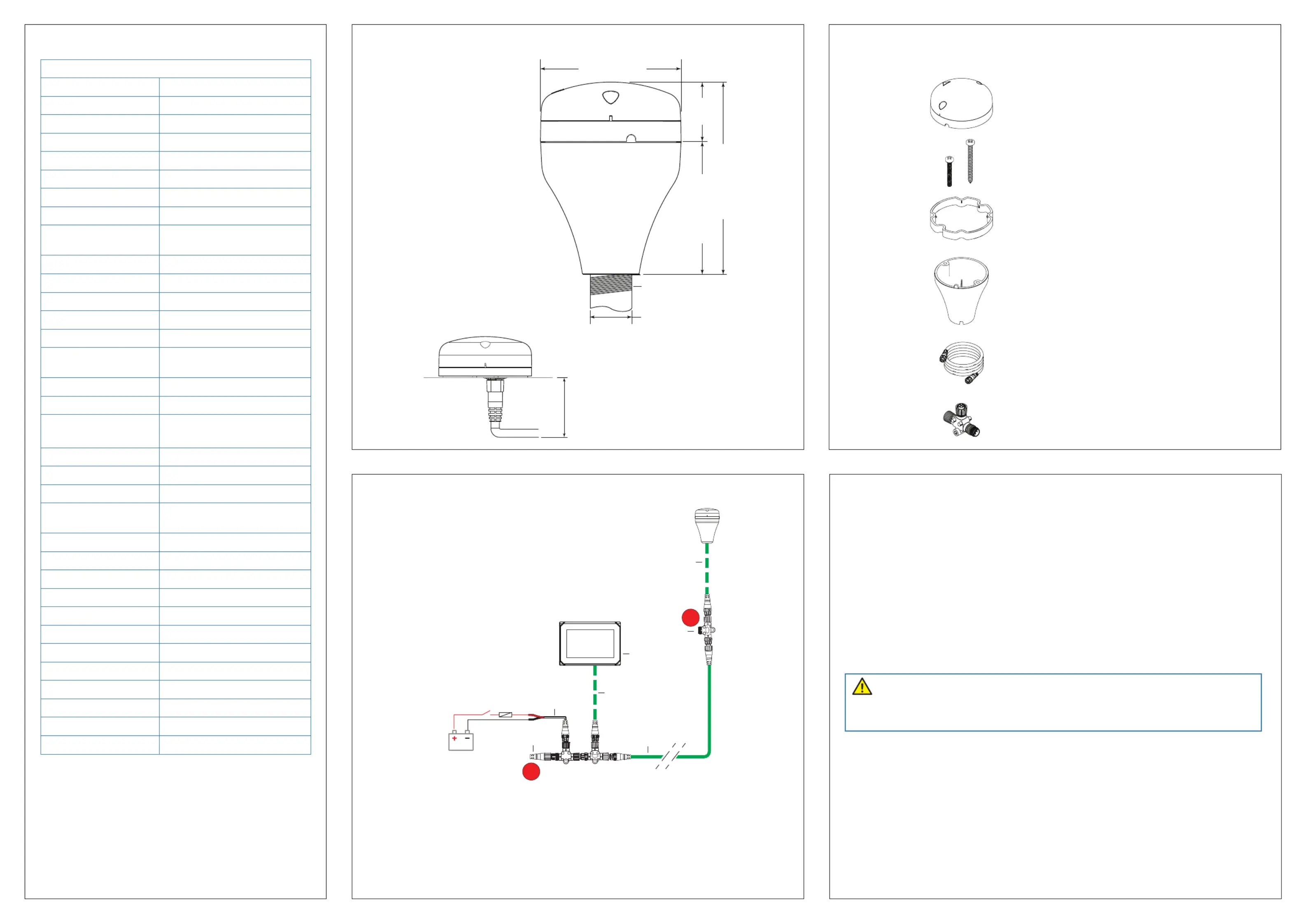

Dimensions

Wiring

12 V DC

Technical specications

NMEA 2000 drop cable, max 6 m

NMEA 2000 backbone

Display unit

NMEA 2000 backbone power supply

Terminator

Inline terminator

Supplied parts

Antenna

Fixing screws:

• 2 self-tapping screws for deck mount

• 2 screws for pole mount

Gasket

Pole mount

Micro-C Drop cable (female to male)

4.5 m (15 ft)

Micro-C T-joiner

38 mm

(1.50")

90 mm (3.54")

25.4 mm (1")

14 Threads per inch

85 mm (3.35")

123 mm (4.84")

60 mm

(2.36 “)

General

Receiver Type L1, C/A code, 1.575 GHz

Channels 32 channels

Position Update Rate Up to 10 Hz (1, 5, 10)

Horizontal Accuracy 3 m (9.8 ft)

Cold Start 50 sec

Start-Up Time 3 sec

Satellite Reacquisition 5 sec

Environmental

Operating

Temperature

-25° C to +60° C

Storage Temperature -40° C to +85° C

Splash Proof IPX7

Humidity 40° C, 93% RH, operating

Electrical

Input Voltage 9 V - 18 V DC

Reverse Polarity

Protection

Yes

Power Consumption < 100 mA @ 12 V DC

Mechanical

Dimensions 90 mm (dia.) x 38 mm (height)

3.54” (dia.) x 1.50” (height)

Weight 0.14 Kg (0.3 lbs) approx.

Power/Data Cable NMEA 2000

Antenna Connector NMEA 2000 Micro C

Mounting Flush mount / Standard 1”-14

threads pole mount

Communications

Data I/O Protocol NMEA 2000

NMEA2000 PNGs

PGN Number PGN Title

126992 System Time

129025 Position, Rapid Update

129026 COG & SOG RU

129029 Position Data

129539 GNS DOP

129540 GNS Satellites in view

127258 Magnetic Variation

127257 Attitude

Europe

This product complies with CE under RED Directive 2014/53/EU. The relevant Declaration of

Conformity is available in the product’s section at the following website:

www.navico.com/commercial

Australia/New Zealand

Complies with the requirements of level 2 devices of the Radiocommunications

(Electromagnetic Compatibility) standard 2017.

United States of America

Warning: The user is cautioned that any changes or modications not

expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

Compliance statements

Dierential data can be added to the system using external

DGNSS Corrections (PGN 129549).
