*988-10924-001*

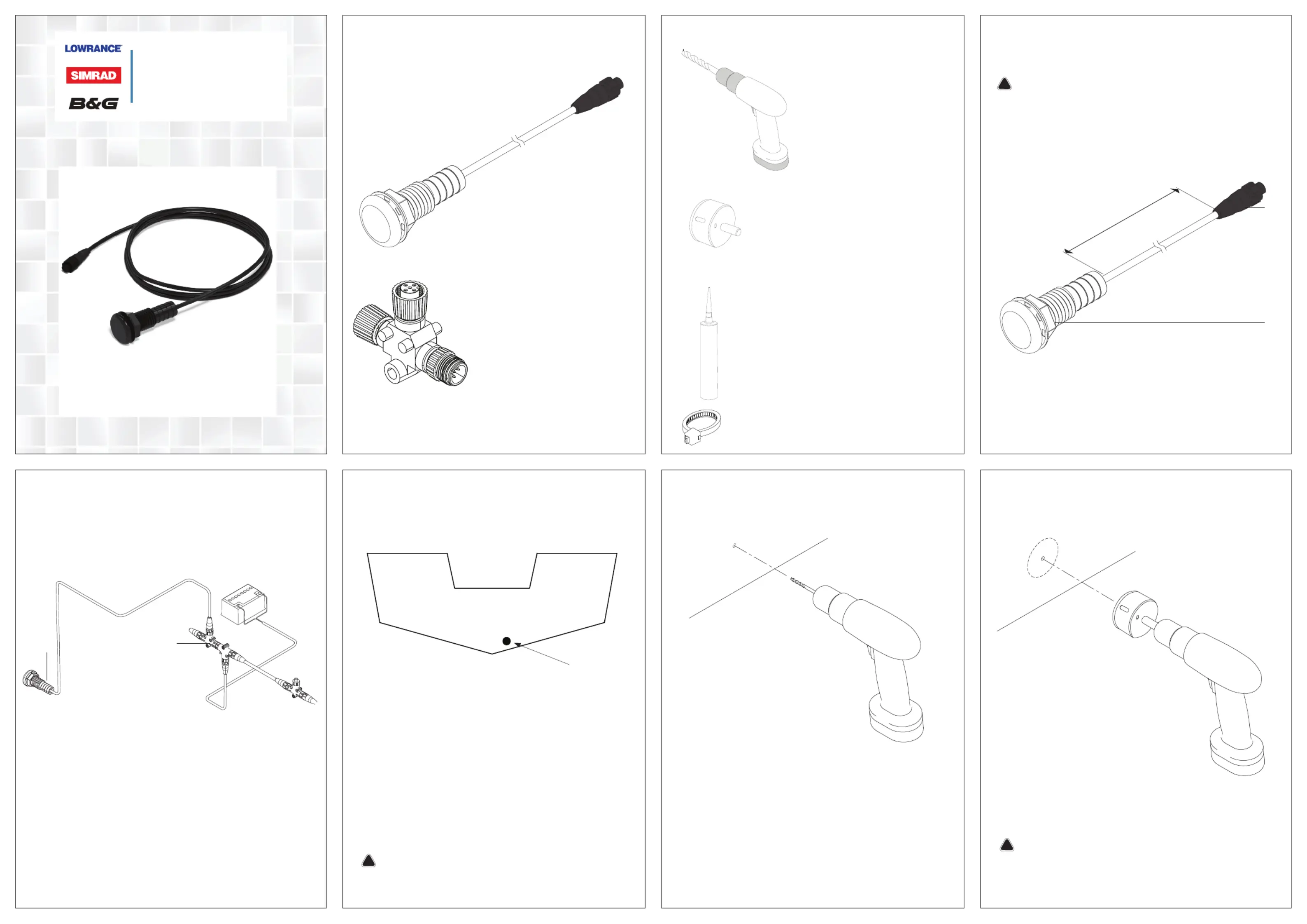

What’s in the box

Thru-Hull

Temperature Sensor

Installation Guide

Tools required Overview

Plan the installation

Example of installation

Plan the installation

Example of location

Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor

After you’ve determined the location for the Thru-Hull

temperature Sensor, drill a 3 mm (1/8” ) pilot hole from the

inside.

The Thru-Hull Temperature Sensor requires a 27 mm (1-1/16” )

hole. Using a hole saw, drill from the outside to prevent the gel

coat from cracking on ﬁberglass boats.

Afterwards, clean the area around the hole with detergent or

alcohol. This will establish a good surface for the adhesive.

The Thru-Hull Temperature Sensor can be mounted in any

location on the hull, the example shown here is for a transom

mount.

Wherever you install it, make sure the temperature sensor will

be in contact with the water at all times and that it does not

interfere with the boat’s trailer.

Drill with 3 mm (1/8” ) drill bit

Hole saw 27 mm (1-1/16”)

High quality marine grade above/

below waterline caulking compound

Cable ties (optional)

Suggested

location

Transom view

The Thru-Hull Temperature Sensor converts analog temperature

data to NMEA 2000 data format.

You should read all of the installation instructions

before proceeding. Decide where to install all components

before drilling any holes in your vessel.

Other parts required

Thru-Hull Temperature Sensor

NMEA 2000 T-Joiner

A NMEA 2000 connector

B Thru-Hull Temperature Sensor

A Thru-Hull Temperature module

B NMEA 2000 CAN bus backbone (NMEA 2000, IEC61162-1/2)

The maximum hull thickness for the Thru-Hull

Temperature Sensor is 31 mm (1-1/4”).

Use eye and face protection when drilling the hole.

3 m

(10’)

A B

80 mm (3.15”)

20 mm (0.9”)

40 mm (1.6”)

DimensionsConnect the Thru-Hull Temperature Sensor to the network

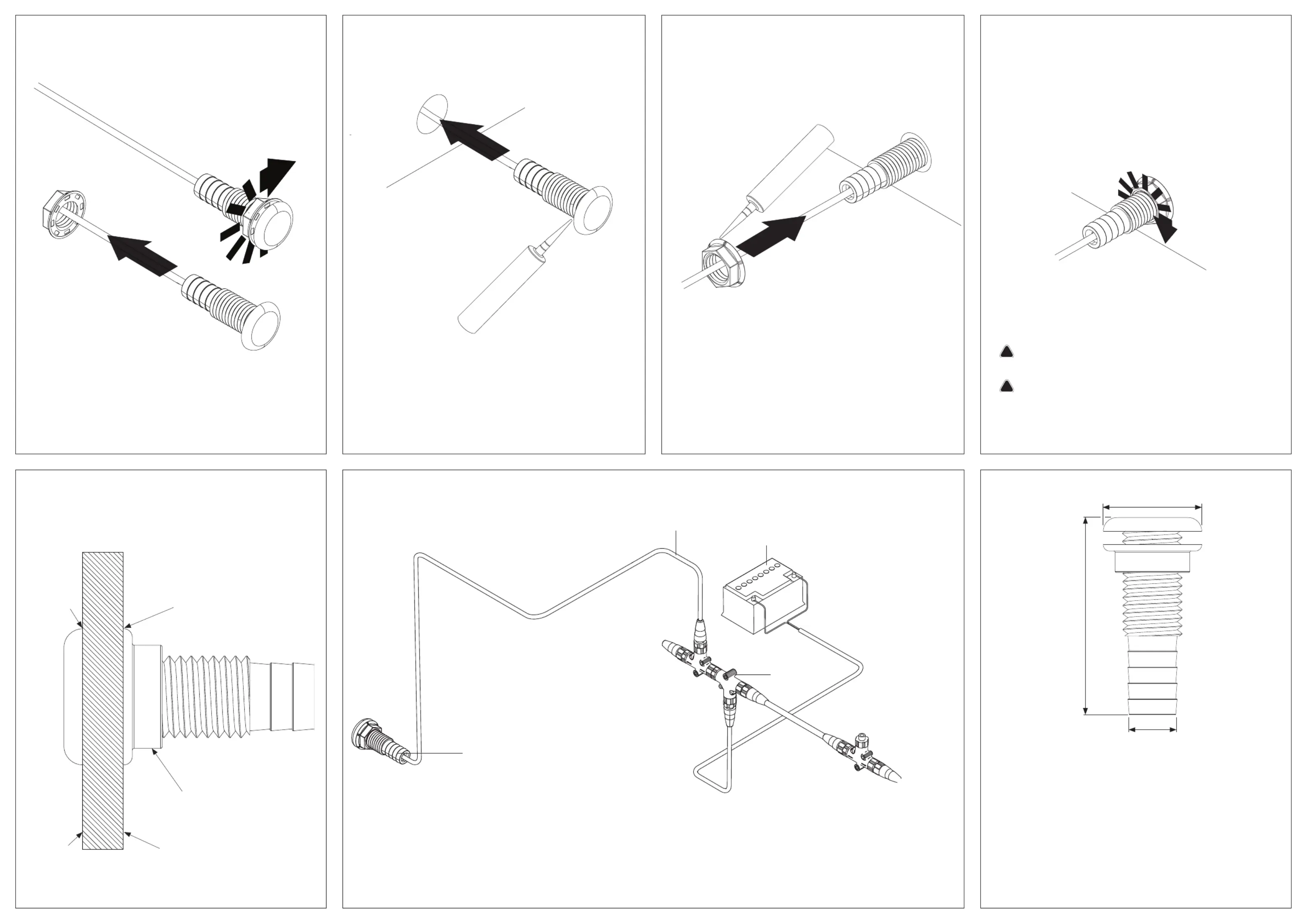

Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor

Install the Thru-Hull Temperature Sensor

Cross section of the hull showing Thru-Hull Temperature Sensor

installed

Using a high quality, marine-grade above- or below-waterline

sealant/adhesive compound, apply a 3 mm (1/8” ) bead of

sealant around the lip of the housing.

Then from the outside, pass the cable through the hole and

push the housing with sealant into it. Use a twisting motion to

squeeze out excess sealant. Remove excess sealant from the

outside of the transom before it dries.

On the inside of the hull, slide the nut over the back end of the

sensor and add a 3 mm (1/8”) bead of sealant around the edge

of the hole on the inside.

Hand-tighten the nut; be careful not to over-tighten. Remove

excess sealant from the inside of the hull before it dries.

Do not use a wrench to tighten the nut.

Check for leaks immediately. Check the boat for leaks

again several times during the next 24 hours. If you notice

any leakage at all, the sensor should be re-installed with a

new coat of adhesive.

A NMEA 2000 drop cable 3 m (10 ft)

B Thru-Hull Temperature Sensor

C NMEA 2000 CAN bus backbone

D 12 V DC Power supply. Connect via a switch and 5 amp fuse

Specications

Temperature Range between -20 and 80 degrees Celsius

(4° to 176° F)

PGNs transmitted

59392 – ISO Acknowledgment

60928 – ISO Address Claim

126996 – Product Information

65285 - Temperature with Instance

Sealant Sealant

Nut

Inner hull

Outer hull

Install the Thru-Hull Temperature Sensor

Remove the nut from the sensor, cable and the red connector.
