Advanced Wireless Foot Pedal

Damper Assembly

Installation Guide: EN

Document version: 001

⚠WARNING: This product must be installed in accordance

with the instructions provided. Failure to do so could result in

personal injury, damage to your vessel and/or poor product

performance.

⚠WARNING: Performing service or maintenance without

rst disconnecting the battery can cause product damage,

personal injury, or death due to re, explosion, electrical shock,

or unexpected motor starting. Always disconnect the battery

cables from the battery before maintaining, servicing, installing,

or removing motor components.

In the box

• 1x Advanced wireless foot pedal damper assembly

• 2x T15 Torx

screws

• 1x M4 x 14 socket screw

Tools needed

• #2 Phillips screwdriver

• T15 Torx

screwdriver

• 3 mm (1/8 in) Allen key

• T8 Torx

screwdriver

• Torque wrench

Installation

1 Remove the batteries from the foot pedal or, if powered

by 12 V power cable, disconnect the 12 V power cable

from the battery.

2 If your foot pedal is mounted to your boat, unbolt it.

3 Using a #2 Phillips screwdriver, remove the eight screws

that secure the base plate. Remove the base plate.

4 Using a T15 Torx

screwdriver, remove the two screws

( ) from the front of the damper assembly.A

5 Using a 3 mm (1/8 in) Allen key, remove the screw ( ) B

from the back of the damper assembly.

6 Using a T8 Torx

screwdriver, remove the two screws

( ) that connect the angle sensor to the side of the C

damper.

C C

7 Remove the damper assembly from the pedal housing.

To attach the new damper assembly:

8 Align the angle sensor with the side of the new damper

assembly and secure using a T8 Torx

screwdriver and

the two T8 Torx

screws. Tighten to torque 0.5 Nm (4.4

in-lb).

9 Place the new damper assembly into the pedal housing.

10 Secure the front of the damper assembly using a T15

Torx

screwdriver and two new T15 Torx

screws

(supplied). Tighten to torque 1.8 Nm (16 in-lb).

11 Secure the back of the damper assembly using a

3 mm (1/8 in) Allen key and a new M4 x 14 socket screw

(supplied). Tighten to torque 0.5 Nm (4.4 in-lb).

12 Screw the base plate back on.

13 Re-insert the batteries, or, if your trolling motor was

cable to the battery.

14 If your foot pedal was mounted to your boat, remount it.

Otherwise, place the pedal where you intend to use it.

Calibration

After you’ve replaced the damper assembly, you need to re-

calibrate the foot pedal’s:

• range of motion (heel to toe range)

• angle offset (the difference between the pedal’s neutral

(flat/level) position and your preferred angle for steering

straight ahead. The offset can be between 0 and 10

degrees).

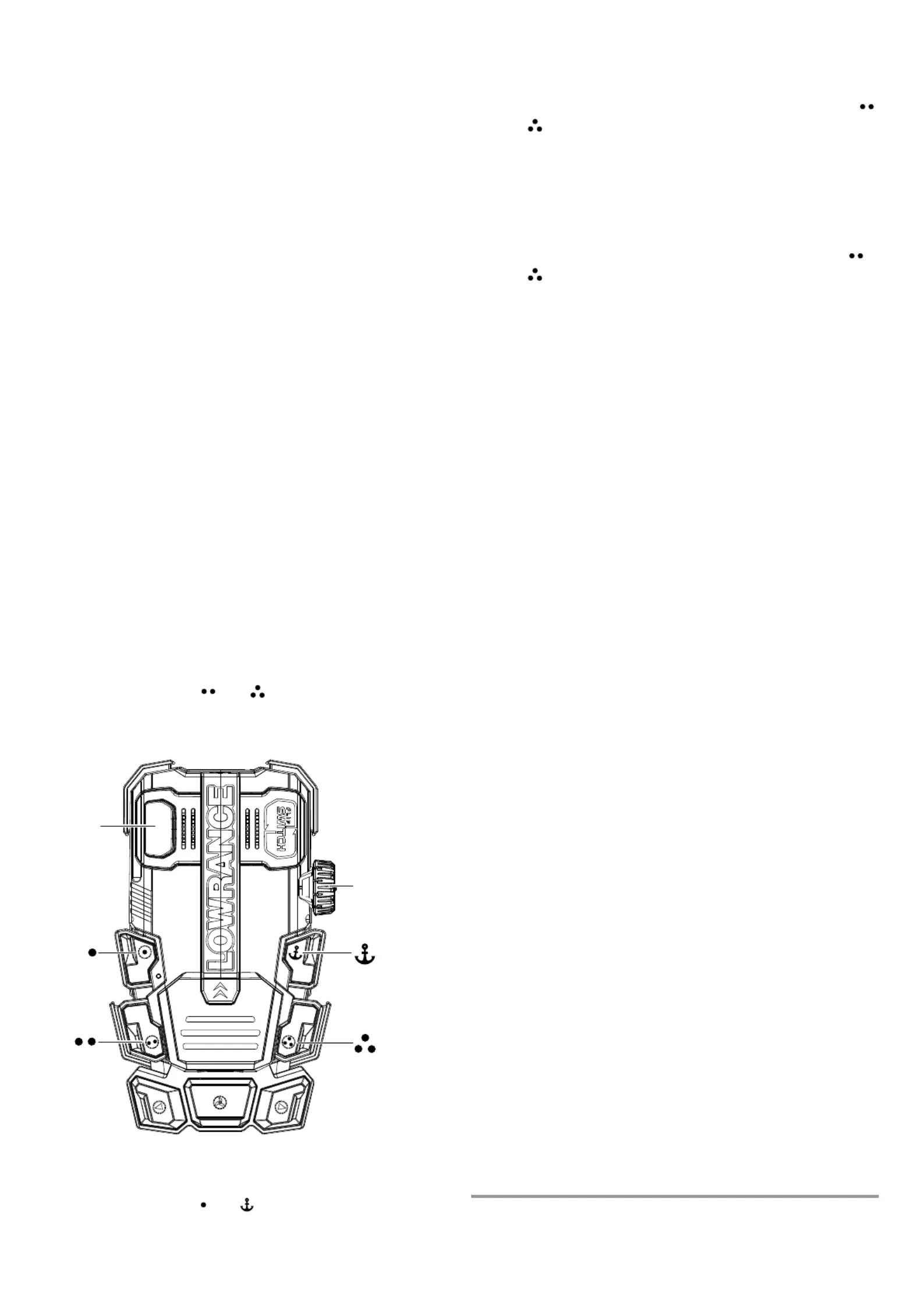

Calibrate the range of motion

1 Power on the foot pedal.

2 Stow the trolling motor and power it off (so it is NOT

connected to the foot pedal).

3 Press the pedal fully toe down.

4 ARotate the speed adjustment knob ( ) forward to MAX.

5 Press and hold the and keys on the foot pedal

simultaneously until the pedal LED blinks green (approx

10 seconds).

6 Press the pedal fully heel down.

7 Rotate the speed adjustment knob backward to OFF.

8 Press and hold the and keys simultaneously until

pedal LED blinks green (approx 10 seconds).

Calibrate the angle offset

1 Power on the trolling motor and make sure it is

connected to the Advanced Wireless foot pedal.

2 To enter user conguration mode, press and hold the

and keys on the foot pedal simultaneously until the

LEDs on the trolling motor mount start flashing.

3 Stand in your intended usage position and press the

pedal to the most comfortable neutral position (where

you want your foot to be when going in a straight line).

4 To save the angle offset, press and release the

momentary switch ( in the previous illustration). B

5 To exit user conguration mode, press and hold the

and keys on the foot pedal simultaneously.

Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit www.navico.com/intellectual-property to

review the global trademark rights.
