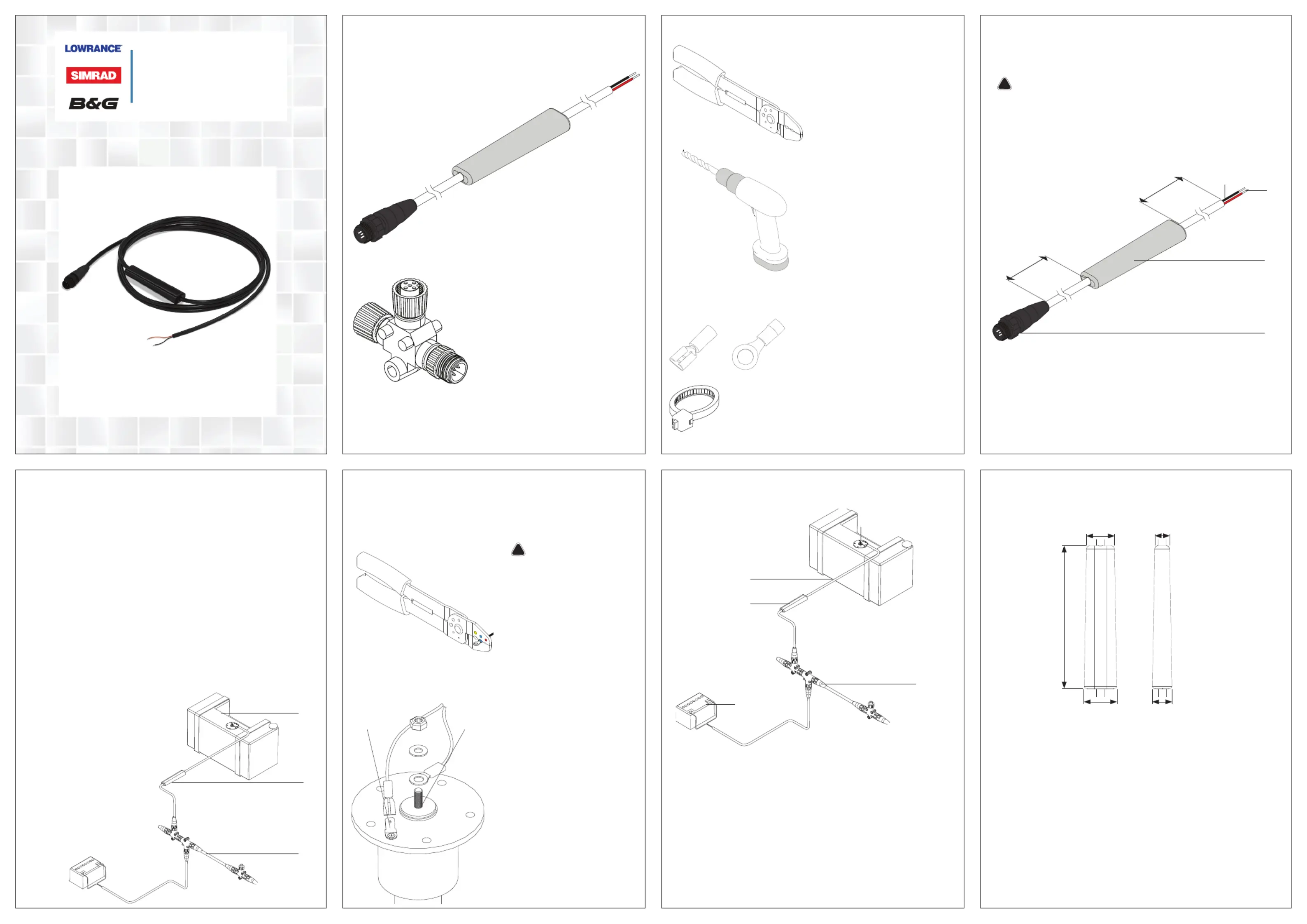

What’s in the box

Fluid Level Sensor

Installation Guide

Tools required Overview

Plan the installation

The sensor is designed to be the only device receiving signals

from the sending unit. If the sensor is replacing a previous gauge,

make sure you remove all the old gauge wires before you begin.

If this is a replacement, note which connection is positive before

disconnecting the old wires.

This document assumes the mounting bracket is connected to

the ﬂuid level arm (or potentiometer) and is already installed in

the tank. The sensors wires — red (positive) and black (negative)

— will connect to the sending unit’s mounting bracket, on top of

the tank.

Use one Fluid Level Sensor for each diﬀerent ﬂuid tank. When

having 2 diﬀerent tanks of similar ﬂuids it is advisable to label

them so they can be identiﬁed in the NMEA 2000 device list in

the gauge or multi-function display.

Install the Fluid Level Sensor

Attach marine-grade crimp-on connectors to both the red lead

(+) and the black (-) lead. The Fluid Level Sensor must be the

ONLY device connected to the sender

Attach the positive red

lead to the sending unit’s

positive connector, usually

located in the center of the

mounting plate. Connect

the negative black lead to

the sending unit’s negative

connector. To ensure you

know which connection

is which, refer to the

mounting instructions that

came with the sending unit.

Wire Pliers

Drill with 22 mm (7/8” ) drill bit

Marine-grade Crimp-on wire

connectors

Zip ties for securing Fluid Level

Sensor

The Fluid Level Sensor is designed to monitor fuel, live well, oil,

fresh water, waste water (gray water), and black water tanks.

You should read all of the installation instructions

before proceeding. Decide where to install all components

before drilling any holes in your vessel.

The sensor is pre-conﬁgured to the US marine standard of 33.5-

240 ohm. Please refer to your operations guide for conﬁguration

information.

Do NOT connect the

sensors to the NMEA

2000 network until you

have nished connecting

the red and black leads to

the sending unit. This re-

duces the risk of a spark

when working around

fuel tanks.

Other parts required

Fluid Level Sensor

NMEA 2000 T-Joiner

A Red wire for positive connector in ﬂuid level ﬂoat

B Black wire for negative connector in ﬂuid level ﬂoat

C Fluid Level Sensor

D NMEA 2000 connector

A Fluid tank

B Fluid Level Sensor

C NMEA 2000 CAN bus

backbone

Positive

Connector

(Red)

Negative

Connector

(Black)

46 cm

(18”)

3 m

(9.8’)

Dimensions

Connect the Fluid Level Sensor to the network

A Fluid Level Sensor

B NMEA 2000 CAN bus backbone

C 12 V DC Power supply.

Connect via a switch and 5 amp fuse

D Fluid Level Sender

E Cable/wire leading to the Fluid Level Float in the tank

Specications

Compatible with most sending units that are calibrated

between 33 and 240 ohm.

PGNs transmitted

59392 – ISO Acknowledgment

59904 – ISO Request

60928 – ISO Address Claim

126996 – Product Information

127505 - Fluid Level

86.5 mm

(3.4”)

17.1 mm

(0.67”)

9.6 mm

(0.38”)

20 mm

(0.8”)

11.5 mm

(0.45”)
