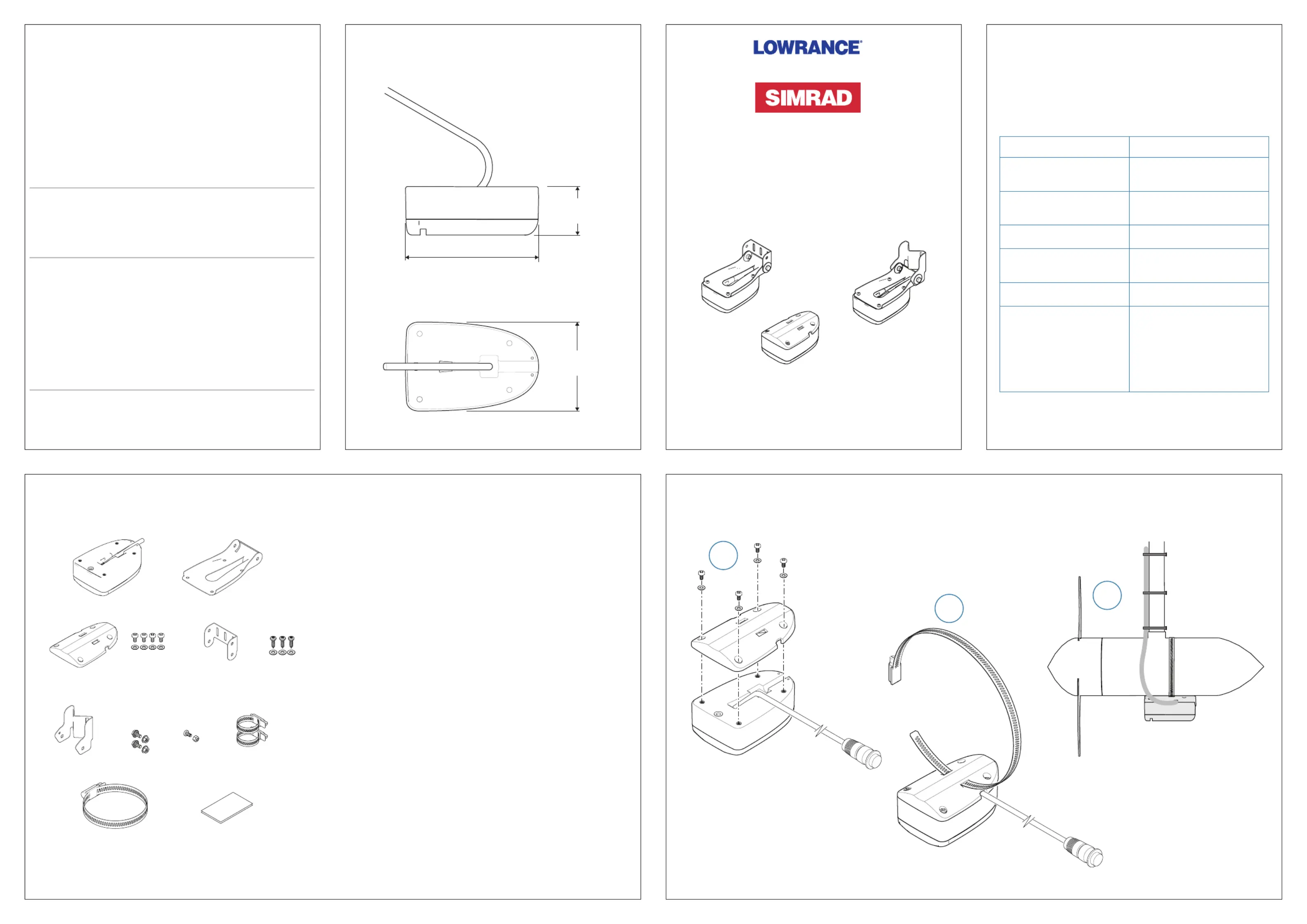

Dimensions

Parts included

Compliance statements

A. LiveSight transducer, incl. 7,6 m (25 ft) cable

B. Transducer bracket

C. Trolling motor adapter

D. Screws M4x8 Ph SS18-8 and washers (4x)

E. Transom mounting bracket

F. Screws #10x11/4” tap and washers (for transom

bracket) (x3)

G. Pole adapter (for trolling motor shaft)

H. Hex ange bolts M6-1x12, SS18-8, and M6x1

serrated ange nut, 316SS (x2)

I. Screw M4x8 Ph SS18-8 and M4 316SS nylock nut

J. Clamp hose 20 SS (for trolling motor shaft) (x2)

K. Clamp hose 72 SS (for trolling motor adapter)

L. Documentation

LiveSight transducer

Installation Guide

Technical specications

Environmental

Water temperature for

operation

0°C to +35°C

(32°F to +95°F)

Storage temperature -30°C to +70°C

(-22°F to +158°F)

Physical

Weight (without cable) 0,614 kg

(1.354 lbs.)

Cable length 7,6 m (25 ft)

Mounting options • Transom

• Trolling motor shaft

(forward-looking)

• Trolling motor

(down-looking)

¼Note: The most up-to-date specications are

available at the product web site.

*988-12333-002*

90 mm

3.5 “

50 mm

2.0 “

134 mm

5.3 “

Trolling motor installation (down-looking)

United States of America

¼Note: The user is cautioned that any changes or modications not

expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment

Europe

Navico declares under our sole responsibility that the product conforms

with the requirements of:

• CE under EMC Directive 2014/30/EU

The relevant Declaration of Conformity is available on the following

websites:

– www.lowrance.com

– www.simrad-yachting.com

Australia and New Zealand

Navico declares under our sole responsibility that the product conforms

with the requirements of:

• level 2 devices of the Radiocommunications (Electromagnetic

Compatibility) standard 2017

The relevant Declaration of Conformity is available on the following

websites:

– www.lowrance.com

– www.simrad-yachting.com

12 3

Mount the transducer parallel

to the water surface.

Apply a marine high-

grade above- or below-

waterline sealant/

adhesive compound to

the pilot holes.

Torque to

7 Nm

(15 lbf in).

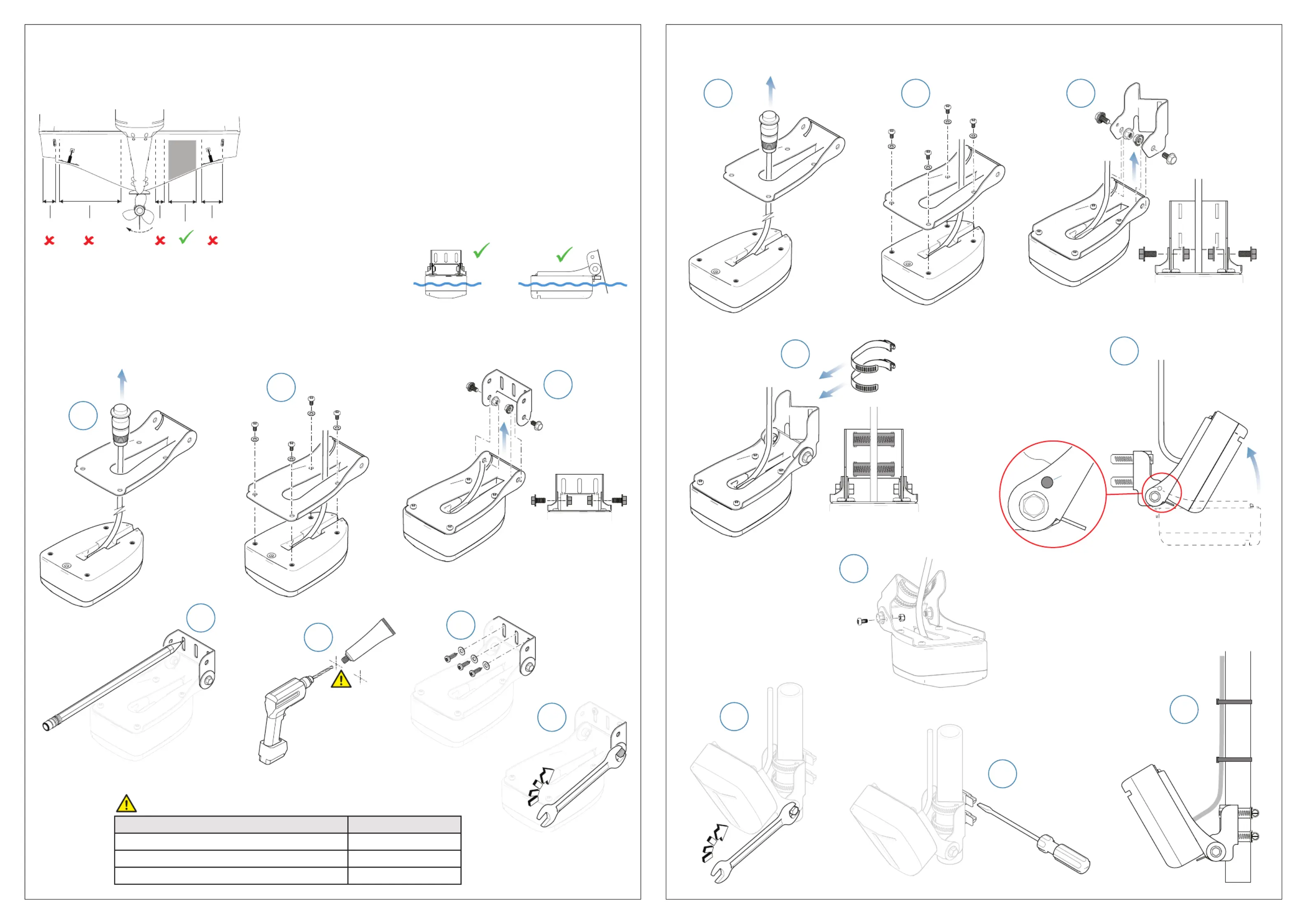

Mounting guidelines

Installation

¼Notes:

The transducer could lose bottom signal when the boat

is on plane.

The transducer will not work while it is out of the water.

Mirror the example if your boat has a

counterclockwise propeller rotation.

B EC D A

Best mounting location:

A. undisturbed water ow

Avoid mounting:

B. behind planing strake

C. 1 m (3.3’) to port (left) of propeller

D. within 7.5 cm (3“) to starboard of propeller

E. close to trim tabs

Material #10 screw

Soft materials e.g. plywood Ø 3.7-4.0 mm (5/32”)

Hard materials e.g. berglass, acrylic, hardwoods Ø 4.1-4.7 mm (3/16”)

Aluminum Ø 4.2-4.5 mm (0.173”)

Recommended pilot holes for self-tapping screws:

Torque to 7 Nm

(15 lbf in).

Transom installation (down-looking) Trolling motor shaft installation (forward-looking)

Tilt the transducer until the

holes ( ) on the transducer

bracket and on the pole

adapter align.

Install the screw and

nylock nut to x the

transducer angle.
