Dimensions

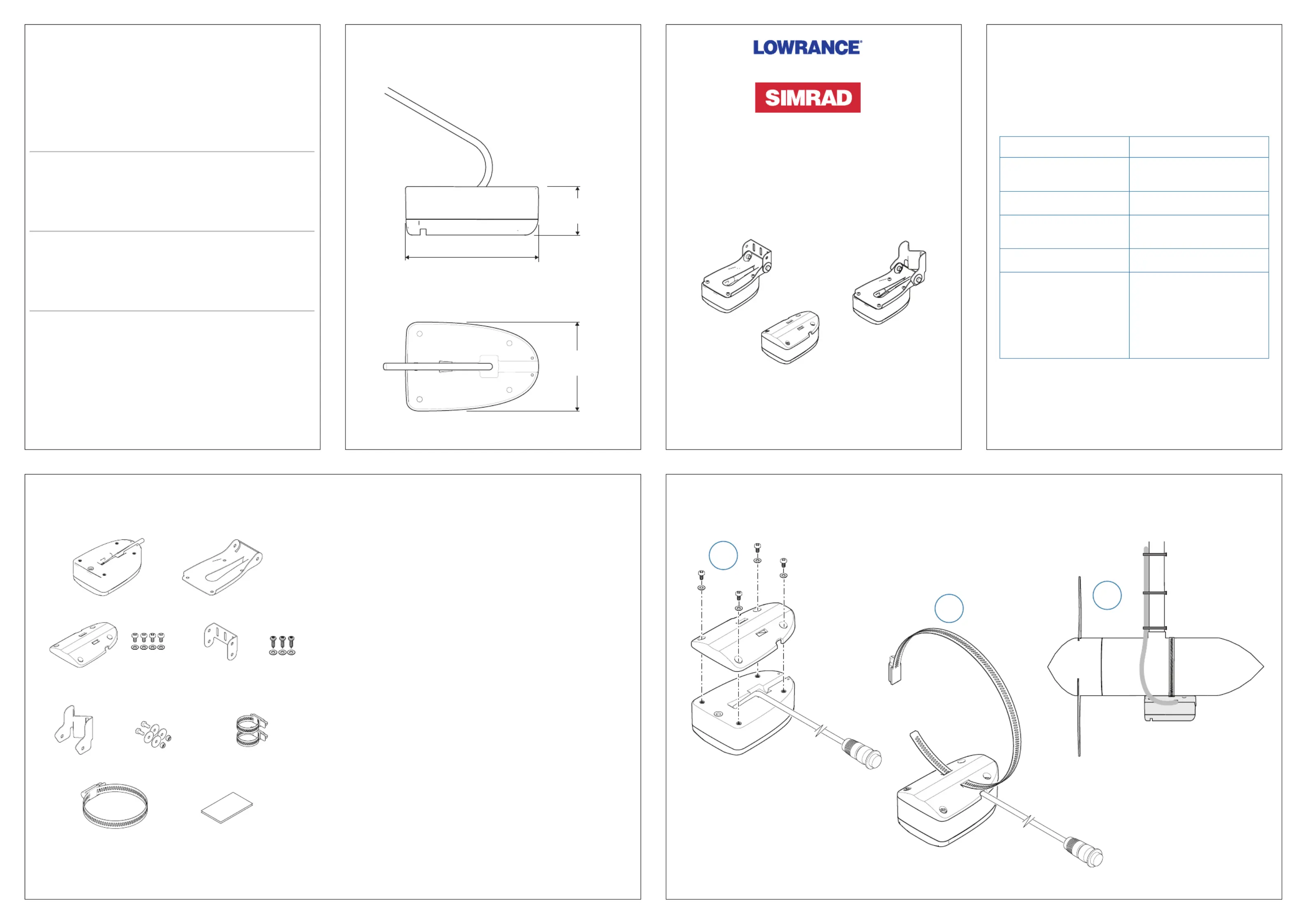

Parts included

Compliance statements

A. LiveSight transducer, incl. 7,6 m (25 ft) cable

B. Transducer bracket

C. Trolling motor adapter

D. Screws M4x8 Ph SS18-8 and washers (4x)

E. Transom mounting bracket

F. Screws #10x11/4” tap and washers (for transom

bracket) (x3)

G. Trolling motor pole adapter

H. Hex Flange Bolts M6-1x12, SS18-8, nuts and

washers (x2)

I. Clamp hose 20 SS (for trolling motor shaft) (x2)

J. Clamp hose 72 SS (for trolling motor adapter)

K. Documentation

LiveSight transducer

Installation Guide

Technical specications

Environmental

Water temperature for

operation

0°C to +35°C

(32°F to +95°F)

Physical

Weight (without cable) 0,614 kg

(1.354 lbs.)

Cable length 7,6 m (25 ft)

Mounting options • Transom

• Trolling motor shaft

(forward-looking)

• Trolling motor

(down-looking)

The relevant Declaration of conformity is

available in the product’s section at:

¼Note: The most up-to-date specications are

available at the product web site.

This product complies with:

• CE under EMC Directive 2014/30/EU

• the requirements of level 2 devices of the Radio

communications (Electromagnetic Compatibility)

standard 2017

Warning

The user is cautioned that any changes or modications not

expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

www.lowrance.com

www.simrad-yachting.com

*988-12333-001*

90 mm

3.5 “

50 mm

2.0 “

134 mm

5.3 “

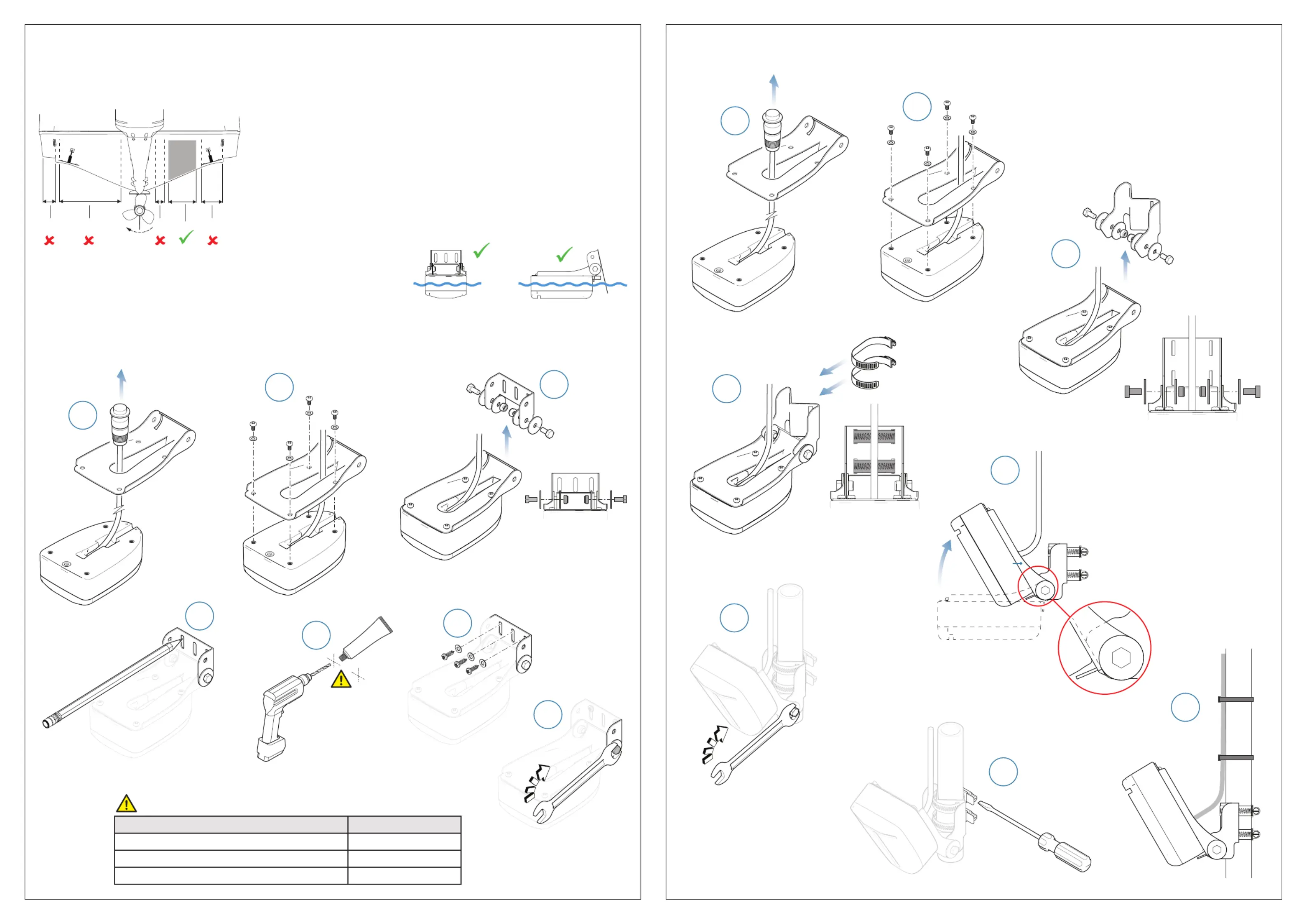

Trolling motor installation (down-looking)

Mount the transducer parallel

to the water surface.

Apply a marine high-

grade above- or below-

waterline sealant/

adhesive compound to

the pilot holes.

Torque to 7 Nm

(15 lbf in).

Tilt the transducer until the

bottom of the tranducer

bracket ( ) hits the bottom A

of the trolling motor shaft

bracket ( ).B

Mounting guidelines

Installation

¼Notes:

The transducer could lose bottom signal when the boat

is on plane.

The transducer will not work while it is out of the water.

Mirror the example if your boat has a

counterclockwise propeller rotation.

B EC D

Best mounting location:

A. undisturbed water ow

Avoid mounting:

B. behind planing strake

C. 1 m (3.3’) to port (left) of propeller

D. within 7.5 cm (3“) to starboard of propeller

E. close to trim tabs

Material #10 screw

Soft materials e.g. plywood Ø 3.7-4.0 mm (5/32”)

Hard materials e.g. berglass, acrylic, hardwoods Ø 4.1-4.7 mm (3/16”)

Aluminum Ø 4.2-4.5 mm (0.173”)

Recommended pilot holes for self-tapping screws:

Torque to 7 Nm

(15 lbf in).

Transom installation (down-looking)

Trolling motor shaft installation (forward-looking)
