Side 1/2

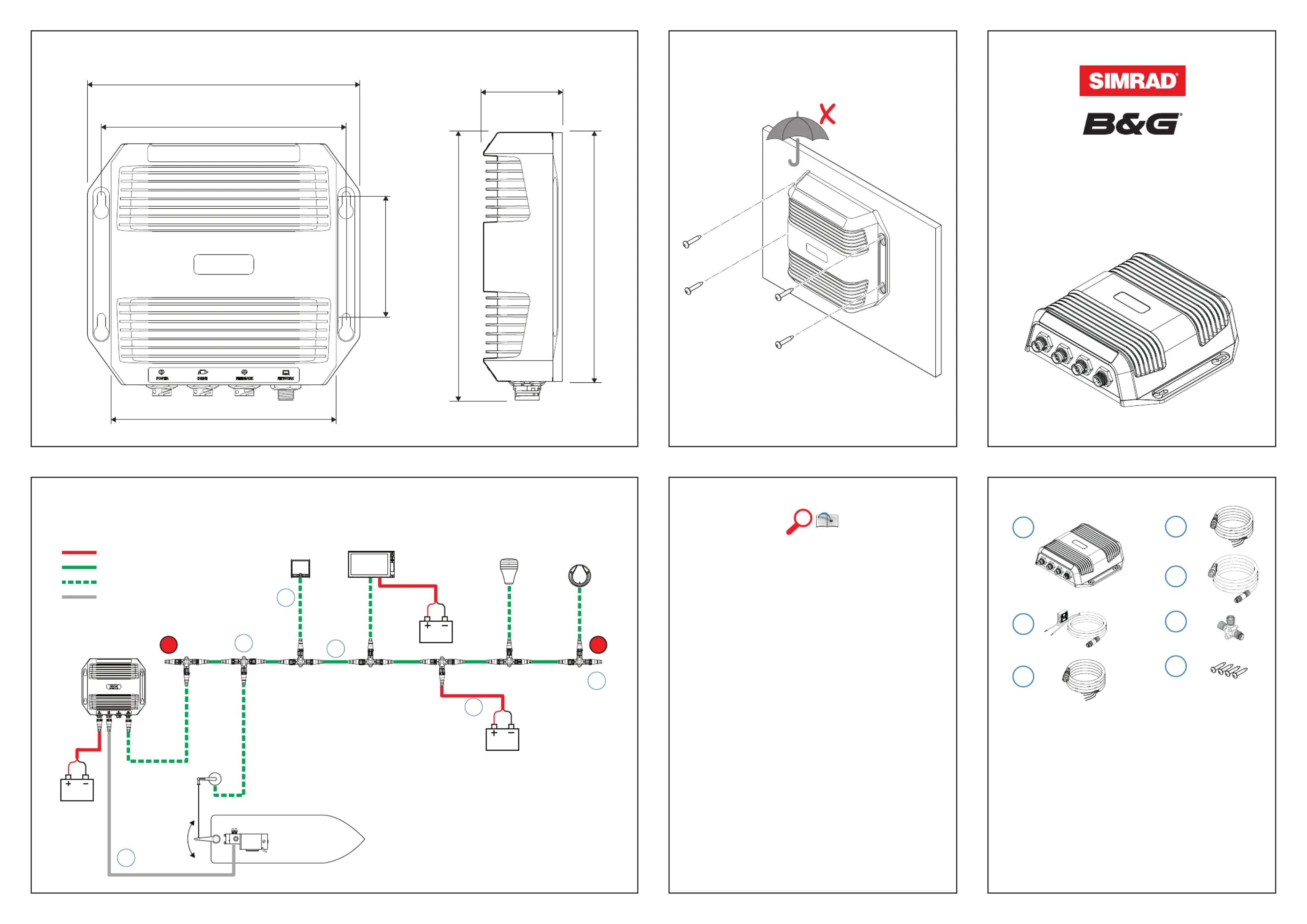

204.0 mm (8.1”)

183.0 mm (7.2”)

57.0 mm (2.2”)

180.0 mm (7.1”)

190.0 mm (7.5”)

169.0 mm (6.63”)

91.0 mm (3.6”)

Dimensions Mounting

Parts included

1. 1 x NAC™ -2 Autopilot Computer - IPX5

2. 1 x NAC™ -2 Power cable - 2 m

3. 1 x NAC™ -2 Drive cable - 2 m

4. 1 x NAC™ -2 Feedback cable - 2 m

5. 1 x NMEA 2000® Network cable - 0.6 m

6. 1 x Micro-C T-Joiner

7. 4 x Fixing screws

8. Warranty card & literature pack

NAC™ -2

INSTALLATION GUIDE

For setup instructions, commissioning guide,

product manuals, technical speciﬁcations,

certiﬁcates and declarations,

refer to the product website:

www.simrad-yachting.com

www.bandg.com

Trademark

®Reg. U.S. Pat. & Tm. Oﬀ, and ™ common law marks.

Visit www.navico.com/intellectual-property to review

the global trademark rights for Navico Holding AS.”

*988-11144-002*

System wiring example

AUTOPILOT

CONTROLLER

NMEA 2000® Backbone

Micro-C Drop cable

Micro-C Power cable

Micro-C T-Joiners

Micro-C Terminator, 120 Ohm

Drive cable

T T

MFD

12/24V DC

12V DC

NAC™ -2

COMPASS

GPS

SENSOR

DRIVE UNIT

RUDDER

FEEDBACK

Power

NMEA 2000® Backbone

Micro-C Drop cable

Rudder Drive cable

IPX5

Connectors & Wiring

12 V DC

MAIN

POWER

SWITCH

0.9 m (3 ft)

FUSE,

20 AMP 2 m (6 ft)

T T

RED

BLACK

YELLOW

BLUE

OPTIONAL

STEADYSTEER™

Key Function Color

1- 0V DC Black

2+ 12 / 24V DC Red

3AUTO/ STBY button or SteadySteer™

(Optional)

Yellow

4Blue

Power

Socket Plug

1. Power (12 / 24 V DC)) - Max 8A/12A Continuous/Peak

2. Drive (Drive unit) - Max 8A/12A Continuous/Peak

3. Feedback (Rudder reference - Resistive feedback units only)

4. Network (NMEA 2000®)

Resistive

Rudder feedback

unit

Key Function Color

1+ 5V DC Red

2Signal Yellow

3- 0V DC Black

Feedback

Socket Plug

Drive (Max 8A/12A Continuous/Peak)

Reversible pump Hydraulic linear drive Rotary drive Solenoid valve

Key Function Color

1Clutch GND/Solenoid Common Yellow

2Clutch Blue

3Motor_A Red

4Motor_B Black

Socket Plug

¼Note: Navico NMEA 2000® Rudder feedback units should be connected directly to the NMEA 2000 backbone.

Helm-1 Combined

Drive &

Rudder feedback

unit

Example 1 Example 2

2 3 4

Option 1 Option 2

12 V DC

MAIN

POWER

SWITCH

0.9 m (3 ft)

FUSE,

20 AMP 2 m (6 ft)

T T

RED

BLACK

YELLOW

BLUE

OPTIONAL

AUTO/STBY

BUTTON
