Sensor Setup Guide
Sensor Setup Guide
| 1
*988-11035-002*
This document describes the setup for the following sensors:
• Fluid Level Sensor – tank levels for fuel*, water, gray water, live well, oil, and black water
• Fuel Flow Sensor – flow rate measurements of fuel for gasoline powered boats
• Fuel Data Manager – fuel used data from fuel flow messages it receives from up to three
NMEA 2000 compatible engines
• Temperature Sensor – temperatures for water*, outside, inside, engine room, cabin, live well,
bait well, refrigeration, and heating system
• Thru-Hull Temperature Sensor - temperatures for water*, outside, inside, engine room, cabin,
live well, bait well, refrigeration, and heating system
• Speed Sensor – boat speed
• Pressure Sensor – pressure data: Engine Boost Pressure, Engine Oil Pressure, Engine Water
Pressure*, Transmission Oil Pressure and Pitot Speed
* Sensor is pre-configured to display this information.
¼Note: The sensor must be installed and connected to the NMEA 2000 network. For installation
and connection information, refer to the installation guide for the sensor.
After the sensor is connected, you can display sensor data. For more information, refer to your
display operating manual.
Sensor Setup
Use the Device Information dialog to set the device name, configure, view sensor data, and
for some sensors calibrate and set alarms.

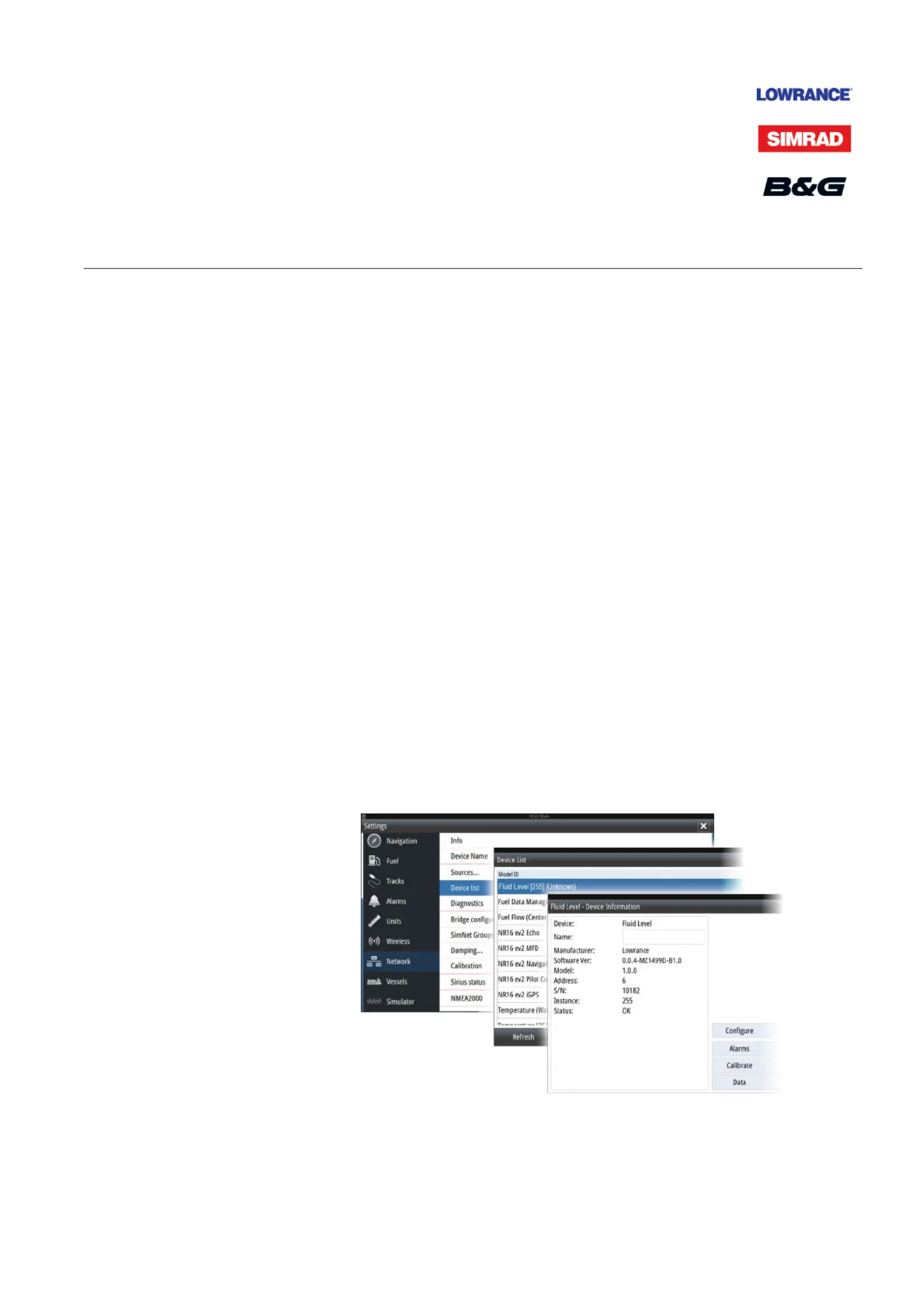

Select the sensor in the Device List to display the sensor Device Information dialog. The
following example shows selecting the Fluid Level sensor from a Simrad NSS Evo2.
2 | Sensor Setup Guide
Conguration
Select the Configure button in the Device Information dialog to open the configuration
dialog.
Use the configuration dialog to configure specifics. For example, use the Fluid Level – Device
configuration dialog to specify the:
• Tank (1, 2, 3, 4, or 5)
• Fluid type
• Size of the tank
• Instance - the Instance is determined by the configuration process and should not require
user adjustment, except in the case of the Fuel Data Manager. The Fuel Data Manger can work
with up to 3 engines. If more than 3 engines are mounted on the vessel, the instance of the
second Fuel Data Manager will need to be manually changed from 0 to 1.
• Unconfigure - sets all the values of the selected sensor to the factory default settings
Calibration
The Fluid Level and Fuel Flow sensors can be calibrated from the Device Information dialog.
Fluid Level sensor calibration
The factory calibration settings for the Fluid Level sensor should be adequate for most
applications, but if your tank has an irregular shape, your tank float uses a different resistance
range other than the U.S. standard of 240-33 Ohms, or if greater accuracy is needed,
calibration is recommended. We recommend starting calibration with an empty tank; you will
fill the tank to complete the calibration process.
Select the Calibrate button in the Fluid Level - Device Information dialog to open the
calibration dialog. Select the calibration point and then the fuel level for the point, as you fill
your tank. There are three calibration options:
• 2-point calibration - for rectangular or square-shaped tanks, where the capacity of the top
half of the tank matches the capacity in the lower half of the tank. If you start with an empty
tank;
1. calibrate the tank as: empty
2. fill the tank to full and calibrate it as: full.
• 3-Point Calibration - for tanks that vary in shape from the top to the bottom. If you start
with an empty tank;
1. calibrate the tank as: empty
2. fill the tank to full and calibrate it as: full
3. deplete the tank to 1/2 full and calibrate it as: half full.
• 5-point calibration - for tanks that vary greatly in shape from top to bottom. If you start
with an empty tank;
1. calibrate the tank as: empty
2. fill the tank to full and calibrate it as: full
3. deplete the tank to 3/4 full and calibrate it as: 3 Qtr. full
4. deplete the tank to 1/2 full and calibrate it as: half full
5. deplete the tank to 1/4 full and calibrate it as: 1 Qtr. full.
!
Warning: Care should be taken that the above mentioned calibration for each
2, 3 or 5-point calibration is performed as instructed and in the correct sequence.
Once a calibration method is started up, the process needs to be completed to all
points, or else it has to be re-done from the beginning.
