Side 1/2

*988-12731-001*

STEADYSTEER™

INSTALLATION GUIDE

For wiring details refer to the documentation for your autopilot computer.

Before the SteadySteer™ can be used, make sure that the proper autopilot setting

have been congured. Refer to the documentation for your autopilot computer.

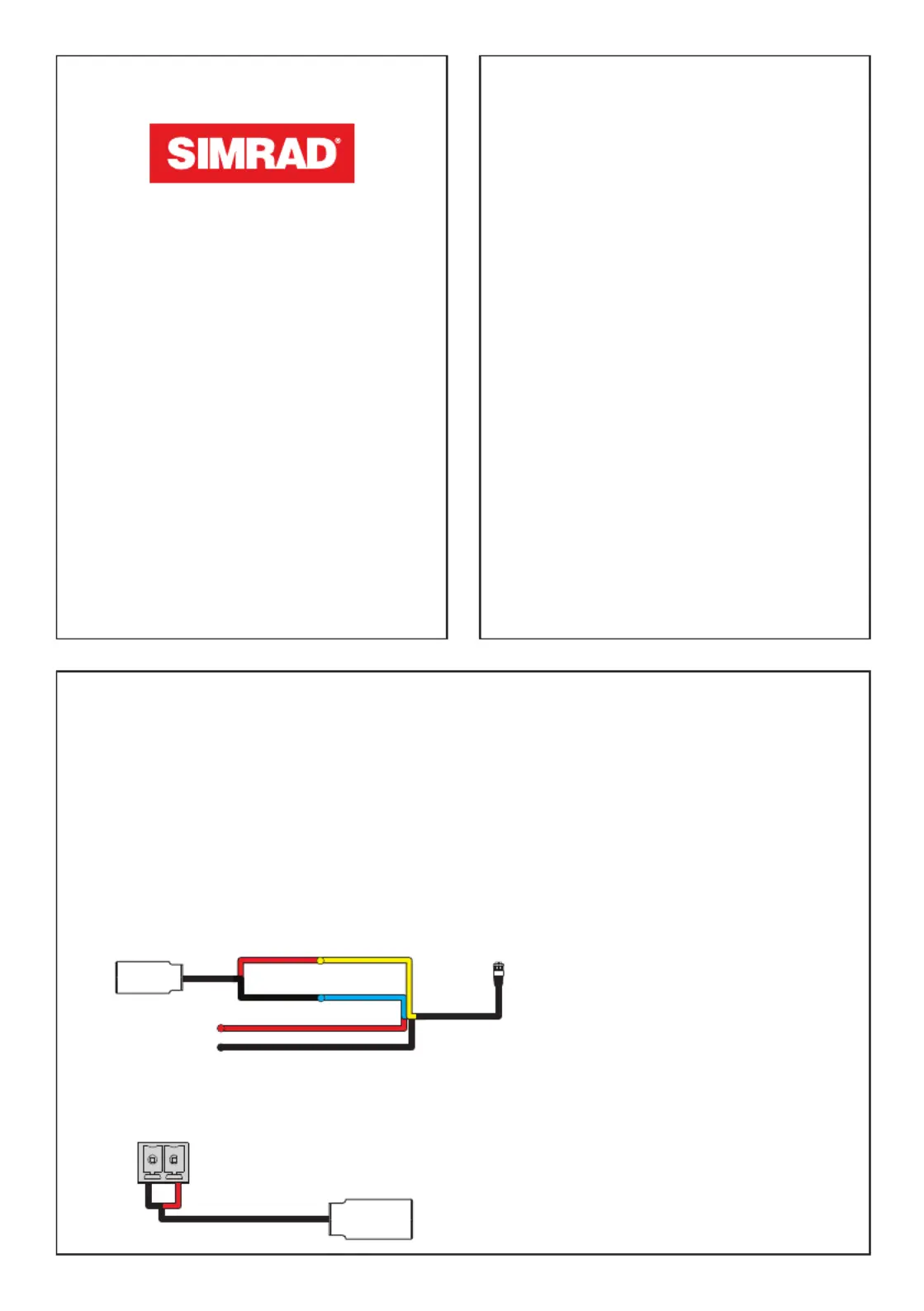

System wiring example NAC™ -2

System wiring example NAC™ -3

Wiring and conguration

Compliance statements

Europe

Navico declares under our sole responsibility that the

product conforms with the requirements of:

• CE under LVD Directive 2014/35/EU

Navico Logistics Europe B.V. Laan van Europa 450,

3317 DB Dordrecht Netherlands

United States of America

¼Warning: The user is cautioned that any

changes or modications not expressly

approved by the party responsible for

compliance could void the user’s authority to

operate the equipment.

Declarations

The relevant Declaration of Conformity is available

on the following websites:

• www.simrad-yachting.com

Trademark

®Reg. U.S. Pat. & Tm. O, and ™ common law marks.

Visit www.navico.com/intellectual-property to review

the global trademark rights for Navico Holding AS.”

SteadySteer™

ow switch

Mode

SysselRet

Black Red

SteadySteer™

ow switch

Power

connector

Power

input

Red

Black

Yellow

Blue

Installation

A SteadySteer™ (can

be installed either

on the starboard or

port hydraulic line.)

B Starboard line

C Return line

D Port line

E Helm 1

F Steering cylinder

G Pump

H Helm 2

A Mount horizontally

B Do not install the SteadySteer™ directly on the helm. Place a hydraulic hose

between the helm and SteadySteer™.

C Mount with a distance of minimum 60 cm (2 ft) from disturbing magnetic

inuences, such as engines, ignition cables, or other large ferrous metals

objects.

Single Helm

Dual helm

Dimensional drawing

A B

Min. 20 cm

(7.90”) C

Min. 60 cm

(23.63”)

31.25 mm

(1.23”)

52.4 mm

(2.06”)

13.8 mm

(0.54”)

3 m

(10’) 1/4” NPT female

(both sides)

25.4 mm

(1.00”)
