*988-10923-001*

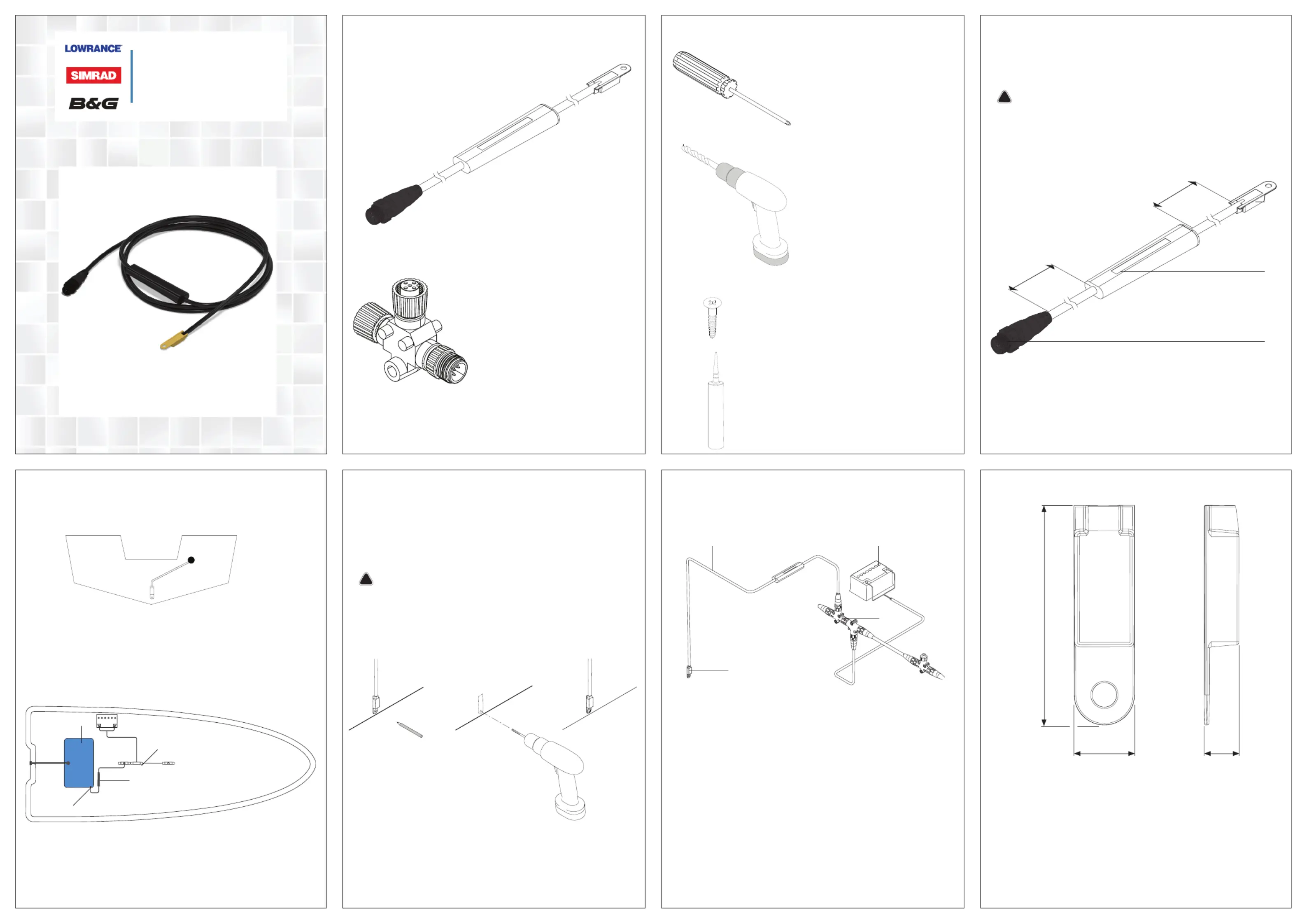

What’s in the box

Temperature Sensor

Installation Guide

Tools required Overview

Plan the installation

Example of installation

Install the Temperature Sensor

After determining the location, use the temperature sensor as

a template and mark the hull for the screw’s pilot hole. Route

the Temperature sensor and cable to the mounting location. If

routing through the transom, drill a 3/4” hole to accommodate

the Temperature Module.

Attach the Temperature sensor to the hull with one #8 stainless

steel screw and seal the screw (not included) with the below-

waterline sealant compound.

Screwdriver

Drill with 3 mm (1/8” ) and 19 mm

(3/4”) drill bit

1 #8 Stainless steel screw 19 mm

(3/4” ) long

High quality marine grade above/

below waterline caulking compound

The Temperature Sensor converts analog temperature data to

NMEA 2000 data format.

You should read all of the installation instructions

before proceeding. Decide where to install all components

before drilling any holes in your vessel.

Make sure the Processing unit is inboard and not left

exposed on the open transom.

Other parts required

Temperature Sensor

NMEA 2000 T-Joiner

A Temperature sensor

B Processing unit

C NMEA 2000 connector

A Temperature sensor

B Processing unit

C NMEA 2000 CAN bus backbone

D Livewell

The temperature sensor can be mounted in any location where

you want temperature to be monitored. The most common

applications are transom mounts — to measure surface water

temperature — or in a livewell (when mounting in livewell,

mount as far from pump as possible).

Transom view

Livewell mount

38 mm (1.5”)

10 mm (0.4”) 6 mm (0,2”)

46 cm

(18”)

3 m

(10’)

Dimensions

Connect the Temperature Sensor to the network

A Temperature sensor cable 3 m (10 ft)

B Temperature Sensor

C NMEA 2000 CAN bus backbone

D 12 V DC Power supply. Connect via a switch and 5 amp

fuse

Specications

Temperature Range between -20 and 80 degrees Celsius.

PGNs transmitted

59392 – ISO Acknowledgment

60928 – ISO Address Claim

126996 – Product Information

65285 - Temperature with Instance
