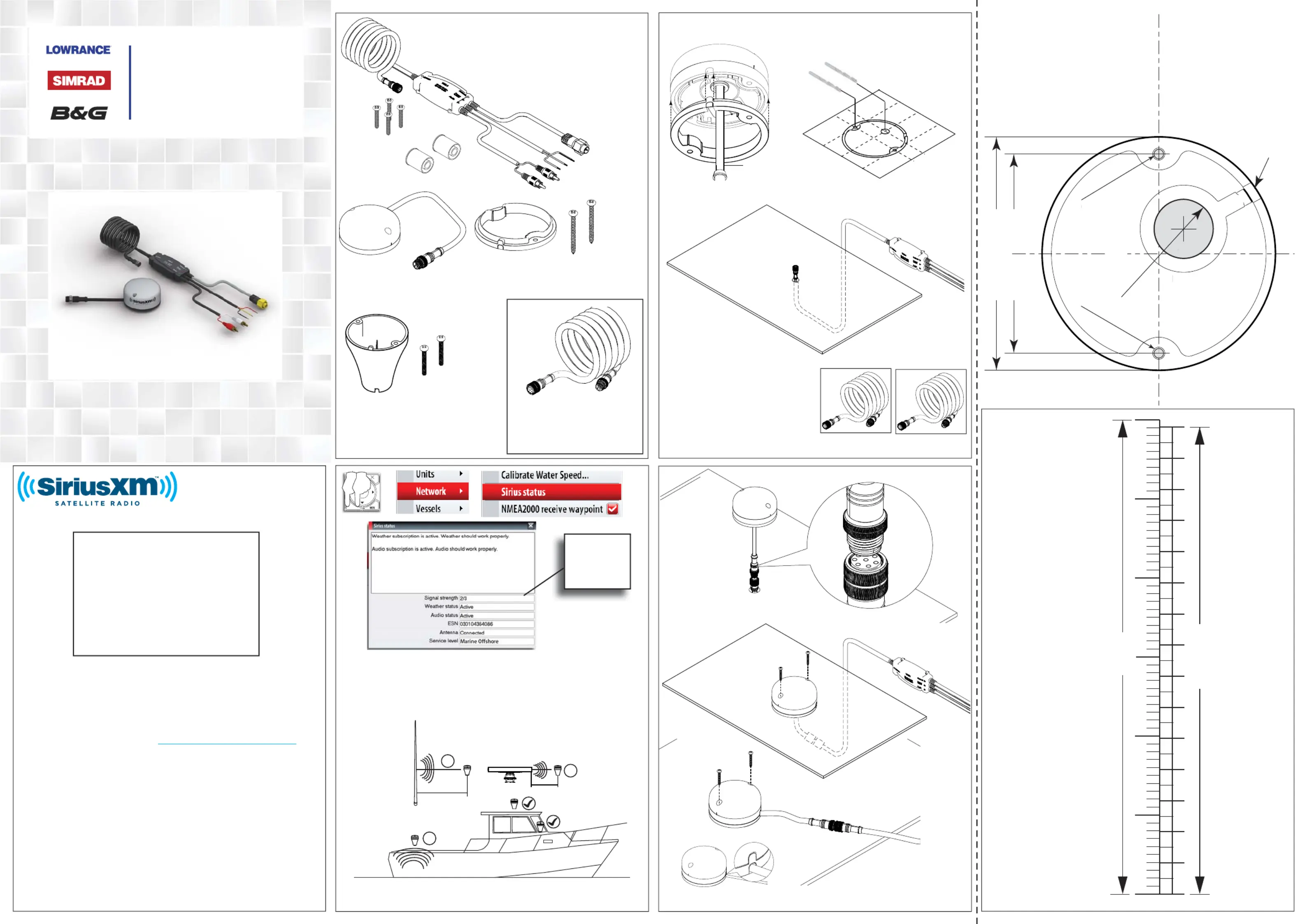

Side 1/2

(

64.0 mm (2.52")

75.0 mm (2.95")

Ø 3.0 mm (Ø 0.12")

Ø 19 mm (Ø 0.75")

Surface mount cable exit

Check dimensions before drilling

150 mm

3 mm

19 mm

WM-3

Installation Guide

English

Place the ESN sticker for your WM-3 antenna in the box below.

Place the ESN sticker here

Supplied Parts Drill Template

Activating the WM-3

You must purchase a SiriusXM subscription to use the WM-3 mod-

ule. Individual weather and audio subscriptions are available. You

can also purchase a subscription that includes both weather and

audio.

For more information refer to

www.siriusxm.com/marineweather

To activate a SiriusXM subscription:

1. After the WM-3 module is installed, locate the label on the front

ﬂ ap of the WM-3 carton

2. Record your ESN number (SIRIUS ID) and contact SiriusXM at 855-

796-9847. SiriusXM Marine Weather service can only be activated

by phone. A credit card will be required for subscription to the

SiriusXM service.

3. Access Sirius status screen to make sure subscription (Weather

Status, Audio Status, or both) is listed as Active. If your account is

inactive, contact information for Sirius will be displayed.

4. Check the SiriusXM signal level (1 is weak; 3 is excellent).

Electromagnetic Interference

0.5 m (20”) Min

2 m (6 ft) Min

RADAR

Radio Transmitter

Antenna Mounting Location

1/3 Weak

2/3 Good

3/3 Preferred

Run the antenna cable from

the module to the antenna

location. Extend using optional

extension cable 10 m (33 ft)

Max 2 (p/n 000-11095-001)

Optional extension cable 10

m (33 ft) (p/n 000-11095-

001)

300 mm (12”)

Surface Mount the Antenna

WIN

(Screen-shots taken from Simrad MFD)

*988-10445-001*

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

2 m (6.5 ft)

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

Status LED Status Comment

Power Solid blue External power on

Oﬀ No power

Antenna

Solid yellow Antenna Receiver connected

1 x blink yellow No SXM signal

Fast blink yellow Antenna Receiver failure

Oﬀ Antenna Receiver not connected With power applied

Network Solid green Link active

Data blink green Data activity

Audio

Solid orange Normal operation

Fast blink orange SiriusXM module failure

Oﬀ Channel silent e.g. channel 0 or muted

30 cm (12”)

Power

Tri-Cable Splitter Mounting

Ethernet

LEDs

Run the antenna cable from the

module to the antenna location. Ex-

tend using optional extension cable

10 m (33 ft) Max 2

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

89.0 mm (3.50")

63.5 mm (2.50")

14.5 mm (0.57")

19.0 mm (0.74")

40.0 mm (1.57")

30.0 mm (1.18")

34.5 mm (1.36")

10 m (33 ft)

2 m (6.5 ft)

25.4 mm (1”)

35.0 mm (1.37”)

5 mm (0.19”)

109.5 mm (4.31")

77.0 mm (3.03")

75.0 mm (2.95")

surface mount gasket

Dimensions

Speci cations

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

2 m (6.5 ft)

BATTERY (12-24V DC)

(Lowrance 12 V DC only)

Accessories Wake Up line

RED

FUSE

BLACK

YELLOW

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

2 m (6.5 ft)

BATTERY (12-24 VDC)

Lowrance 12 V DC Only

Accessories wake up line

RED

FUSE

BLACK

YELLOW

Red

Black

Multifunction Display

Yellow

WM-3

Weather Module

Tri-Cable Splitter

12-24Vdc

Power

Antenna

Network

Audio

2 m (6.5 ft)

Structure Scan Module

Multifunction Display

Note: Male Ethernet cable

cannot be extended

Note: Extend audio with locally available

female to male RCA extension cables.

Use provided RCA protector caps if not used

NEP

Pole Mount

30 cm (12”)

Power: For operation on both nominal 12 and 24 VDC

+9 min to +32 VDC max Input

Internal self-resetting fuse

Power con-

sumption:

Less than 3W

Antenna: SiriusXM Antenna. 10m (33 ft) cable molded in

to the WM-3 Module. Antenna cable can be

extended using optional extension cable 10 m

(33 ft) (p/n 000-11095-001) Max. x 2

Audio: Connects to stereo sound systems with ana-

log audio inputs. RCA connectors (Male)

Thermals: Operating: -15°C to 55°C (5°F to 131°F)

Non-operating: -30°C to +85°C (-22°F to 185°F)

FCC: This device complies with Part 15 of the FCC

Rules. Operation is subject to the following

two conditions: (1) this device may not cause

harmful interference, and (2) this device must

accept any interference received, including

interference that may cause undesired oper-

ation.

Vibration: IEC 60945 paragraph 8.7

Water Ingress: EN 60529 IPX7

Spares

000-11103-001 WM-3 Antenna Receiver

000-11104-001 WM-3 Tri-cable Splitter

000-11105-001 WM-3 Install Kit

Audio
