INSTRUCTION MANUAL

The digital pitch gauge is designed for application in model helicopters and serves to measure

the rotor blade pitch value.

The built in digital gyroscopic sensor is capable of detecting pitch angle, with result displayed

through LCD screen, providing a simple and precise way of measuring pitch angle.

- -1

DPG-020 Micro Digital Pitch Gauge

Large LCD for easy reading

Measure up to 450 size helicopter

Fast and accurate measurement

Zero function

Auto rotating display

Auto power-off (Power shuts down after 5 minutes without any movement)

FEATURES

Power and

Zero Button

LCD Display

Blade Clamp

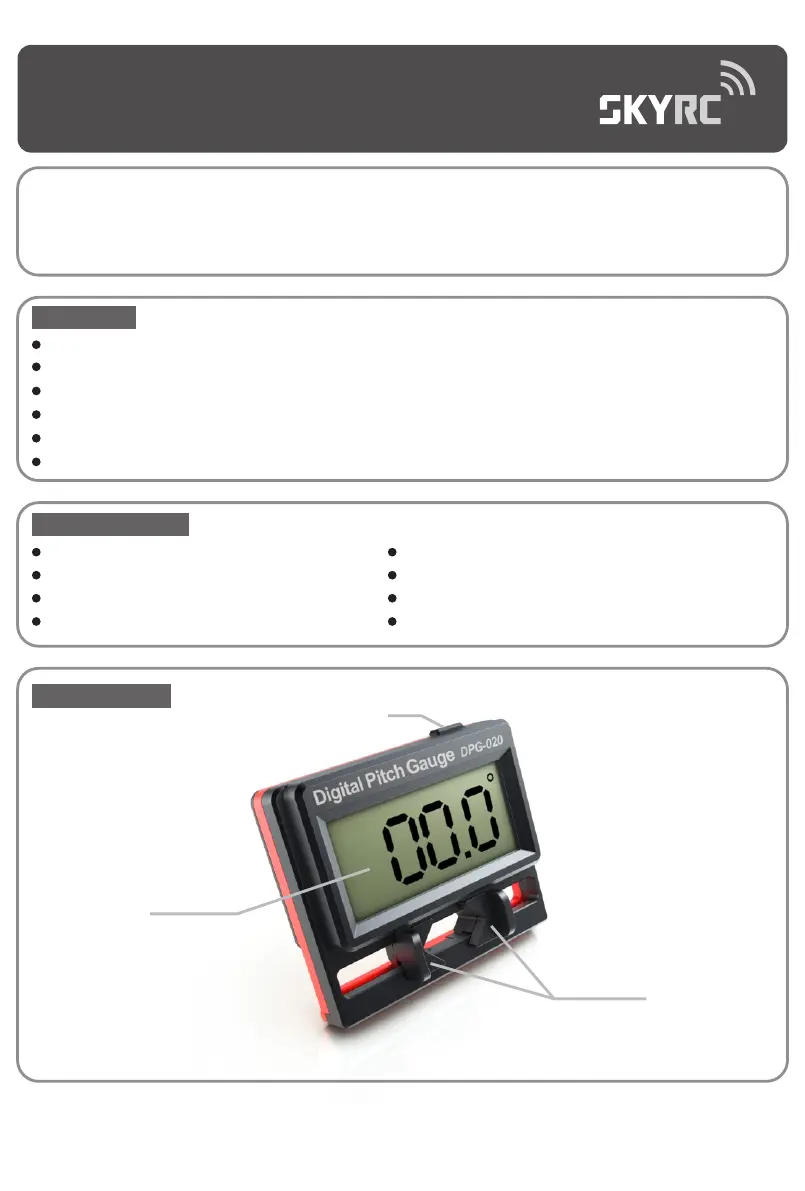

ILLUSTRATION

SPECIFICATIONS

Body Dimension

Suitable blade width

Detectable pitch range

Temperature

Resolution

Current consumption

Battery

Weight (including battery)

44x37.2x14mm

15mm~35mm

±90°

0~40°C

0.1°

4.5mA

CR2032 Lithium X1

20g

Digital Pitch Gau

ge DPG-020

- -2

HOW TO USE

Press “POWER” button to turn on the power. For correct pitch measurements, DPG-020

digital pitch gauge must be zeroed before being used. Press “POWER” button once to zero

the gauge. Please refer to the below instruction to understand how to use DPG-020. After

used, Press “POWER” button for about two seconds to turn off.

HOW TO CHANGE BATTERIES

Low battery could contribute to reduced screen brightness and abnormal startup. Please

replace battery should this occurs.

Open the battery compartment by removing the four screws at the back of the pitch gauge

with a philips-head screw driver.

Remove the battery compartment cover.

Insert / replace one CR2032 batteries while observing the correct polarity.

Close the battery compartment and fasten it with the four screws.

Should the pitch gauge display abnormal behavior after accidental shock or impact, proceed

to remove and re-install battery to reset the device.

Manufactured by

SKYRC TECHNOLOGY CO LTD ., .

www skyrc com. .

RoHS

7504-0379-01

Place the DPG-020 horizontally

leveled with top of helicopter

frames.

Press “POWER” to zero the

gauge.

ZERO THE GAUGE

Mount the DPG-020 on main

blade to measure the pitch.

MEASURE THE PITCH

Digital Pitch Gauge DPG-020

We guarantee this product to be free of manufacturing and assembly defects for a period of one year

from the time of purchase. The warranty only applies to material or operational defects, which are

present at the time of purchase. During that period, we will repair or replace free of service charge for

products deemed defective due to those causes.

For any repair or replace service, please contact your dealer in the first instance, who is responsible for

processing guarantee claims. This warranty is not valid for any damage or subsequent damage arising

as a result of misuse, modification or as a result of failure to observe the procedures outlined in this

manual.

WARRANTY AND SERVICE
