Side 1/4

1. ESC Setting

Connect the Program Box as the diagram above, turn on the ESC and do as follows,

Press key to enter different programmable items, press and key to browse all

the options and press key to confirm your selection and then the screen will go back to main

programmable menu.

When the screen displays the programed item, you could press “ESC” key to main programmable menu

and start to program next item.

Note: The programmable items differs depends on 1/10th, 1/8th and 1/5th ESC. Concerning to screen

above, we take SkyRC Toro 1/10th 120A ESC(SK-300044) as example.

Sending to ESC

Please waiting..

Red power wire

(battery positive)

Battery

Pack

Black power wire

(battery negative)

Power

Switch

2 /6

SPECIFICATIONS

Input Voltage (ESC Setting): 6-10VDC

Input Current (ESC Setting): 500mA

Idle Current (ESC Setting): <20mA

Operating Temperature: 0-40ºC

Storage Temperature: -10 — 60 ºC

Operating Humidity: 10 - 90%RH

Storage Humidity: 20 - 75%RH

Protection Class: IP20

Dimension: 85x48.5x11.8mm

Weight: 40g

APPLIATION

There are four keys on the front panel,

: You could press this key to enter into the referred menu or confirm your selection.

And : You could press these two keys to go to previous page and to go to next page or

change the value of referred item.

: You could press this key to go back to previous menu.

ESC Setting

Battery Monitor ENTER Connecting ESC

Please waiting..

Running Mode

Motor Direction

ENTER

ESC

ENTER

Sending OK!

ENTER

Forward/Brake*

Forward/Brake/R

ENTER

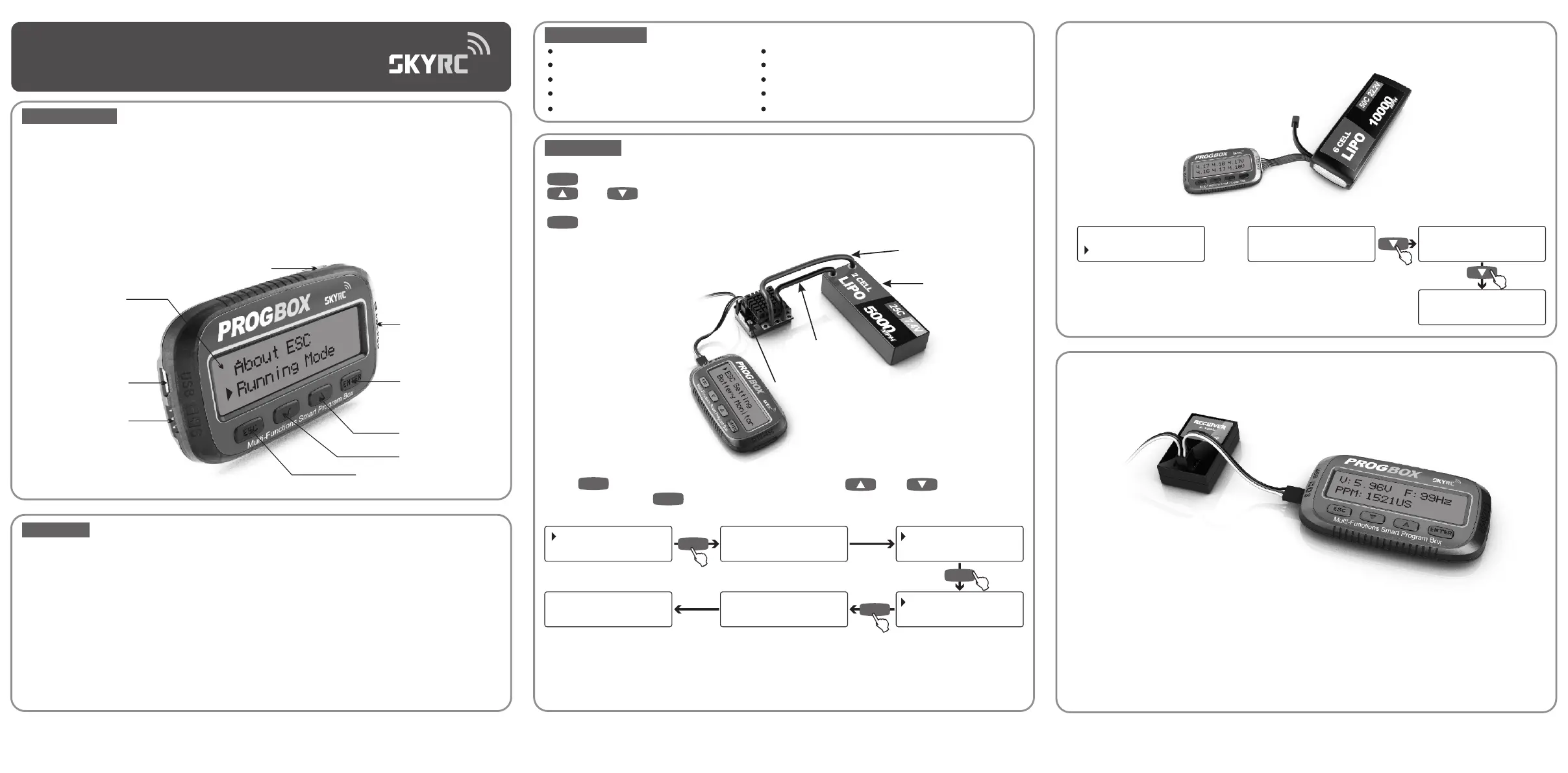

INSTRUCTION MANUAL

PROGBOX

Thank you for purchasing SkyRC Program Box (SK-300046). Please read this entire operating manual

completely and attentively as it contains important information. SkyRC Program Box is a very

sophisticated electronic device that controlled by high performance microprocessor.

With compact size and easy operation, SkyRC Program Box offers six-in-one functions:

INTRODUCTION

FUNCTION

SK-300046

1 / 6

ESC Setting: It can work as a Program Box, an individual device which can be used to programming

the ESC, and the option of each parameter is displayed on the LCD screen;

LiPo Battery Monitor: It can check the total cell number, total voltage, each cell voltage, highest voltage

and lowest voltage and the voltage difference between the highest voltage and lowest voltage.

Input PPM Signal Monitor: It can check the output voltage from the receiver and the receiver's PPM

signal width and frequency.

Servo Tester: It can check the input voltage, servo travel position and peak current.

Motor KV/RPM Tester: It can check the motor KV, RPM and input voltage.

It can also work as SkyLINK, an USB adaptor which can be used to link the ESC with a PC, and the

user can update the firmware of the ESC or programming the ESC by SkyLINK software on PC.

Motor Sensor

USB to PC

I/O Connector

Escape Key

Down Key

Up Key

Enter Key

Battery Balance

Connector

LCD Screen

16Chr. X 2 Lines

1. ESC Setting

2. LiPo Battery Monitor

3. Input PPM Signal Monitor

4. Servo Tester

5. Motor KV/RPM Tester

6. PC Interface - Link ESC to PC

3 / 6

3. PPM Monitor

It can check the output voltage from the receiver and the receiver's PPM signal width and frequency.

Connection

Connect the Program Box with the ESC, receiver as the diagram above, and turn on the ESC and the

transmitter.

Please note that the Program Box must be inserted in to the Throttle Channel and the ESC can be

inserted to any channel of the receiver as it is used to supply power to the receiver.

When it connects the battery, ESC, receiver, it could check the output voltage from the receiver and

the receiver's frequency and the neutral pulse position.

At this time, hold full throttle and hold full brake to check the receiver's PPM signal width.

4.17 4.18 4.17V

4.16 4.17 4.18V

MIN:4.16V

MAX:4.18V

Delta:0.02V

Total:25.03V

ESC Setting

Battery Monitor

Connect the Program Box and the battery as the diagram above, monitor battery voltage as follows,

2. Battery Monitor

It could check the total cell number, total voltage, each cell voltage, highest voltage and lowest

voltage and the voltage difference between the highest voltage and lowest voltage.

LiPo Battery Connection Diagram
