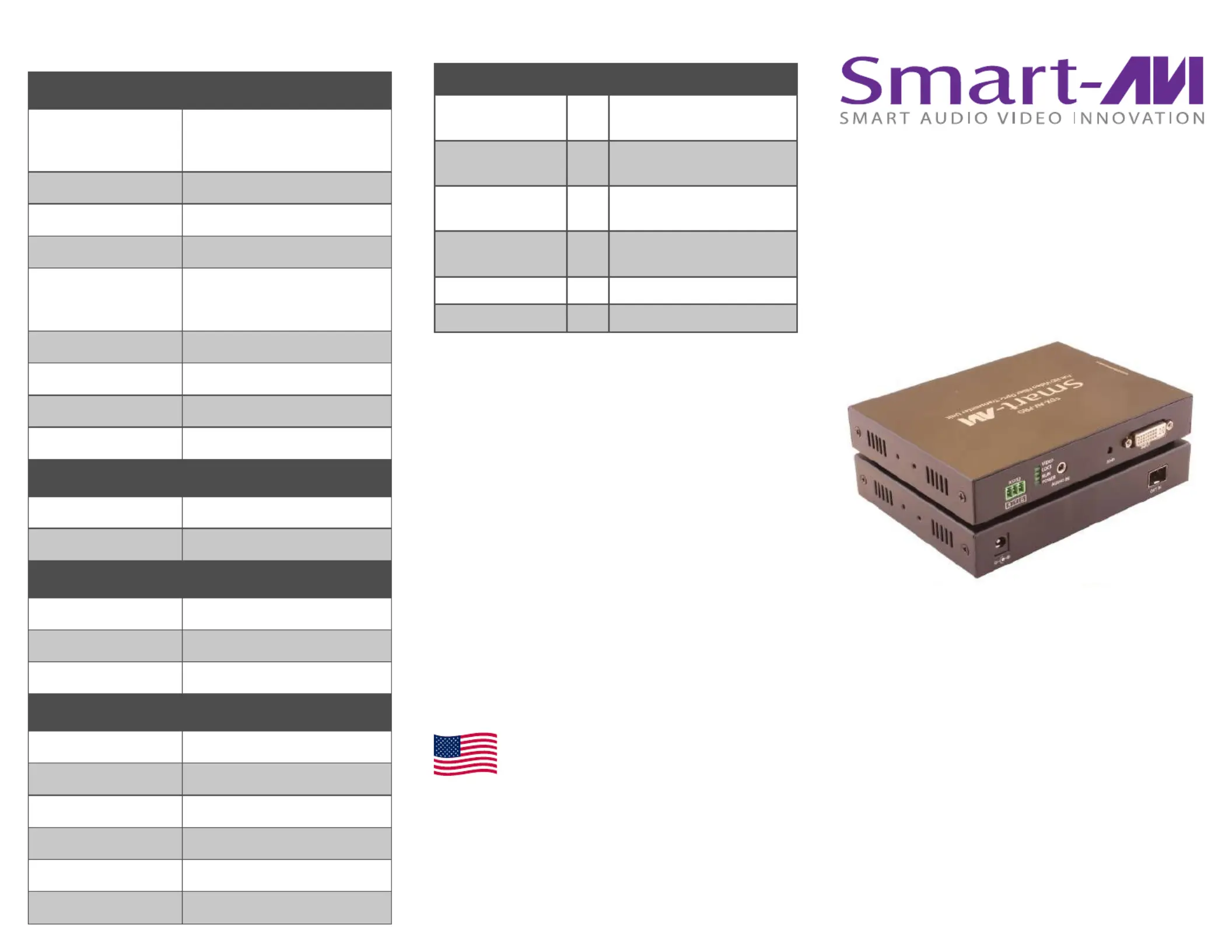

Side 1/2
HD DVI-D
Fiber Optic Extender
EXTENDS HD AUDIO-VIDEO
SIGNALS UP TO 10 KM VIA
A SINGLE FIBER OPTIC CABLE
Quick Start Guide
VIDEO
Format DVI-D Single Link
Maximum pixel clock 165 MHz
Max Data Rate 6.75 Gbps
Resolution Up to 1080p (1920 x1080 @ 60Hz)
Fiber Interface LC Connector
Fiber Type Single-mode ber
Wavelength Single-mode 1310 nm
Transmission
Distance 10 km
AUDIO
Interface 3.5 mm earphone seat
Signal Type Stereo Audio
RS-232
Signal Direction Unidirectional
Max Baud Rate 115200bps (Self-adaptive)
Data Bits 8
OTHER
Power Adapter 12VDC1A
Weight (TX+RX) 1.8 lbs.
Dimensions (Each) 1.125” H x 6” W x 4.75”D
Approvals UL, CE, ROHS Compliant
Operating Temp 32 to 131°F (-5 to 70 °C)
Operating Humidity 5 to 90% (no condensation)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
FDX-AVPRO
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
FDX-AVPRO-TX 1 DVI-D Fiber Optic Extender
Transmitter
FDX-AVPRO-RX 1 DVI-D Fiber Optic Extender
Receiver
FDX-AVPRO
TRANSCEIVER-TX 2Fiber Optic Transceiver
Transmitter (Blue handle)
FDX-AVPRO
TRANSCEIVER-RX 2Fiber Optic Transceiver
Receiver (Yellow handle)
PS12VDC1A 2 Power Adapter
1 Quick Start Guide
INTRODUCTION
Ideal for long-range HD signal transmission and
realtime AV extension, the FDX-AVPRO is the premiere
ber optic extender solution in our catalogue. Built
with speed, quality, and security in mind, the
FDX-AVPRO sends HD DVI-D video and stereo audio
signals across distances as vast as 10km without
interference or risk of interception.
The FDX-AVPRO features excellent video resolutions
up to 1080p (1920x1080 @ 60Hz), stereo audio
support, and extends RS-232 signals. Send HD video
content across vast distances with complete security;
ber optic extension is prized in government and the
private sector for its speed, safety, and efciency.
Fiber optic connections are virtually impenetrable, so
malicious signal tapping is never an issue. Powerful
and easy-to-use, the FDX-AVPRO keeps long-distance
transmission secure.
FEATURES
• Top Signal Quality at Maximum Extension (10km)
• Superior Image Quality at all Resolutions
• Video Resolutions up to 1080p (1920x1080 @ 60Hz)
• Supports DVI-D
• RS-232 Signal Extension
• Plug-and-play ready
• Secure design and casing
APPLICATIONS
• Corporate presentations
• Educational presentations
• Call centers
• Industrial (remote/long-range communication)
• Information terminals/kiosks
• Transportation installations (airports, train stations,
bus hubs, etc...)
• Exceptional remote AV transmission
• Medical supervision (from long-distance)
• Remote recording (for audio and video content)
• Entertainment/sport venue AV
NOTE: Complete the learning EDID section below rst.
Learning the EDID settings from the DVI-D monitor.
1. Nothing should be connected to the FDX-AVPRO-TX.
2. Connect the DVI-D monitor to the FDX-AVPRO-TX.
3. Press and hold the EDID button on the back of FDX-AVPRO-TX.
4. Connect the supplied power adapter and power on the FDX-AVPRO-TX. (The Video LED on the back should blink 2 times
and become solid).
5. Release the EDID button and disconnect the power adapter and the DVI-D monitor from the FDX-AVPRO-TX.

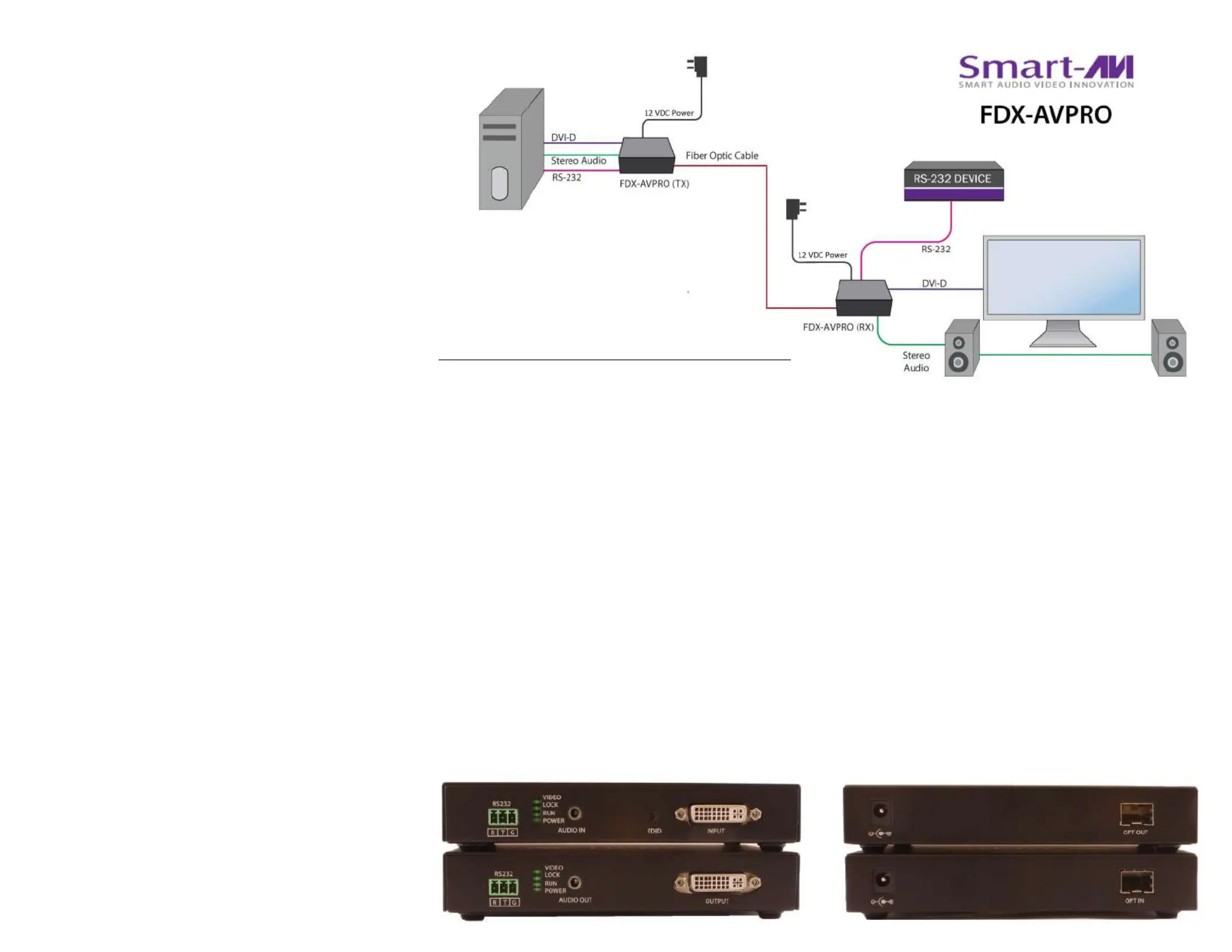

Completing the Installation.
1. Connect the DVI-D monitor to the FDX-AVPRO-RX.
2. Connect a DVI-D source to the FDX-AVPRO-TX.
3. Connect a ber optic cable to the FDX-AVPRO-TX and connect the other end
of the cable to the FDX-AVPRO-RX.
4. Optionally connect a stereo audio source to the FDX-AVPRO-TX
5. Optionally connect speakers to the FDX-AVPRO-RX.
6. Optionally connect a computer via RS-232 cable to the FDX-AVPRO-TX.
7. Optionally connect an RS-232 cable from an RS-232 device
to the FDX-AVPRO-RX.
8. Power on all signal sources and
the DVI-D monitor.
9. Connect the supplied power adapters and
power on the FDX-AVPRO-TX
and the FDX-AVPRO-RX
FDX-AVPRO-TX FRONT
FDX-AVPRO-TX BACK FDX-AVPRO-RX BACK
FDX-AVPRO-RX FRONT
HARDWARE INSTALLATION
POWE
RUN
LOC K
VIDEO
AUDIO IN
VGA IN
RS232
FDX-AVPRO
Transmitter
POWE
RUN
LOC K
VIDEO
AUDIO IN
VGA IN
RS232
FDX-AVPRO
Receiver
6.2 miles
VGA IN
VGA OUT
AUDIO IN
AUDIO OUT
FIBER
RS232
