Smart-AVI SFXPRO-2P Manual

Smart-AVI AV forlænger SFXPRO-2P

Læs gratis den danske manual til Smart-AVI SFXPRO-2P (2 sider) i kategorien AV forlænger. Denne vejledning er vurderet som hjælpsom af 38 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 19.5 anmeldelser. Har du et spørgsmål om Smart-AVI SFXPRO-2P, eller vil du spørge andre brugere om produktet?

Download PDF

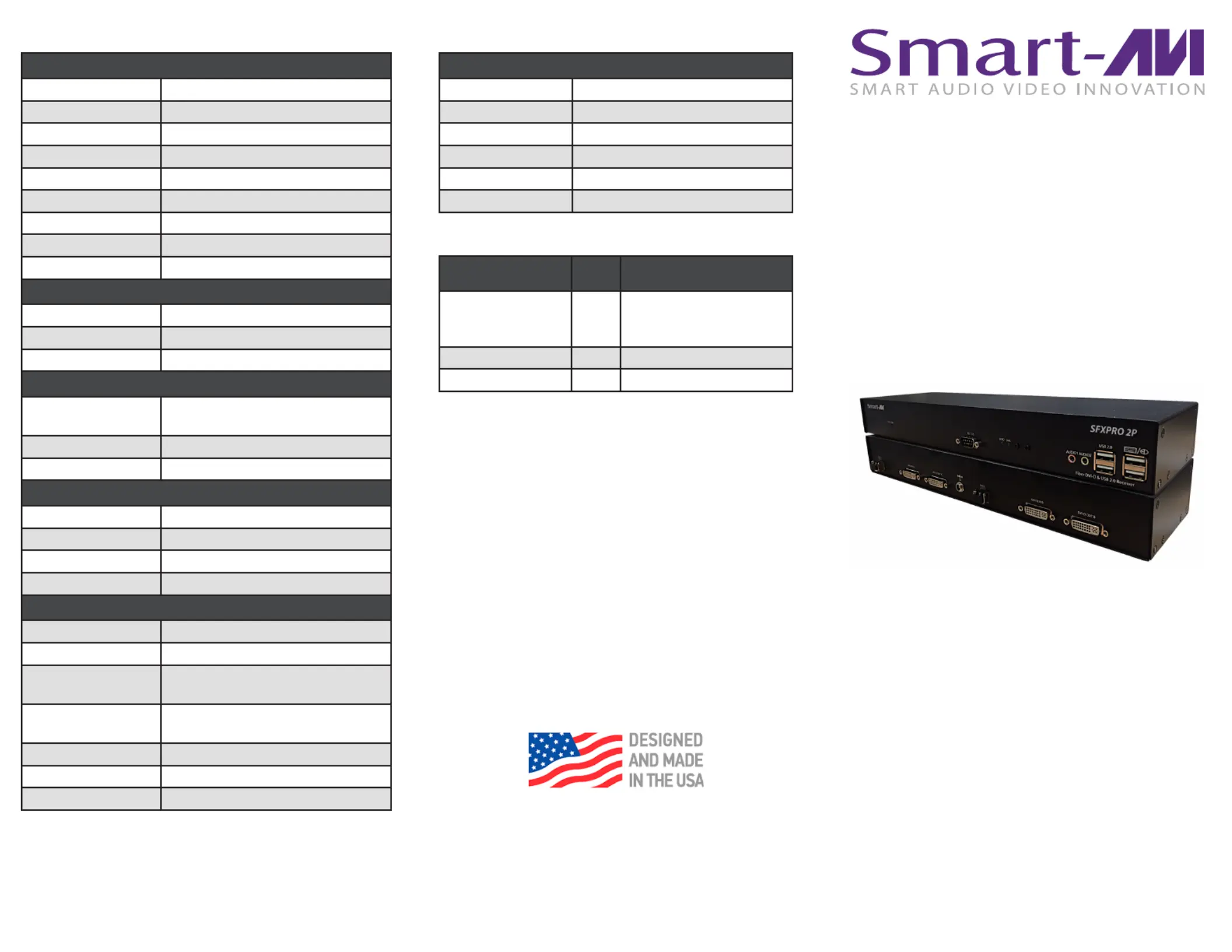

Side 1/2
2-Port DVI-D & USB 2.0
Fiber Extender
DUAL DVI-D, STEREO AUDIO,
USB 2.0/1.1 AND RS-232
MULTIMODE FIBER EXTENDER
UP TO 1,500 FT
Quick Start Guide
VIDEO
Format DVI-D Single Line
Maximum pixel clock 165 MHz
Input interface (TX) (2) DVI-D 29-pin female
Output interface (RX) (2) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @ 60 Hz
DDC 5 volts p-p (TTL)
Input equalization Automatic
Input cable length Up to 20 ft
Output cable length Up to 20 ft
RS-232
Input interface (TX) (1) DB9 (Female)
Output interface (RX) (1) DB9 (Female)
Speed Up to 115 Kbps
USB
Signal type EHCI (USB 2.0)
and OHCI/UHCI (USB 1.1)
Input interface (TX) (1) USB type B (female)
Output interface (RX) (4) USB type A (female)
AUDIO
Signal type Stereo audio
Bandwidth 15 MHz, 0 dB
Impedance 10 kOhm
Connector 3.5 mm stereo mini female
OPTICAL
Fiber type Duplex, multi mode
Connector type Duplex LC
Wavelength 1310 nm/1550 nm
(dual wavelength)
Data rate 2x2.5 Gbps
(2.5 Gbps per single wavelength)
Transmission power -5 dB min
Receiver sensitivity -21 dB max
Distance 500 m max
OTHER
Power Supply Internal 100-240 VAC
Dimensions 17” W x 1.7” H x 7” D
Weight 8 lbs
Operating temp. 32-131 °F (0-55 °C)
Storage temp. -4-185 °F (-20-85 °C)
Humidity Up to 95% (non-condensing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
SFXPRO-2P
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
SFXPRO-2P-M-S 1
Dual DVI-D, Audio, USB
and RS-232 Multimode
Fiber Extender.
CCPWR06 2 6’ Power Plug Cable
Quick Start Guide 1
OVERVIEW
The SFXPRO-2P is a perfect solution for extending two
DVI-D and USB 2.0 signals from a computer in a remote
location up to 1,500 feet away. It supports high-resolution
DVI-D video and all USB device types from high-speed
web cams, hard drives, printers, scanners, audio devices,
touch screens, digital cameras and game controllers. The
SFXPRO-2P is immune to electromagnetic interference,
making it ideal for use in situations where there is
considerable interference. The SFXPRO-2P is also very
secure because it’s ber optic signals cannot be easily
tapped.
FEATURES
• Top signal quality at maximum extension over
multimode ber (1,500 ft) plug type LC
• DVI-D Video Resolutions up to 1920 x 1200 WUXGA at
60 Hz
• DDC Learning
• Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps)
data rates
• Supports all USB device types transparently (no
emulation from high-speed web cams, hard drives,
printers, scanners, audio devices, touch screens,
game controllers and more Integrated Four-Port Hub in
the receiver
• Compatible with all operating systems
• Extends Stereo Audio
• Extends RS-232
• Plug and play
SFXPRO-2P-TX Back
SFXPRO-2P-RX Back
SFXPRO-2P-RX Front
SFXPRO-2P-TX Front
CONNECTING THE SFXPRO-2P
1. Power off all devices.
2. Connect the DVI-D source (computer) to the DVI-D port on the SFX-TX (transmitter).
3. Connect the USB source (computer) to the USB port on the SFX-TX (transmitter).
4. Connect an audio source (computer) to the Audio port on the SFX-TX (transmitter).
5. Connect the RS232 source (computer) to the RS232 port on the SFX-TX (transmitter).
6. Connect the SFX-TX (transmitter) to the SFX-RX (receiver) using 2 ber optic cables up to 1,500 feet in length.
7. Connect a DVI-D display to the DVI-D port on the SFX-RX (receiver).
8. Connect up to four USB 1.1 or 2.0 devices to the integrated 4-port USB hub on the SFX-RX (receiver).
9. Connect speakers to the audio port on the SFX-RX (receiver).
10. Connect RS232 devices to the RS232 port on the SFX-RX (receiver).
11. Connect the power supply to the SFX-TX and the SFX-RX.
12. Power on the computer, display, USB devices, speakers and RS232 devices.
LEARNING THE DDC
13. Connect a DVI-D display to the DVI-D port on the SFX-RX (receiver).
14. Connect the power supply to the SFX-RX (receiver).
15. Power on the display.
16. Connect the SFX-TX (transmitter) to the SFX-RX (receiver) using 2 ber optic cables up to 1,500 feet in length.
17. Connect the power supply to the SFX-TX (transmitter).
18. Wait 30 seconds until the VIDEO light on the SFXTX (transmitter) begins to blink.
19. The VIDEO light will continue to blink for approximately 10 seconds,
then it will be steady for another 10 seconds.
20. The DDC has been learned.
21. Connect the video source (computer)
to the SFXTX and power it on.
HARDWARE INSTALLATION
DVI-D IN
DVI-D OUT
USB IN
USB K/M OUT
USB 2.0 OUT
AUDIO IN
AUDIO OUT
FIBER
FIBER
LINK A DVI-D IN A DVI-D OUT A
FIBER
LINK B DVI-D OUT1 B DVI-D OUT2 B
5V
FIBER
LINK A DVI-D OUT1 A
DVI-D OUT2 A FIBER
LINK B DVI-D OUT1 B DVI-D OUT2 B
5V
SFXPRO-2P-RX
SFXPRO-2P-TX
