HDMI, IR and Power Extender

Over Single CAT5/5e/6 Cable

WATCH AND CONTROL

HDTV 1080P VIDEO

UP TO 250FT FROM

THE SOURCE VIA CAT5/5E/6

USING POE TECHNOLOGY

Quick Start Guide

VIDEO

Resolution

800X600, 1024X768 , 1280X1024,

1366X768, 1920X1200, 480i,

720p, 1080i, 1080p and 3D

Transmission 70 meters

Color Depth

Deep Color 36/30/24 Bit at 1080p

and 3D

Audio Format

Up to PCM 8 channel, Dolby Digital

TrueHD, and DTS-HD Master Audio

IR Range 38kHz, 56kHz

Video Bandwidth 10.2Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts(TTL)

I/O CONNECTOR (TX)

Input

1 x HDMI-A 19PIN Socket

5 x 2.5mm

1 x 3.5mm Jack for IR Receiver

Output

1 x RJ45 Jack

1 x 3.5mm Jack for IR Emitter

I/O CONNECTOR (RX)

Input

1 x RJ45 Jack

1 x 3.5mm Jack for IR Receiver

5 x 2.5mm

Output

1 x 3.5mm Jack for IR Emitter

1 x HDMI-A 19PIN Socket

MECHANICAL

Dimensions 0.9” H x 2.9” W x 3.7” D

Weight 0.26 lb

Power External 12V2.5A

ENVIRONMENTAL

Operating Temp. 32-104°F (0-40 °C)

Storage Temp. -4-140°F (-20-60 °C)

Humidity Up to 85% (non-condensing)

SAFETY

Certicate FCC, CE, RoHS

Power Adapter UL, CE, FCC, RoHS

NOTICE

The information contained in this document is

subject to change without notice. SmartAVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained

herein or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

800.AVI.2131, 702.800.0005

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

SmartAVI.com

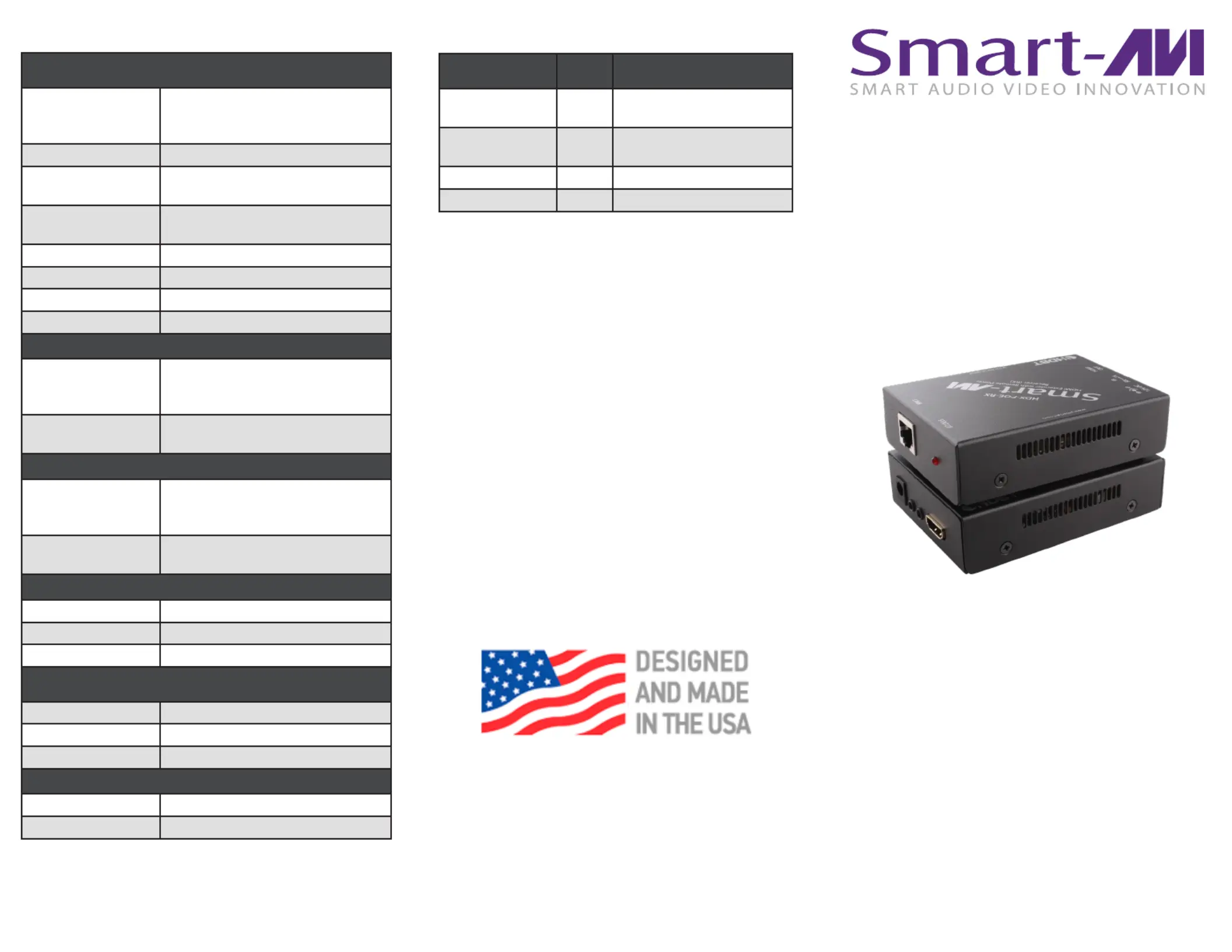

TECHNICAL SPECIFICATION

HDX-POE

WHAT’S IN THE BOX

PART NO. DESCRIPTIONQ-TY

HDX-POE-TX 1

HDMI, IR, CAT5/5e/6

Transmitter

HDX-POE-RX 1

HDMI, IR, CAT5/5e/6

Receiver

Power Supply 2 PS5VDC2A

Quick Start Guide 1

OVEVIEW

Are you extending your HD signal reach and nding that the

best potential new locations don’t have the proper power

available? You may not have to scale down your plans if you

consider using an HDX-POE system from SmartAVI.

HDX-POE injects power into cat5/cat5e/cat6 cable that

transports both HDMI and IR and picks it off at the load.

FEATURES

• Supports POE: Can be powered by TX or RX

• Extends HDMI,IR and Power Output over one

Cat5/5e/6 Cable

• Extends IR Control Signals for Remote Control

• Full HD support: 1080p@60Hz@48 bit/pixels,

1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and

4K x 2K@30Hz@24bit

• Data Signals up to 3.4Gbps

• HDMI 1.4 and HDCP Compliance

• Uses Bi-Direconal IR Communicaon

• Transmits High-Quality Dolby TrueHD, DTS-HD MA

Audio Signals

• Transmits 1080p Resoluon Video up to 250 

1. Power off the HDMI source and display.

2. Connect an HDMI cable from the HDMI source to the HDMI IN port of the HDX-POE transmitter.

3. Connect an IR emitter (optional) to the IR OUT port on the transmitter.

4. Connect the HDX-POE transmitter to the HDX-POE receiver using a CAT5e/6 cable (up to 150 ft).

5. Connect an IR receiver (optional) to the IR IN port on the receiver.

6. Connect an HDMI cable from the HDMI OUT port on the HDX-POE receiver to the HDMI Display.

7. Connect the power on the HDX-POE transmitter plugging in their power adapters (12VDC2A) or provide 12VDC input from

the rear DC input port.

NOTE: If the RX side has connected DC adapter, TX can get the DC power over the CAT5e/CAT6 cable, so leave DC input

port empty. Only 1 power supply is required for both units.

8. Power on the HDMI source, displays and speakers. The RX will read the EDID from the monitor, and then pass the data

into the TX automatically.

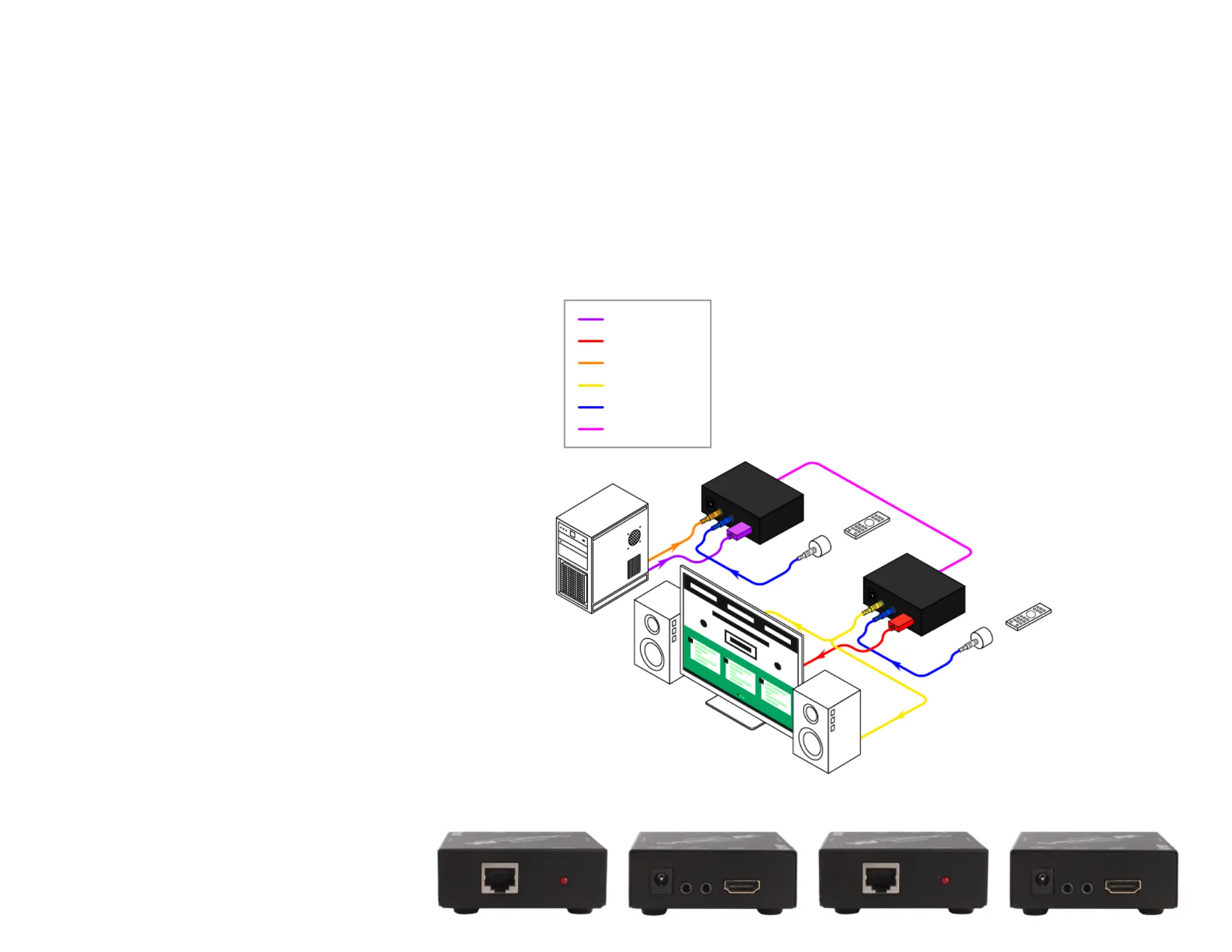

HARDWARE INSTALLATION

HDX-POE-TX HDX-POE-RX

HDMI IN

HDMI OUT

AUDIO IN

AUDIO OUT

CAT5/6

HDX-POE-TX

250 ft

HDX-POE-RX
