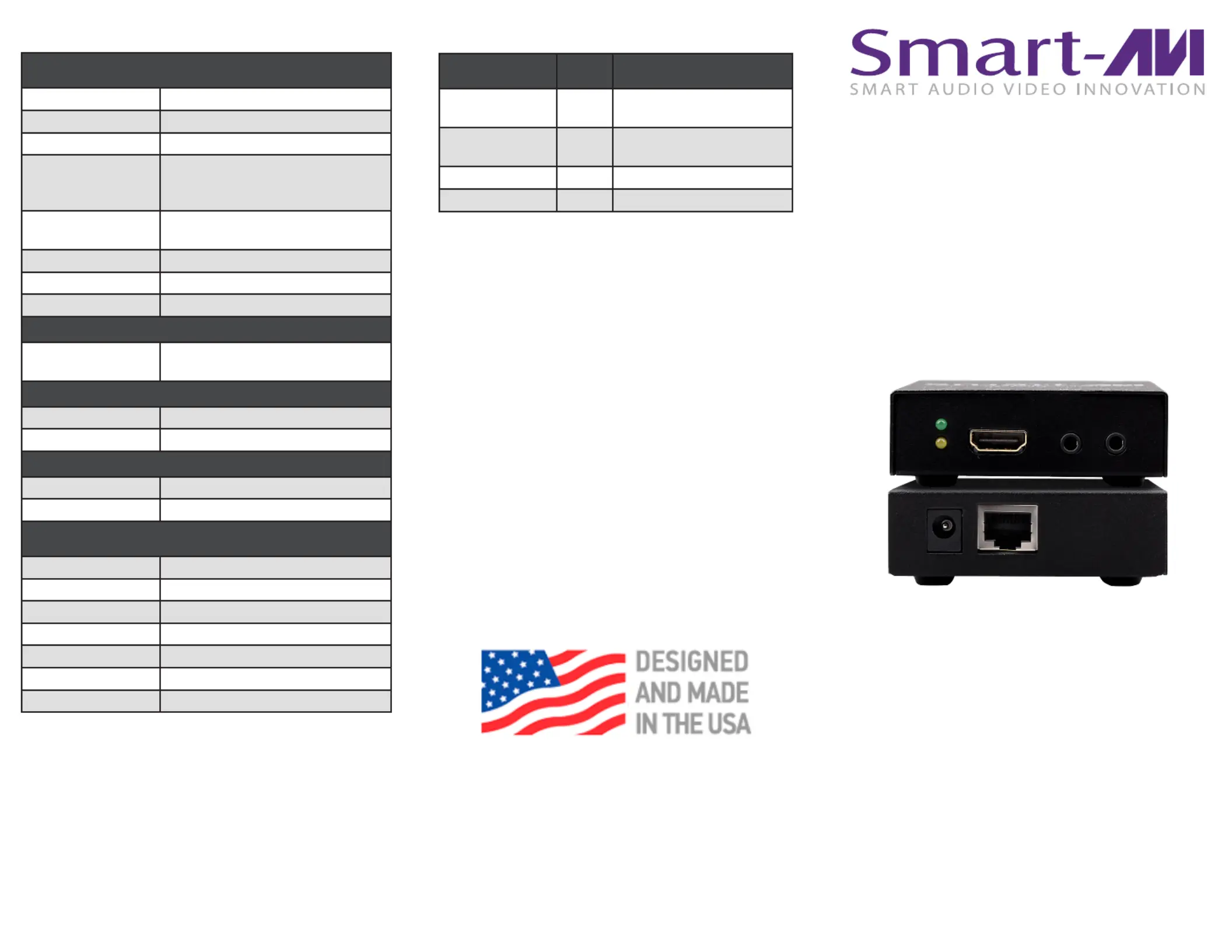

Side 1/2
4K HDMI & IR Extender over
Cat5/5e/6
WATCH AND CONTROL HDTV
4K VIDEO UP TO 250FT
FROM THE SOURCE VIA
CAT5/5E/6
Quick Start Guide
VIDEO
Format HDMI Type A 19 pin (female)
Input Interface (1) HDMI 19 pin (female)
Output Interface (1) HDMI 19 pin (female)
Resolution
800X600, 1024X768 , 1280X1024,
1366X768, 1920X1200, 480i,
720p, 1080i, 1080p, 4K and 3D
Color Depth Deep Color 36/30/24 Bit at 1080p
and 3D
Video Bandwidth 10.2Gbps
Input Video Signal 1.2 Volts P-P
Input DDC Signal 5 Volts(TTL)
AUDIO
Format Up to PCM 8 channel, Dolby Digital
TrueHD, and DTS-HD Master Audio
IR
Input Interface (1) 3.5mm Jack
Output Interface (1) 3.5mm Jack
SYSTEM
Input Interface (1) RJ45 Jack
Output Interface (1) RJ45 Jack
OTHER
Power PS5VDC2A
Dimensions 0.9” H x 2.9” W x 3.7” D
Weight 0.26 lb
Certicates FCC, CE, RoHS
Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
TECHNICAL SPECIFICATION
HDX-LX
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HDX-LX-TX 1 HDMI, IR, CAT5/5e/6
Transmitter
HDX-LX-RX 1 HDMI, IR, CAT5/5e/6
Receiver
Power Supply 2 PS5VDC2A
Quick Start Guide 1
OVEVIEW
The HDX-LX uses a single Cat5e/6 cable to extend HDMI
signals – including high-denition TV – up to 250ft (75m)
from the source. It is capable of transmitting high-resolution
HD video up to 4K. Controlling a video source is easy with
the device’s bi-directional IR extension. Whether it’s for a
home entertainment system or a commercial installation,
the HDX-LX delivers exibility and control with high-quality
video and audio.
FEATURES
• Extends HDMI Output over one Cat5e/6 Cable
• Extends IR Control Signals for Remote Control
• Delivers Uncompressed HD Video
up to 1080p/60Hz and 4K/30Hz 3D
• Data Signals up to 3.4Gbps
• HDMI 1.3 and HDCP Compliance
• Uses Bi-Direconal IR Communicaon
• Transmits High-Quality Dolby TrueHD, DTS-HD MA
Audio Signals
• Transmits 4K Resoluon Video up to 250 
1. Power off the HDMI source device and displays
2. Connect an HDMI cable from the HDMI source to the input port on the HDX-LX.
3. Connect HDMI displays to the HDMI outputs on the HDX-LX.
4. Connect the power supply to the HDX-LX.
5. Power on the HDMI device and the displays.
HARDWARE INSTALLATION
HDX-LX-TX FRONT
HDX-LX-RX FRONT
HDX-LX-TX BACK
HDX-LX-RX BACK
HDMI IN
HDMI OUT
AUDIO IN
AUDIO OUT
IR
CAT5/6
HDX-LX-TX
250 ft
HDX-LX-RX
