Side 1/2
© Copyright 2012 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m at i o n c o nt ai n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
DVI-D and USB 2.0 Extender up to
250 feet over Twisted Pair Cable
UDX-Plus
DVI-D and USB 2.0 Extender
over Twisted Pair with Super Reclocking
www.smartavi.com
Installation
Manual
Technical Specications
What’s in the Box?
PART NO. QTY DESCRIPTION
UDX-PS 1 DVI-D+USB 2.0 CAT6 STP Extender. Includes:
[UDX-PTX, UDX-PRX, 2x PS5VD4A]
Power Supply 1 PS5VDC4A
User Manual 1
VIDEO
Format DVI-D Single Line
Maximum Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type USB 2.0 480 Mbit/s (60 MB/s)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC4A @20W
Dimensions 7.25 in W x 1.75 in H x 3.375 in D (3 in RX)
Weight 3 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%

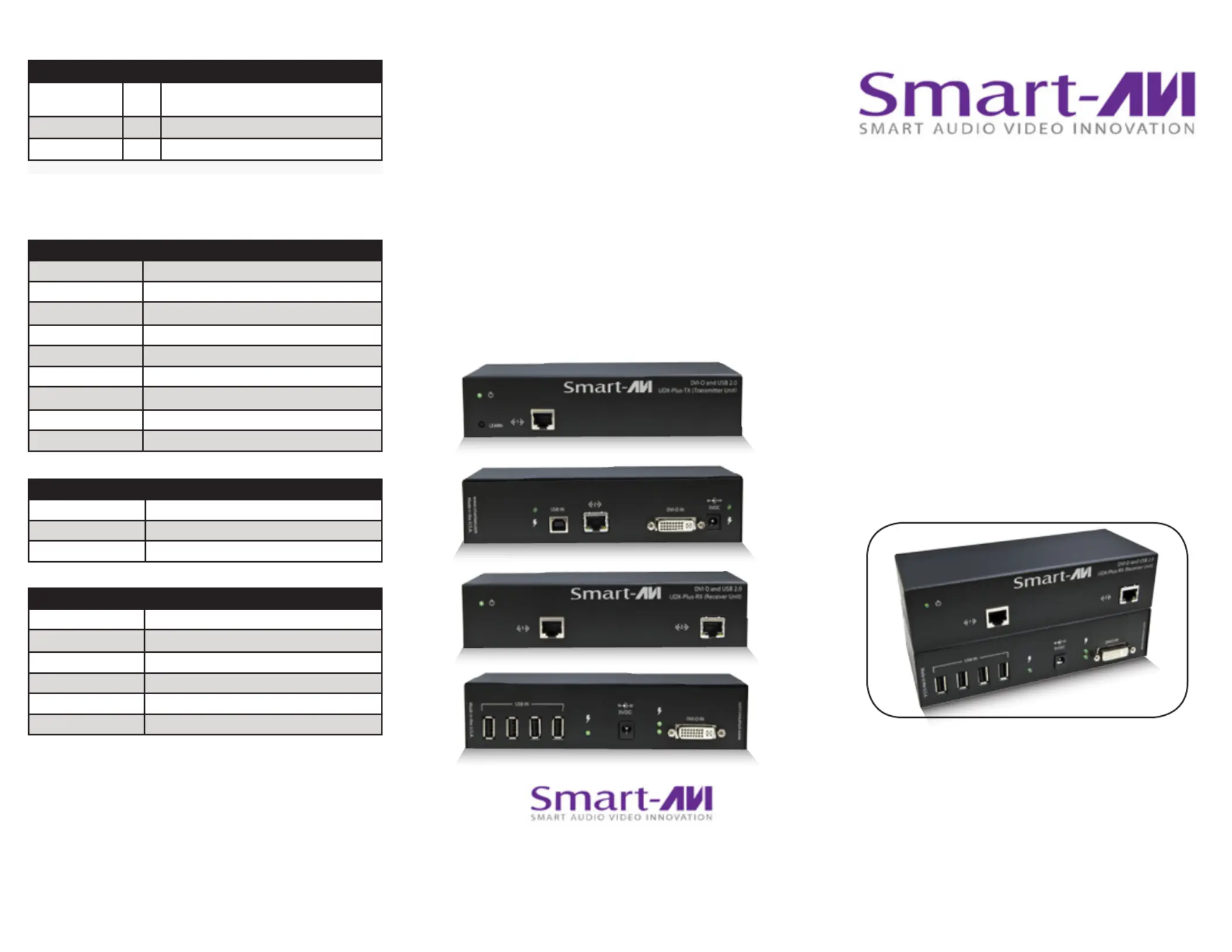

UDX-Plus-TX Front
UDX-Plus-TX Rear
UDX-Plus-RX Front
UDX-Plus-RX Rear
up to 250 ft over STP
UDX-Plus-TX UDX-Plus-RX
USB 2.0 FLASH
DRIVE USB 2.0 KEYBOARD USB 2.0 MOUSE
DVI-D MONITORS
COMPUTER
Introduction
The UDX-Plus is the perfect solution for extending dual
DVI-D displays and USB 2.0 devices to a remote location.
It extends DVI-D and USB 2.0 signals to a remote location
up to 250 feet away. The UDX-Plus features pixel accurate
signal reclocking which regenerates the input signal into a
perfectly sharp and clear output signal. It is fully plug and
play with dynamic DDC learning.
Connecting the UDX-Plus
1. Power o all devices.
2. Connect a DVI-D source (computer) to the DVI-D
port of the UDX-Plus-TX
labeled . DVI-D IN
3. Connect a USB source to the USB port of the the
UDX-Plus-TX labeled . USB IN
4. Connect the UDX-Plus-TX to the the UDX-Plus-RX
with two STP (Sheilded Twisted Pair) cables using
the ports labeled from TX to RX,
and TX to RX.
5. Connect the DVI display to the port on the rear of
the UDX-Plus-RX labeled . DVI-D IN
6. Connect up to 4 USB 2.0 devices to the ports on
the UDX-Plus-RX labeled . USB IN
7. Connect the power supply to the ports labeled
on the UDX-Plus-TX and UDX-Plus-RX.
8. Power on the computer, display and USB 2.0
devices.
Learning the EDID of a Display
1. Power o all devices.
2. Power on the UDX-Plus Transmitter and the
display to be learned.
3. Connect a DVI-D display to the DVI-D port of the
UDX-Plus-TX labeled . DVI-D IN
4. Press the button LEARN
5. The light will blink quickly if the learning was
successful. If the learning is unsuccessful the light
will not illuminate.
Applications
• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios
Features
• DDC from internal table for Mac/PC
• Dedicated switch to learn any DDC
• Supports High Resolution 1920x1200 60Hz
WUXGA
• Supports Mac, PC, and Linux DVI
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Supports all USB 2.0 and 1.0 Devices
Transparently
(Disk Drives, Flash Drives, Printers, Cameras,
Scanners, etc.)
• Supports 4-port USB 2.0 in remote location
• Full reclocking for the receiver regenerates
digital signal producing top signal quality
• Extends up to 250ft (275ft with high quality
CAT6 STP)

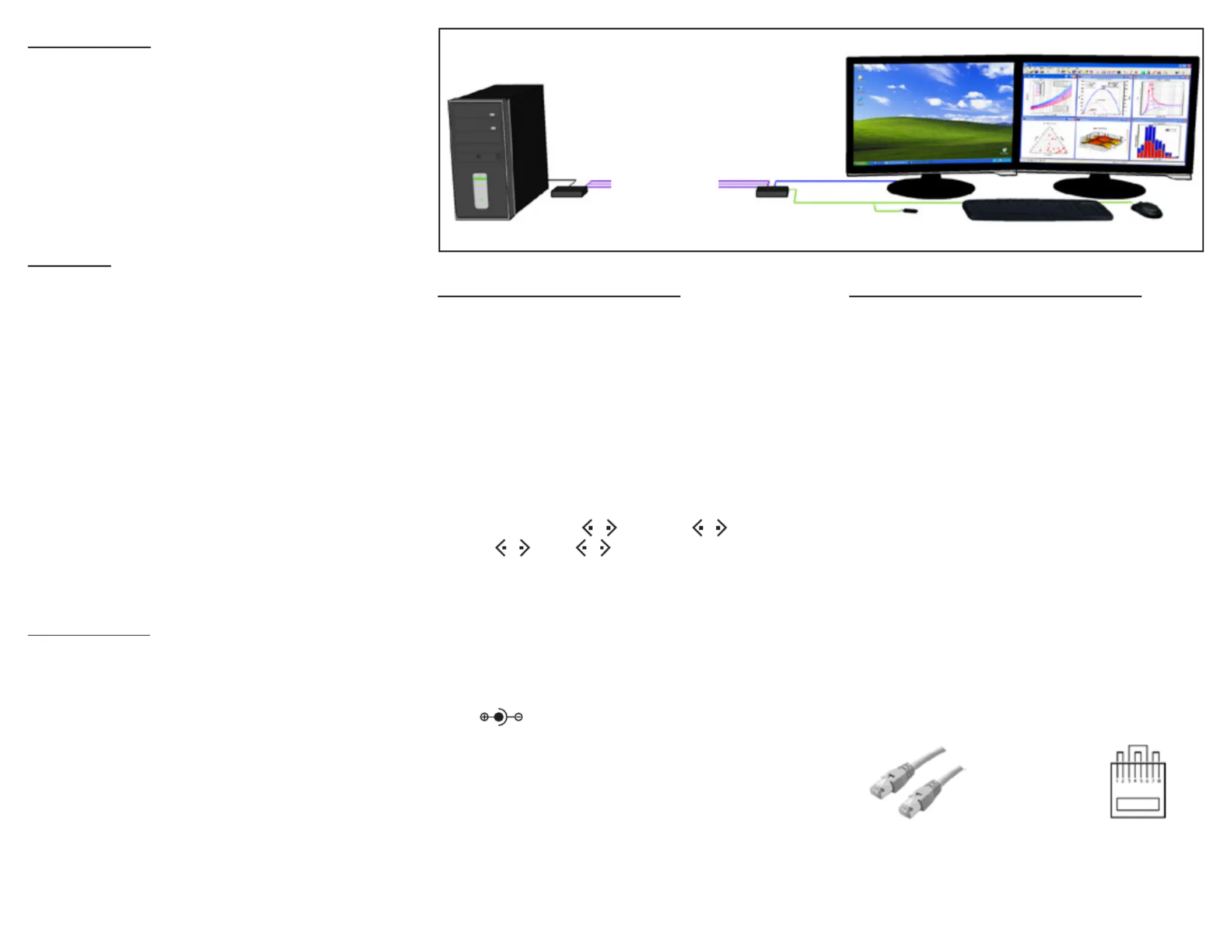

Product - Installation Diagram
1 1
22
The following is the wiring standard for terminating UTP/STP
cable using RJ-45-STP connector:
Connectors: RJ-45-STP
Capacitance: 14 pf/ft (46.2 pf/m)
Conductor Gauge: 24 AWG
Impedance: 100 +/- 15 ohms
Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8
