Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 07/25/2011

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1xComponenttoVGAvideoconverter

• 1xPowerAdapter

• 1xInstructionManual

System Requirements

• YPbPrComponentvideosource(i.e.DVR/PVR,DVDplayer,etc.)

• VGAdisplaydevice(i.e.monitor,projector,HDTV,etc.)

• AvailableACelectricaloutlet

• RCAComponentVideocable

• VGAvideocable

• Optional:RCAstereoaudiocable

• Optional:3.5mmAudiomini-jackcable

CPNT2VGAA / CPNT2VGAAGB / CPNT2VGAAEU

Component to VGA Video Converter with Audio

*actual product may vary from photos

Installation

1. Makesurethevideosourceanddisplaydevicearepoweredo

beforemakinganyconnections.

2. ConnectthevideosourcetotheInputsideofthevideo

convertingusingRCAcomponentvideocables(notincluded).If

alsousingaudio,connectRCAstereoaudiocables(notincluded)

fromthesourcetotheconverter.

3. ConnectthedisplaydevicetothevideoconvertingusingaVGA

videocable(notincluded).Ifalsousingaudio,connecta3.5mm

audiomini-jackcable(notincluded)fromthespeakerstothe

converter.

4. Connecttheincludedpoweradapterfromanelectricalsourceto

thevideoconverter.ThePowerLEDwilllightupsolid.

5. Turnthedisplaydeviceon,followedbythevideosource.

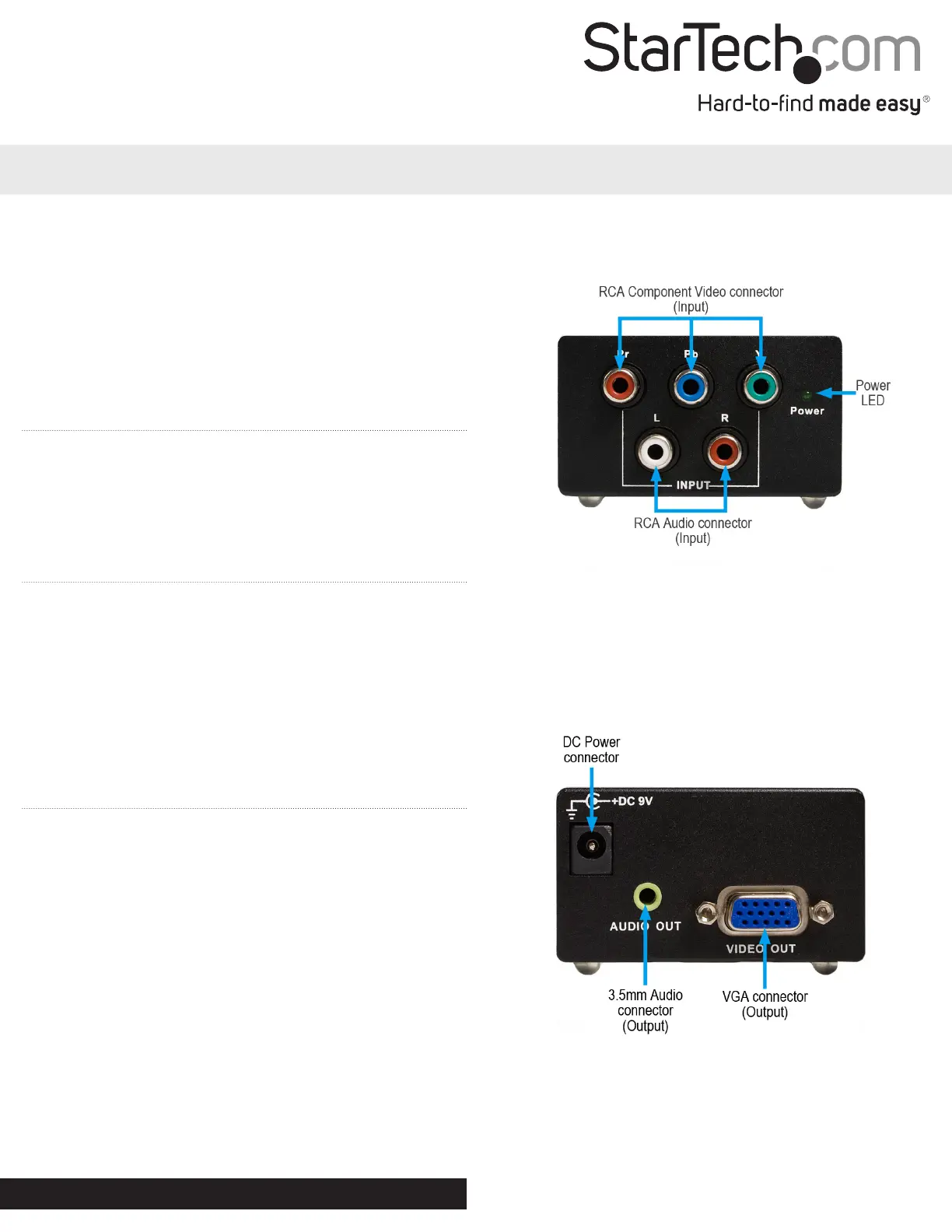

Front View

Rear View

FCC Compliance Statement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycause

harmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiverisconnected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com.WheretheyoccurthesereferencesareforillustrativepurposesonlyanddonotrepresentanendorsementofaproductorservicebyStarTech.com,oranendorsementoftheproduct(s)

towhichthismanualappliesbythethird-partycompanyinquestion.Regardlessofanydirectacknowledgementelsewhereinthebodyofthisdocument,StarTech.comherebyacknowledgesthatall

trademarks,registeredtrademarks,servicemarks,andotherprotectednamesand/orsymbolscontainedinthismanualandrelateddocumentsarethepropertyoftheirrespectiveholders.

Technical Support

StarTech.com’slifetimetechnicalsupportisanintegralpartofourcommitmenttoprovideindustry-leadingsolutions.Ifyoueverneedhelpwithyourproduct,visitwww.startech.com/supportandaccess

ourcomprehensiveselectionofonlinetools,documentation,anddownloads.

Forthelatestdrivers/software,pleasevisitwww.startech.com/downloads

Warranty Information

Thisproductisbackedbyatwoyearwarranty.

Inaddition,StarTech.comwarrantsitsproductsagainstdefectsinmaterialsandworkmanshipfortheperiodsnoted,followingtheinitialdateofpurchase.Duringthisperiod,theproductsmaybereturned

forrepair,orreplacementwithequivalentproductsatourdiscretion.Thewarrantycoverspartsandlaborcostsonly.StarTech.comdoesnotwarrantitsproductsfromdefectsordamagesarisingfrom

misuse,abuse,alteration,ornormalwearandtear.

Limitation of Liability

InnoeventshalltheliabilityofStarTech.comLtd.andStarTech.comUSALLP(ortheirocers,directors,employeesoragents)foranydamages(whetherdirectorindirect,special,punitive,incidental,

consequential,orotherwise),lossofprots,lossofbusiness,oranypecuniaryloss,arisingoutoforrelatedtotheuseoftheproductexceedtheactualpricepaidfortheproduct.Somestatesdonotallow

theexclusionorlimitationofincidentalorconsequentialdamages.Ifsuchlawsapply,thelimitationsorexclusionscontainedinthisstatementmaynotapplytoyou.

Specications

Video Signal Input YPbPrcomponentvideo

Video Signal Output VGA(RGBHV)

Connectors

3xRCAComponentvideofemale

2xRCAStereoaudiofemale

1xDE-15VGAfemale

1x3.5mmAudiofemale

1xDCPower

LEDs N/A

Supported Video

Resolutions
