Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: October 23, 2019 3:26 PM

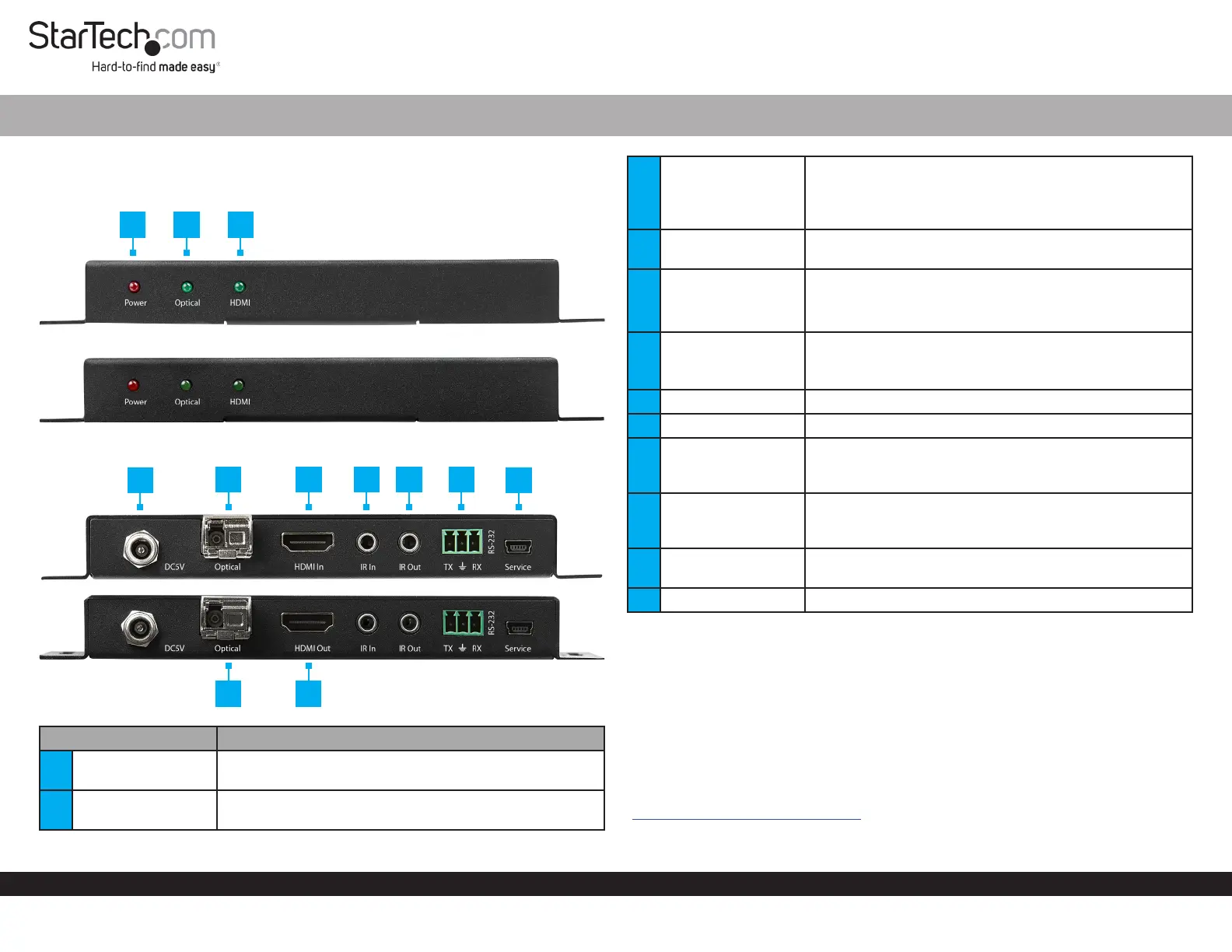

Product Diagram (ST121HD20FXA)

Transmitter (Top) and Receiver (Bottom) Front View

Transmitter (Top) and Receiver (Bottom) Rear View

Component Function

1Power LED Indicator • Transmitter and Receiver: Solid Red when the

Universal Power Adapter is connected

2Optical Signal LED

Indicator

• Transmitter and Receiver: Solid Green when the

Transmitter Receiver and establish an optical link

HDMI over Fiber Optic Extender - 4K 60Hz

3HDMI Signal LED

Indicator

• Transmitter: Solid Green HDMI Source when an

Device HDMI Input Port is connected to the

• Receiver: Solid Green HDMI Display Device when an

is connected to the HDMI Output Port

4DC 5V Port • Transmitter and Receiver: Transmitter Power the

and Receiver

5Optical Output Port

• Connect to the with a or Receiver Single Multi Mode

Fiber Optic Cable

• Removable

6Optical Input Port

• Connect to the with a or Transmitter Single Multi

Mode Fiber Optic Cable

• Removable

7HDMI Input Port • Connect an HDMI Source Device

8HDMI Output Port • Connect an HDMI Display Device

9IR Input Port

• Connect the or for bi-directional IR Blaster IR Receiver

infrared control of the and HDMI Source Display

Devices

10 IR Output Port

• Connect the or for bi-directional IR Blaster IR Receiver

infrared control of the and HDMI Source Display

Devices

11 Serial Terminal

Block

• Transmitter and Receiver: Serial Cable Connect a to

the for bi-directional Terminal Block Serial Extension

12 Service Port • Transmitter and Receiver: For manufacturer use only

Requirements

• HDMI Source Device x 1

• HDMI Display Device x 1

• HDMI M/M Cables (sold separately) x 2

• Single Mode Fiber Optic Cable up to 3300 Feet (sold separately) x 1

• Multi Mode Fiber Optic Cable up to 1000 Feet (sold separately) x 1

• (Optional) Adhesive Pads x 4

For the latest requirements and to view the full User Manual, please visit

www.startech.com/ST121HD20FXA.

7 10

411 12

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of

business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

Connection DiagramInstallation

Note: HDMI Display Device HDMI Source DeviceEnsure the and the are powered o

before you begin the installation.

1. Connect an (sold separately) to the on the HDMI Cable HDMI Output Port HDMI

Source Device HDMI Input Port Transmitter and to the on the .

2. Connect a or to the on Single Multi Mode Fiber Optic Cable Optical Output Port

the and to the on the . Transmitter Optical Input Port Receiver

3. Connect an (sold separately) to the on the HDMI Cable HDMI Output Port Receiver

and to an on the .HDMI Input Port HDMI Display Device

4. Connect the to an available and to the Universal Power Adapter Power Source

Power Adapter Port Transmitter Receiveron the and the .

5. Power on the and the .HDMI Display Device HDMI Source Device
