Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: January 17, 2023 8:29 AM

Product ID

ST121HD20FXA2

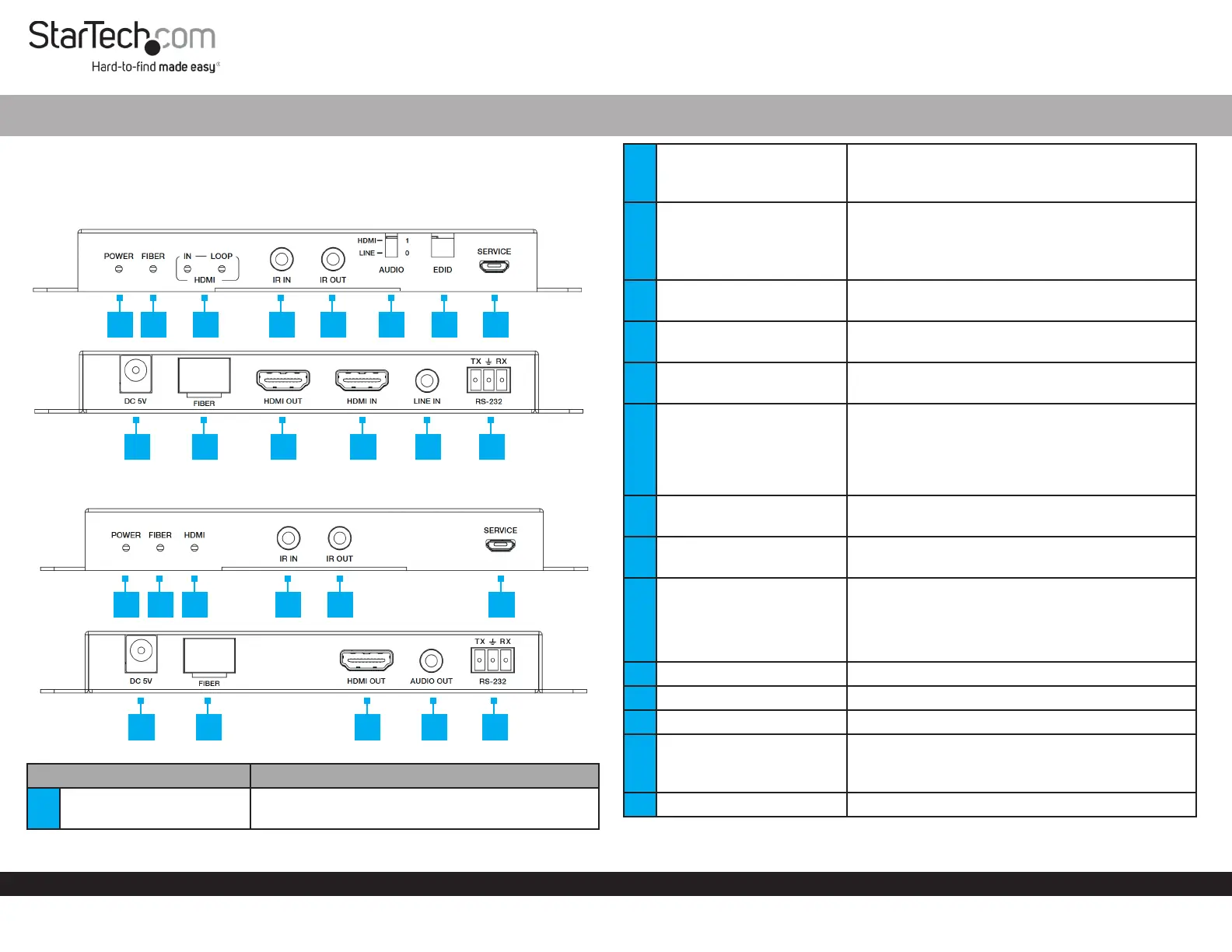

Transmitter

Receiver

Component Function

1Power LED Indicator • Transmitter and Receiver: Solid Red when the

Universal Power Adapter is connected

HDMI over Fiber Extender - 4K 60Hz

2Optical Signal LED

Indicator

• Transmitter and Receiver: Solid Green when

the and establish an Transmitter Receiver

optical link

3HDMI Signal LED Indicator

• Transmitter: HDMI Source Solid Green when an

Device HDMI Input Port is connected to the

• Receiver: HDMI Display Solid Green when an

Device HDMI Output Port is connected to the

4IR Input Port • Transmitter and Receiver: IR Connect an

Receiver

5IR Output Port • Transmitter and Receiver: IR Connect an

Blaster

6Audio Input Selector • Change between HDMI Audio Pass-through, or

Line In

7EDID Selector

• Set the for the EDID mode HDMI Extender

• 11: Copy Receiver’s HDMI Output EDID

• 10: Copy Transmitter’s HDMI Output EDID

• 01: Force 4K 60Hz EDID

• 00: Force 1080P EDID

8Service Port • Transmitter and Receiver: For manufacturer

use only

9DC 5V Input • Transmitter and Receiver: Connect the

Universal Power Adapter

10 Optical Connection Port

• Connect the and with a Transmitter Receiver

Single Mode Multi Mode Fiber Optic Cableor

• The is pre-installedLC Simplex SFP Module

• Third Party cannot be usedSFP Module’s

11 HDMI Output Port • Connect an HDMI Display Device

12 HDMI Input Port • Connect an HDMI Source Device

13 Line In Port • Connect a 3.5mm Audio Device

14 Serial Terminal Block

• Transmitter and Receiver: RS232 Connect a

Serial Device Terminal Block to the for bi-

directional communication

15 Audio Output • Connect to an Audio Output Device

1 2 3 4 5 6 7 8

9 10 11 12 13 14

1 2 3 4 5 8

9 10 11 15 14

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could

void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique

subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)

for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss

of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com

Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

4. (Optional) Connect an from the on the HDMI Cable HDMI Output Port

Transmitter Local HDMI Displayto the .

5. (Optional) Connect an to the on the Audio Source Device Line In port

Transmitter.

6. Connect a or to the on Single Multi Mode Fiber Optic Cable Optical Output Port

the and to the on the Transmitter Optical Input Port Receiver.

Note: The cabling cannot go through any networking equipment (e.g. router, switch,

etc.).

7. Connect an to the on the and to the HDMI Cable HDMI Output Port Receiver

HDMI Display Device.

8. (Optional) Connect an to the on the Audio Device Audio Output port Receiver.

9. Connect the to the on the to an Universal Power Adapter DC 5V Port Transmitter

AC Electrical Outlet.

10. Connect the to the on the to an Universal Power Adapter DC 5V Port Receiver

AC Electrical Outlet.

Product Information

For the latest manuals, product information, technical specications, and declarations of

conformance, please visit: www.StarTech.com/ST121HD20FXA2

Package Contents

• Local HDMI Extender Unit x 1

• Remote HDMI Receiver Unit x 1

• IR Receiver x 2

• IR Blaster x 2

• Power Adapter x 2

• Quick-Start Guide x 1

Requirements

• HDMI Source Device x 1

• HDMI Display Device x 1

• HDMI M/M Cables (sold separately) x 2

• Single Mode LC Fiber Optic Cable up to 3300 Feet (sold separately) x 1

• Multi Mode LC Fiber Optic Cable up to 1000 Feet (sold separately) x 1

Installation

Transmitter and Receiver

Note: Ensure the and the are powered o HDMI Display Device HDMI Source Device

before you begin the installation.

1. Position the near the , and the near the Transmitter HDMI Source Device Receiver

HDMI Display.

2. Set the switches to the desired EDID function for the setup. EDID Selector

3. Connect an (not included) from the on the HDMI Cable HDMI Input Port

Transmitter HDMI Source Deviceto the .
