Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 05/16/2012

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1 x DVI EDID Emulator

• 1 x USB to DC Power Cable

• 1 x Pack, Rubber Feet

• 1 x Instruction Manual

System Requirements

• DVI-D enabled display device (i.e. monitor, projector, etc.)

• DVI-D enabled video source (i.e. computer)

• Available USB port on video source (during Copy only)

• DVI-D video cable (from video source)

• DVI-D video cable (to display)

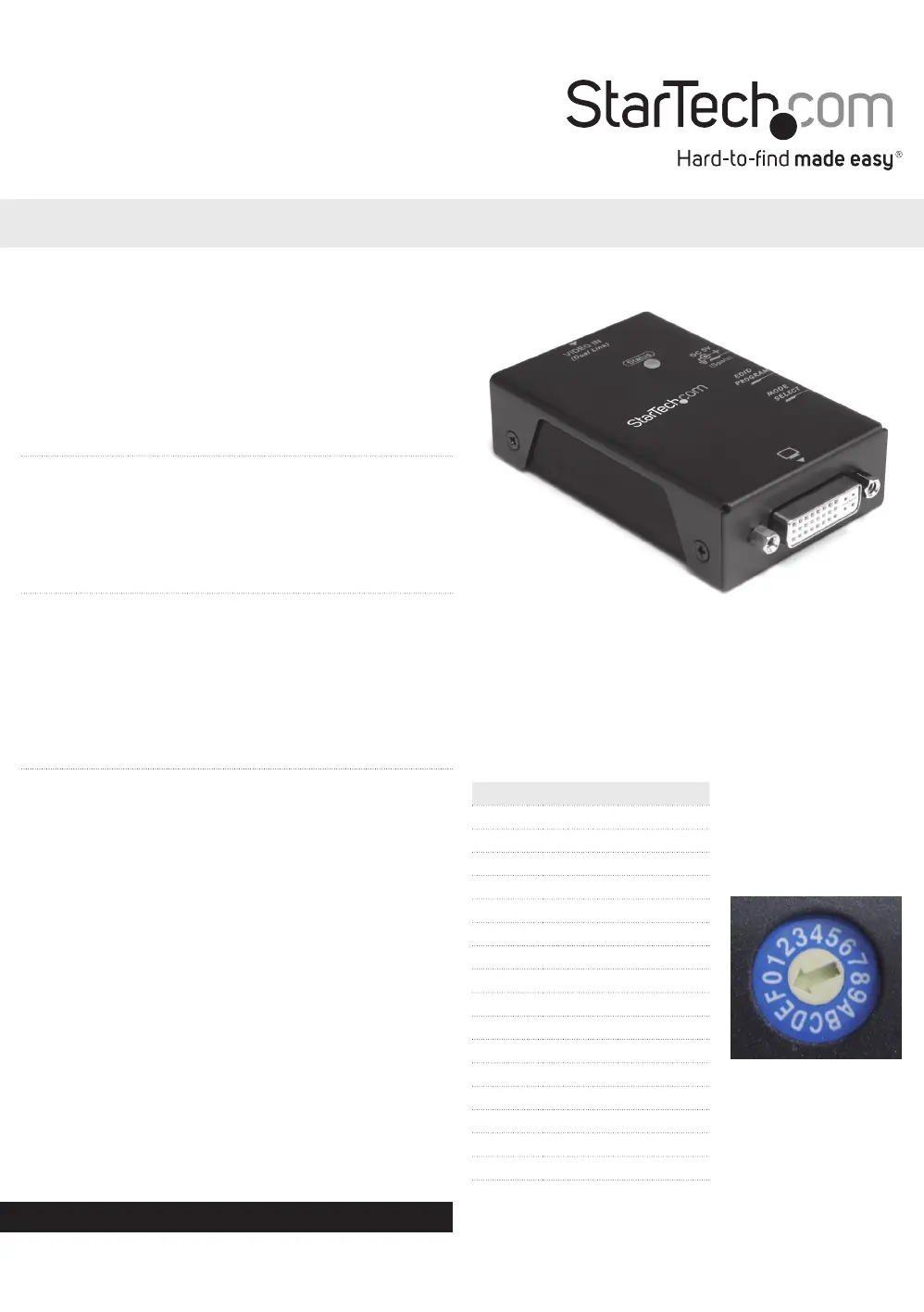

VSEDIDDVI

DVI EDID Emulator with EDID Copy

Installation

EDID information contains important display settings such as

maximum image size, color characteristics, factory pre-set timings,

frequency range limits, etc., and since most video extender systems

don’t oer EDID communication between the source and remote

display, the DVI EDID Emulator is a perfect workaround for ensuring

the optimum signal is provided to the display to help prolong the

life of your displays.

EDID Copy

To clone/copy the EDID from a display.

1. Set the rotary dial to position 1.

2. Connect the USB to DC power cable from the unit, to an available

USB port on the video source device (may need to be powered

on) or display device. The Status LED will light up blue.

3. Connect the EDID compliant display device to the Monitor port

on the EDID Emulator using the appropriate type of DVI cable

(DVI-D, dual or single link). Power on the display device.

4. Press and hold the EDID Program button until the Status LED

starts to ash green. The LED will ash green/red while copying.

5. Once the Status LED returns to blue, the EDID Copy has

completed successfully.

Preset EDID Emulation

If you are unable to clone the EDID from a display device, or are

using non-EDID compliant displays, basic preset EDIDs built into the

EDID Emulator can be used.

1. Set the rotary dial to the position for the maximum resolution you

wish to set.

Position Description

0 Pass through

1 EDID Copy

2 1024 x 768

3 1280 x 720

4 1280 x 1024

5 1366 x 768

6 1440 x 900

7 1600 x 900

8 1600 x 1200

9 1680 x 1050

A 1920 x 1080

B 1920 x 1200

C 1920 x 1440

D 2048 x 1152

E 2560 x 1440

F 2560 x 1600

*actual product may vary from photos

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Input Video Signal DVI-D (digital)

Output Video Signal DVI-D (digital)

Connectors 2 x 29-pin DVI-I dual link female

1 x DC Power

LEDs 1 x Status

Maximum Video

Resolution 2560 x 1600

Power Adapter Optional: 5V DC to USB

Enclosure Material Metal

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
