HH905RH2L Replacement Cable (2,300mm / 7.5ft)

HH905RH2S Replacement Cable (1,200mm / 4ft)

Hex wrench (2.5mm & 3mm)

When detaching the cable, be sure to remove the cable from the

footboard rst, according to the instructions outlined in this manual.

It is not possible to remove the cable from the upper section without

removing it from the footboard rst.

While replacing the cable, please handle with care so as not to bend

the cable wires.

Loosen the T-bolt and extend the two legs outward. Stand the

footboard upright and straighten out the cable.

Loosen and remove the plastic nut (A). Then, remove the cover

plate (B) as shown as Fig.1.

Insert a 2” (5cm) tall support wedge (box, book, etc) under the

footboard (Fig.2).

Hold the upper section upside down as shown in Fig. 3. Then, press

down on the pull rod about 2” (5cm) as shown in (Fig.4), freeing the

cable from the footboard section.

At the top of the footboard section, loosen the screw (C) with the

included 2.5mm hex wrench (Fig.5).

Hold the red bushing (D) and pull up the cable, completely removing

it from the footboard section (Fig.6).

Remove the cable through the slit in the red bushing. Be careful not

to lose the bushing, nut (A), or cover (B).

Loosen the three screws (E-G) using the included 2.5mm hex

wrench (Fig.7).

Remove the lower pipe section, revealing the cable holder (Fig.8).

10.

Loosen and remove the screw (H) with the included 3mm hex

wrench (Fig.9). Then, remove the cable from the cable holder.

11.

Remove the cable through slit in the red bushing (D‘) as shown in

Fig.10.

Pass the new cable through the slit in the red bushing (D'). Please

note that the larger hole of the bush is seen outside (Fig.10).

Place the ball-end of the cable into the cable holder (Fig.11). Tighten

the screw (H) with the included 3mm hex wrench (Fig.8). Insert the

red bushing (D’) into the lower end of the pipe section. Then, re-

tighten the screw (G). Be careful as to not allow the screw (G) to hit

the slit of the bushing (D’).

Insert the pipe section into upper section. Re-tighten the screws (E,

F).

Even when the pipe section is xed to the upper section, the tension

adjuster can move freely up and down until the cable is attached to

the footboard section. This is not a malfunction.

As you did when detaching the cable, insert a 2”(5cm) tall support

wedge (box, book, etc) under the footboard to support that.

Pass the new cable through the slit in the red bushing (D). Please

note that the larger hole of the bushing should be on the outside

(Fig.6).

Insert the bushing (D) into the top end of the footboard section.

Then re-tighten the screw (C). Be careful as to not allow the screw

to hit the slit of the bushing (D) (see Fig.6 - 5).

Hold the upper section upside down as shown in Fig.3. Then, press

down on the pull rod about 2” (5cm). The ball-end of the cable will

come down close to footboard (Fig.4). Align the ball-end of the cable

to the cable holder, release the tension on the pull rod and allow the

ball-end to settle into the holder. It will then be xed into position by

spring tension.

As seen in Fig.1, place the cover plate (B) over the cable holder and

tighten the plastic nut (A) to secure the cover plate in place.

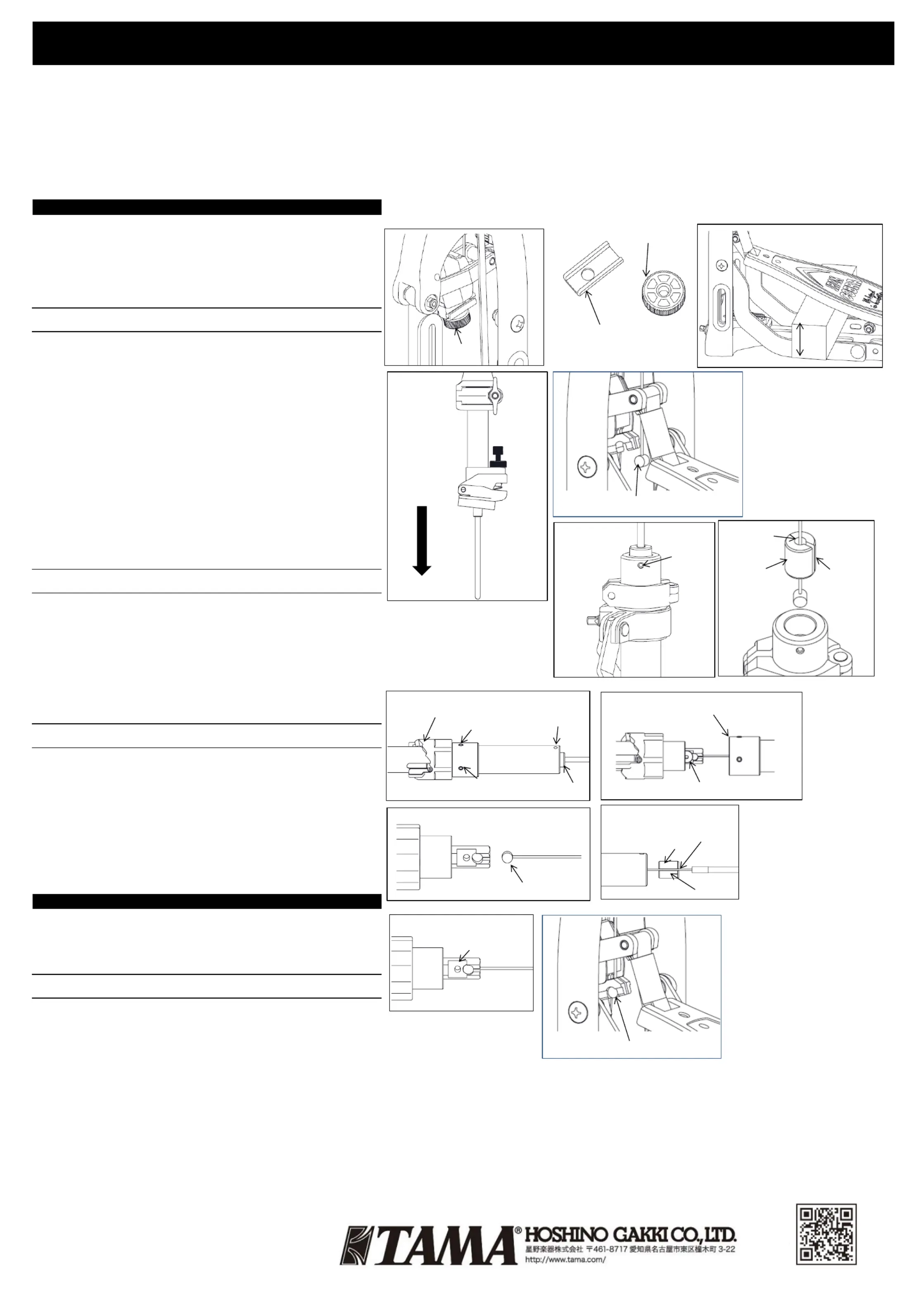

Cable Replacement Manual

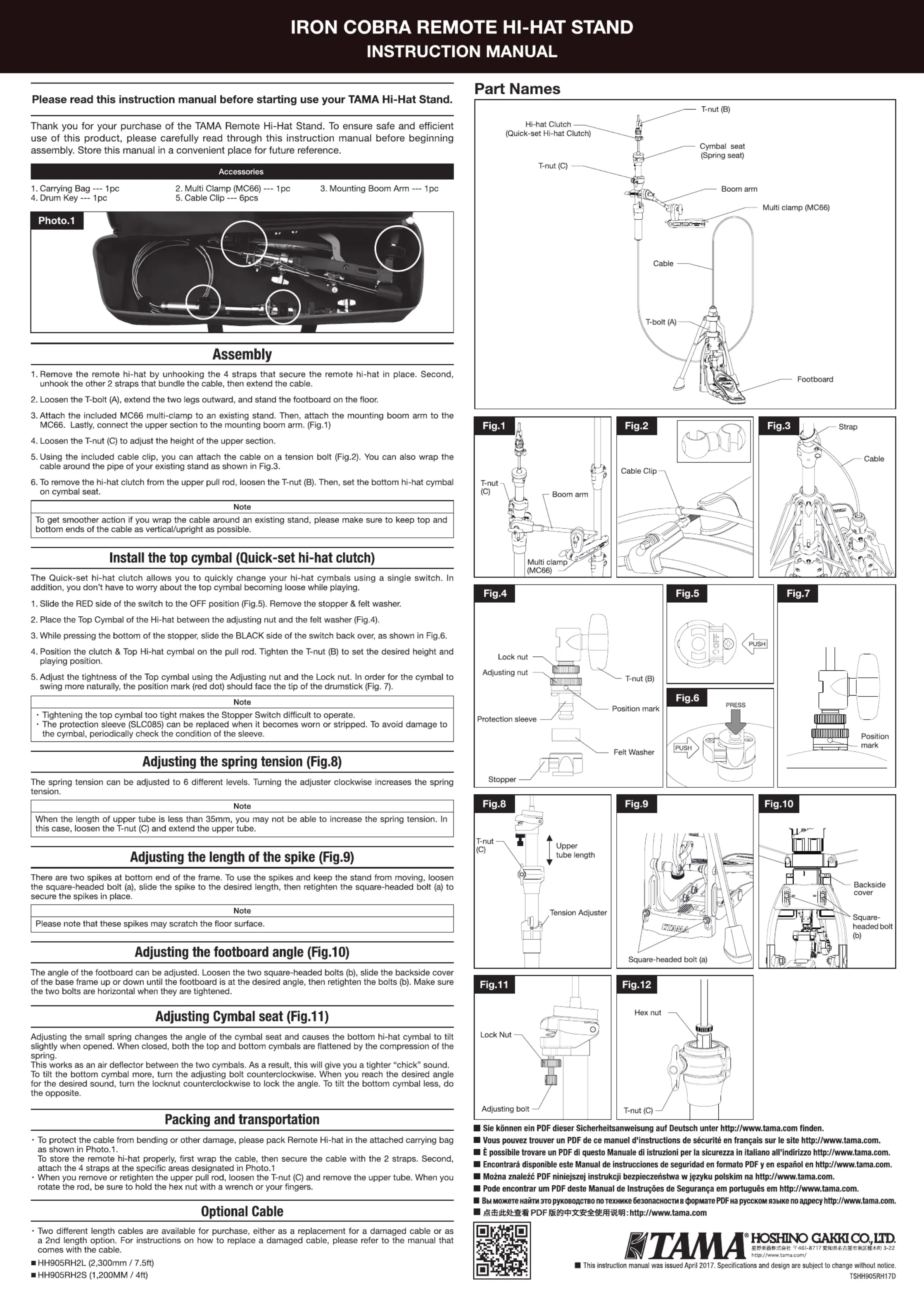

TAMA REMOTE HI-HAT STAND

Attach the new cable to the footboard section

Please read this manual in its entirety before you begin to replace the cable. Store this manual in a convenient place for future reference.

Detach the cable from the upper section

Attach the new cable to the upper section

NOTE

Detaching the cable from the footboard

(A)

Plastic (A) nut

Cover plate (B)

Fig.1

Fig.2

Fig.3

5cm

(2")

Press down

Cable

Fig.4

(C)

(D)

Slit

Larger hole

Fig.5

Fig.6

(E)

(F)

(G)

(D')

(H)

Fig.7

Fig.8

Fig.9

Fig.10

Fig.11

Ball end of the cable

cable holder

Slit

Larger hole

Fig.12

Ball end of the cable

Lower pipe section

Tension adjuster

■ Sie können ein PDF dieser Sicherheitsanweisung auf Deutsch unter http://www.tama.com nden.

■ Vous pouvez trouver un PDF de ce manuel d'instructions de sécurité en français sur le site http://www.tama.com.

■ È possibile trovare un PDF di questo Manuale di istruzioni per la sicurezza in italiano all’indirizzo http://www.tama.com.

■ Encontrará disponible este Manual de instrucciones de seguridad en formato PDF y en español en

http://www.tama.com.

■ Można znaleźć PDF niniejszej instrukcji bezpieczeństwa w języku polskim na http://www.tama.com.

■ Pode encontrar um PDF deste Manual de Instruções de Segurança em português em http://www.tama.com.

■ Вы можете найти это руководство по технике безопасности в формате PDF на русском языке по адресу

http://www.tama.com.

■ 点击此处查看 PDF版的中文安全使用说明 : http://www.tama.com
