Side 1/11

LUXA 103 S360-100-12 DE-UP WH

1030052

LUXA 103 S360-101-12 DE-UP WH

1030053

LUXA 103 S360-100-12 AP WH

1030062

LUXA 103 S360-101-12 AP WH

1030063

LUXA 103 S360-100-28 DE-UP WH

1030072

LUXA 103 S360-100-28 AP WH

1030082

307478

2022-01-05

Presence detector

1030052 1030062 1030072

1030053 1030063 1030082

1. General information

•

Presence detector for ceiling installation (false ceiling),

ush mounting in standard box and surface mounting

•

Suited for mixed light measurement

•

Functions adjustable with remote control theSenda P and

theSenda B/app; functions for the user can be called up

via theSenda S

•

Detection area: presence detector circular Ø 12 m;

corridor detector rectangular 28 x 5 m

•

Various versions:

LUXA 103 S360-100-12 DE-UP WH: for ceiling installa-

tion and ush mounting, 1 switching channel for light

LUXA 103 S360-101-12 DE-UP WH: for ceiling installa-

tion and ush mounting, 1 switching channel for light,

1 potential-free contact for HVAC

LUXA 103 S360-100-12 AP WH: for surface mounting,

1 switching channel for light

LUXA 103 S360-101-12 AP WH: for surface mounting,

1 switching channel for light, 1 potential-free contact for

HVAC

LUXA 103 S360-100-28 DE-UP WH: for ceiling installa-

tion and ush mounting, 1 switching channel for light

LUXA 103 S360-100-28 AP WH: for surface mounting,

1 switching channel for light

•

Optional accessories:

Adapter set Switzerland 9070842; surface-mounted

frame 9070843, 9070844

theSenda S user remote control (9070911) (theSenda S

for short), theSenda P service remote control (9070910)

(theSenda P for short), theSenda B app remote control

(9070985) and the corresponding “theSenda Plug” app

(iOS/Android) (theSenda B/app for short)

2. Safety

Assembly and installation should only be carried

out by a qualied electrician, somebody who has

completed appropriate professional training and

has the knowledge and experience necessary to be

able to recognise and avoid the potential dangers

posed by electricity.

Before installation/disassembly, disconnect the

power supply and ensure that the parts are no

longer live.

Prior to commissioning and using the product, read

and observe all the operating instructions.

The presence detectors conform to EN 60669-2-1 if correctly

installed.

3. Proper Use

•

Presence detector for automatic lighting control and

HVAC (depending on version)

•

Suited for ceiling installation (false ceilings), ush moun-

ting in standard box (1030052, 1030053, 1030072) or

surface mounting (1030062, 1030063, 1030082) indoors

and outdoors:

Detector with circular detection area for individual and

open-plan ofces, toilets, basements, etc.;

Detector with rectangular detection area (1030072 +

1030082 so called → corridor detector) for aisles and

corridors

4. Installation

Installation instructions

As the detector reacts to variations in temperature, avoid the

following situations:

 Do not point the presence detector at objects with highly

reective surfaces such as mirrors, etc.

 Do not install the presence detector near heat sources such

as heating vents, air conditioners, lamps, etc.

 Do not point the presence detector at objects that move in

the wind such as curtains, large plants, etc.

 Pay attention to the direction of motion during the test run.

L Prior to installation, you may need to make settings at the

potentiometers.

L Observe the recommended installation height of

2.5 – 3.5 m!

L Ensure that there are no obstructions, as infrared rays

cannot pass through solid objects.

L When mounting the corridor sensor (1030072, 1030082),

pay attention to correct alignment.

 Disconnect power source.

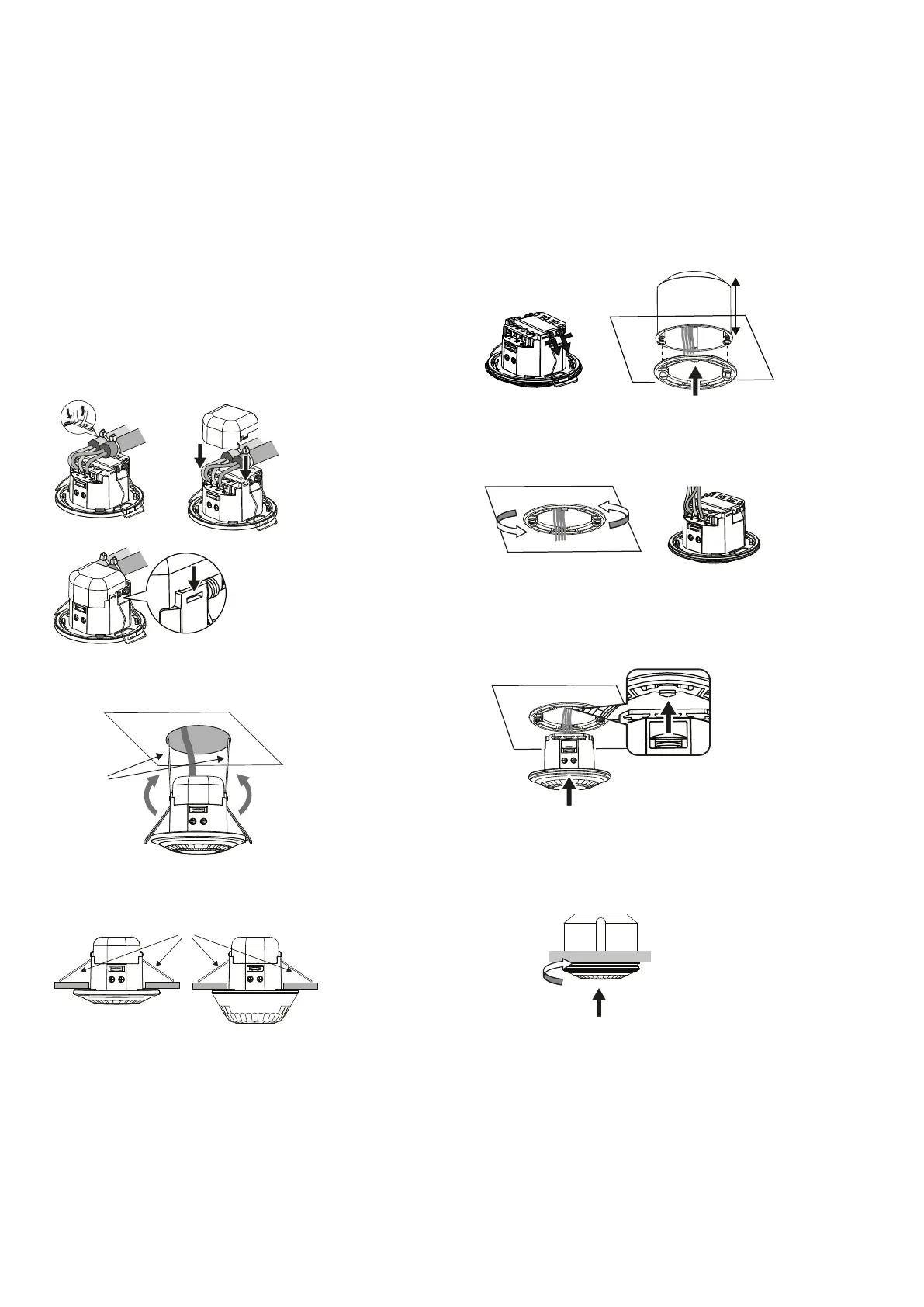

Installation in false ceiling (ceiling installation)

L This type of installation applies to detectors 1030052,

1030053, 1030072.

 Create a ceiling opening of approx. Ø 60 mm.

 Strip the cable to 8 – 10 mm according to the device

labelling.

 Connect the device as shown in the gure, attach the cord

grip using the cable ties supplied and t the transparent

touch protection cap.

 Press the springs upwards and push the device into the

ceiling opening.

Ceiling opening Ø 60 mm

Springs

upwards

Springs in correct position

Flush mounting

L This type of installation applies to detectors 1030052,

1030053, 1030072.

L To t the devices into a box, the springs and the touch

protection cap must be removed.

 Strip the cable to 8 – 10 mm according to the device

labelling.

 Connect and assemble the device as shown in the gure.

Lock

61 mm

Remove the springs

L A box with a minimum depth of 61 mm provides the opti-

mum installation conditions.

Lock

61 mm

 Screw the mounting frame onto opposite sides of the ush-

mounted box.

 Connect the device.

Lock

61 mm

 Slide the device over the rst resistance in the box (see

gure) and x it to the mounting frame by pressing and

turning it clockwise.

Lock

61 mm

Lock
