Side 1/5

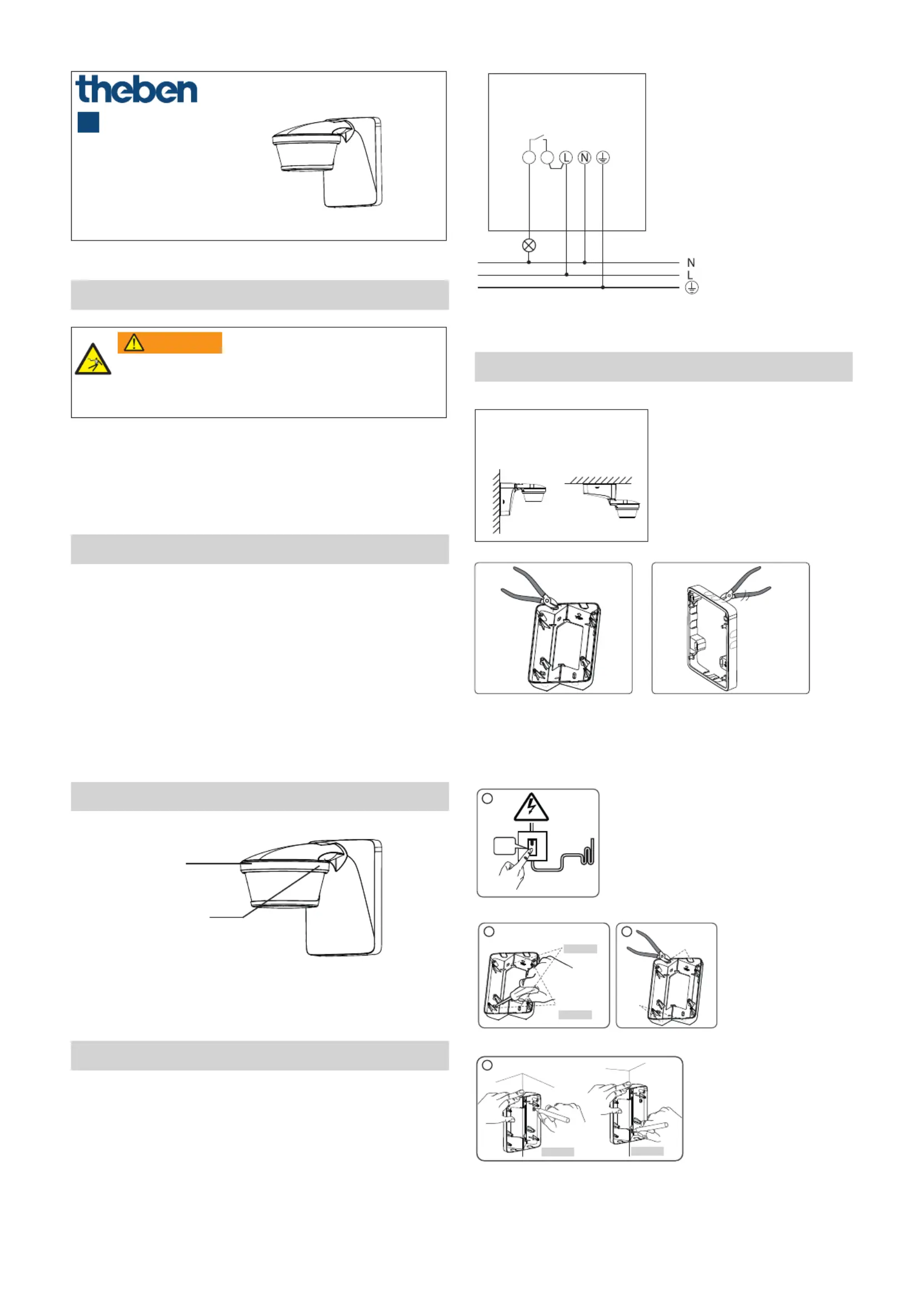

theLuxa P220 WH 1010605

theLuxa P220 BK 1010606

theLuxa P300 WH 1010610

theLuxa P300 BK 1010611

310481 04

Motion detectors

1. Basic safety information

Danger of death through electric shock or fire!

¾ Installation should only be carried out by a

qualied electrician!

WARNING

•

The device conforms with EN 60669-2-1 if correctly

installed

•

IP 55/54 according to EN 60529 (depending on type of

installation)

2. Proper use

•

Motion detector for automatic lighting control dependent

on presence and brightness

•

Suitable for external wall or ceiling installation

•

Suitable for entrances, garages, gardens, corridors, parks,

etc.

•

Only intended for installation outside of arm's reach

Disposal

Dispose of device in environmentally sound manner.

3. Description

3 potentiometers for

setting time (min),

brightness (lux) and

sensitivity (metres)

Motion detector

with sensor head

4. Connection

Disconnect power source!

Ensure device cannot be switched on!

Check absence of voltage!

Earth and bypass!

Cover or shield any adjacent live components.

D1, D2: Suited for switching FELV or a voltage of the same

phases as L.

5. Installation

IP 54

(category II)

IP 55

(category II)

If applicable, use optional corner bracket (9070904,

9070905) or spacer frame (9070908, 9070909) for exible

installation as well as cable entry from side or top/bottom.

0FF

230V

INTERNAL

EXTERNAL

Knob out hole

Cut out

here

Cut out

here

INTERNAL

EXTERNAL

INTERNAL EXTERNAL

6mm

8 9

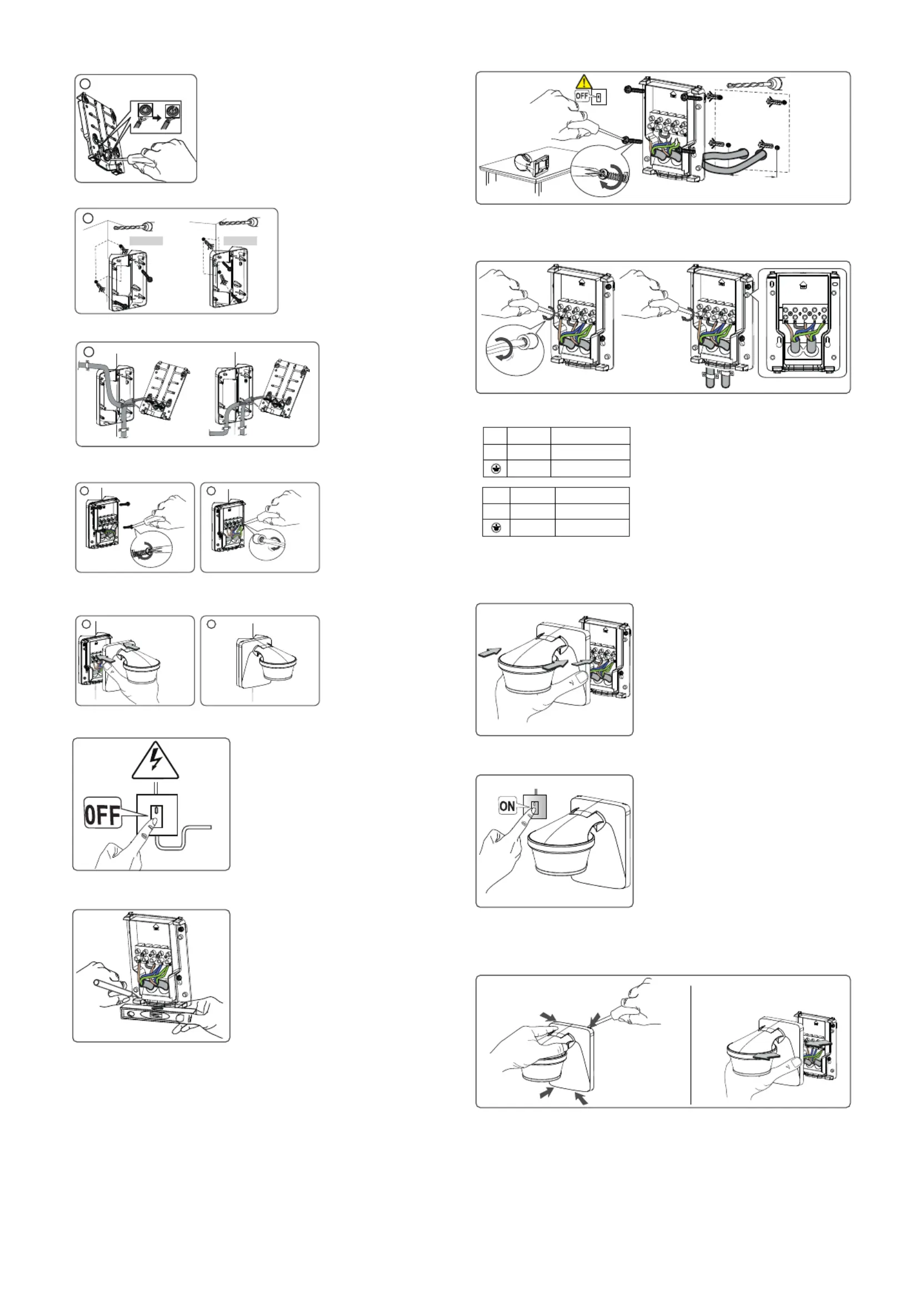

Tighten the screws.

10 11

230V

Disconnect power source.

Make marks for the holes on the wall (with enclosed drill

template/base).

Drill holes.

Ø 6 mm

60mm

Feed cable through the seal of the base.

Fasten base (and spacer frame) to the wall.

D1, D2

brown

Earthing

conductor

Phase

Relay contact

Neutral

conductor

blue

green/yellow

Connect the individual wires to the appropriate terminal.

Tighten screws.

Plug motion detector onto base and engage.

Connect motion detector to power supply.

Dismounting

Push

Using the screwdriver, carefully loosen the upper and lower

snap-ts and pull the device away in a forward direction.

Neutral

conductor

Earthing

conductor
