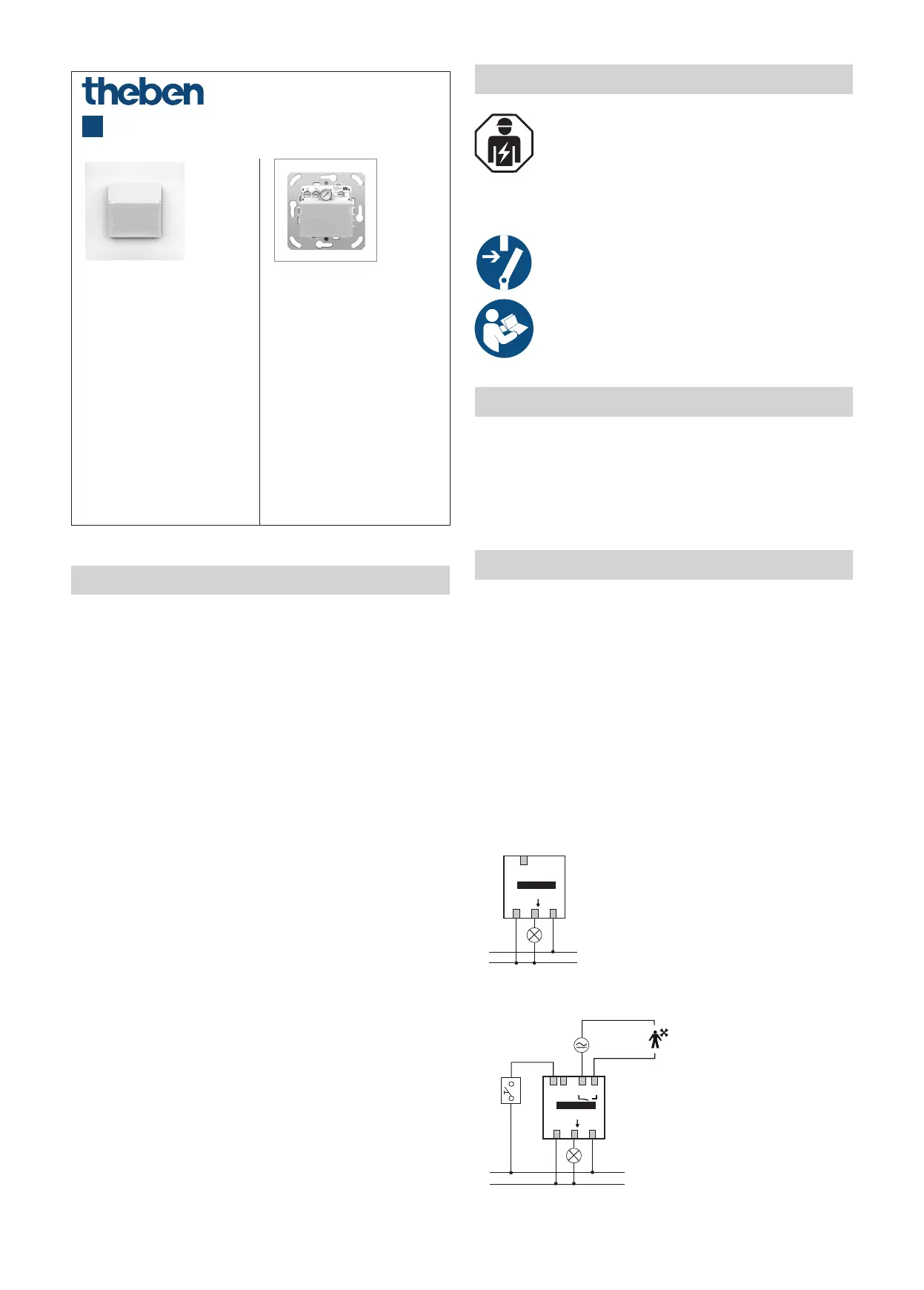

1
309706 04
02.11.2022
Motion and presence
detectors
EN
theMura S180-100 UP WH
2060650
theMura S180-100 UP N WH
2060653
theMura S180-100 2W UP WH
2060670
theMura S180-101 UP WH
2060655
theMura S180-101 2.20 UP WH
2060658
theMura S180 Slave UP WH
2060660
Motion detectors
Presence detectors
Motion/presence
detectors
Motion detectors
Presence detectors
Motion/presence
detectors
theMura S180-100 B UP
2060750
theMura S180-100 2W B UP
2060770
theMura S180-101 B UP
2060755
theMura S180 Slave B UP
2060760
1. General information
•
Passive infrared motion/presence detector for wall
mounting in device housing
•
Rectangular detection area (max. 14 m x 17 m)
(16 x 10 m at 2060658)
•
Mixed light measurement suitable for uorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Integrated buttons
•
Different models:
theMura S180-100: motion detector for normal require-
ments
theMura S180-101: presence detector with additional
functions, e.g. orientation light, acoustic function, additi-
onal channel H (isolated) etc.
theMura S180 Slave: for master/slave switching
theMura S180-100 2W: 2-wire motion detector com-
bined with a staircase light timer switch ELPA
•
Optional accessories:
theMura S180-101: theSenda S user remote control
(9070911) (theSenda S for short); theSenda P service
remote control (9070910) (theSenda P for short); the-
Senda B app remote control (9070985) and the corres-
ponding "theSenda Plug" app (iOS/Android) (theSenda
B/app for short); bezel frames adapted for different
switch ranges (can be ordered optionally)
theMura S180-100: bezel frames adapted for different
switch ranges (can be ordered optionally), see
www.theben.de/theMura
2. Safety
Assembly and installation should only be carried
out by a qualied electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
3. Proper use
•
The detector controls the lighting and HVAC (depending
on the model).
•
It is designed for wall mounting in an interior switch
range, e.g. in a corridor, staircase, cellar, toilet, etc.
•
For use in normal ambient conditions.
4. Connection
!
Use the same external conductor for all detectors and
buttons.
!
Illuminated buttons can only be used with a neutral
conductor connection.
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 10 A (L/L
↓
).
!
Secure device with an upstream type B or type C circuit
breaker (EN 60898-1) with a maximum of 2 A (H1/H2).
Individual switching (3-wire detector)
As master, the detector detects presence and brightness and
controls lighting.
L
N
P
Master
N L L
theMura S180-100 UP
AC/DC
L
N
PS H2H1
Master
N L L
theMura S180-101 UP
theMura S180-101 2.20 UP WH
