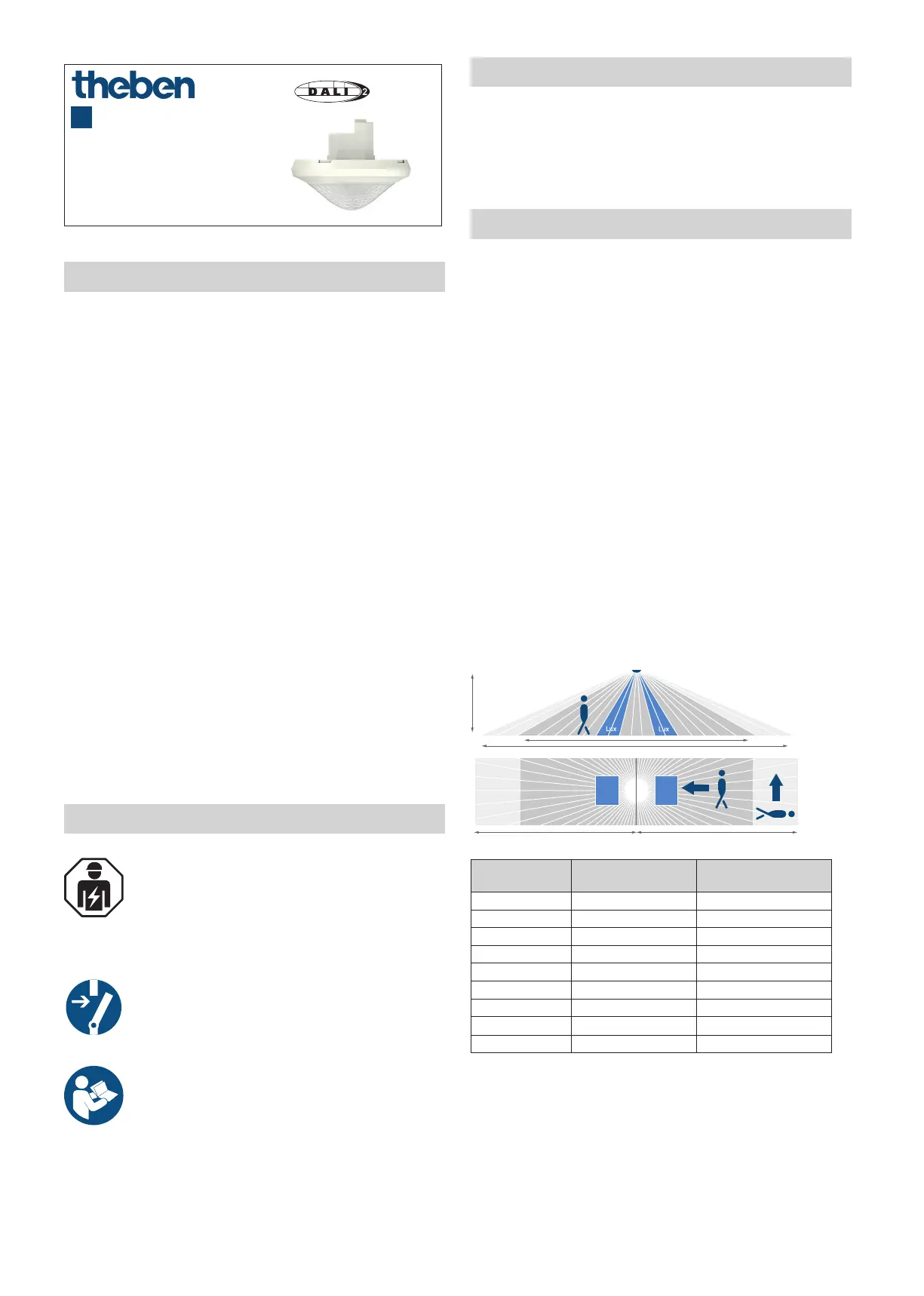

Side 1/16
1
thePassa P360-221 DALI UP WH
2010340
307421 01
06.02.2020
Presence detector
EN
1. General information
•
Passive infrared presence detector for ceiling installation
•
2 operating modes for lighting channel, switchable:
– 1 DALI broadcast lighting channel (factory setting) or
– 2 DALI addressable lighting channels
•
DALI-2 certied
•
2 separate detection zones
•
Rectangular detection area (max. 30 m x 5 m/150 m
2
)
•
Switch or constant light control mode with standby
function
•
Mixed light measurement suitable for uorescent lamps
(FL/PL/ESL), halogen/incandescent lamps and LEDs
•
Adaptable 2-channel light measurement
•
Fully or semi-automatic operation, switchable
•
Reduction of time delay when present briey (short-term
presence)
•
1 presence channel for external DALI relay, e.g. for HVAC
control
•
Accessories: SendoPro 868-A management remote
control (optional) (SendoPro for short); theSenda S user
remote control (optional) (theSenda S for short); the
-
Senda P service remote control (optional) (theSenda P for
short); theSenda B app remote control (optional) and the
corresponding "theSenda Plug" app (iOS/Android) (the-
Senda B/app for short); Cover 110: 9070591, 9070592
2. Safety
Assembly and installation should only be carried
out by a qualied electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before assembly/dismounting, disconnect the
power supply and ensure that the parts are no
longer live.
Read the entire manual and follow the
instructions.
Prior to commissioning and using the product, read
the operating instructions.
3. Proper use
•
The presence detector is used in passageways, stairca-
ses, garages, basements and warehouses for controlling
the lighting and HVAC.
•
The presence detector is intended for indoor installation.
4. Installation
Detection area
L The rectangular detection area enables the entire corridor
to be covered.
L The detection area is divided into two zones. These can
be activated or deactivated individually by remote control
(only with 1 DALI broadcast lighting channel).
L Recommended installation height: 2.0 m – 6.0 m.
The sensitivity of the presence detector decreases when
the installation height is increased. From a installation
height of 3.5 m, the detection areas of several detectors in
the edge zones should overlap.
L The detection range is reduced as the temperature
increases.
L The detection area is divided into different areas based on
the walking direction (frontal/across).
Detection areas: zone 1 and zone 2 (factory setting)
A
r
t
r
t
Zone 1 Zone 2
Installation height
(A)
Walking persons
frontal (r)
Walking persons
across (t)
2.0 m 16 x 3.5 m (56 m
2
) 16 x 3.5 m (56 m
2
)
2.5 m 18 x 4 m (72 m
2
) 22 x 4 m (88 m
2
)
3.0 m 20 x 4.5 m (90 m
2
) 30 x 4.5 m (135 m
2
)
3.5 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
4.0 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
4.5 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
5.0 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
5.5 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
6.0 m 20 x 5 m (100 m
2
) 30 x 5 m (150 m
2
)
All gures are guidance values (Detection areas according to sensNORM
IEC 63180, see data sheet).
