Side 1/4

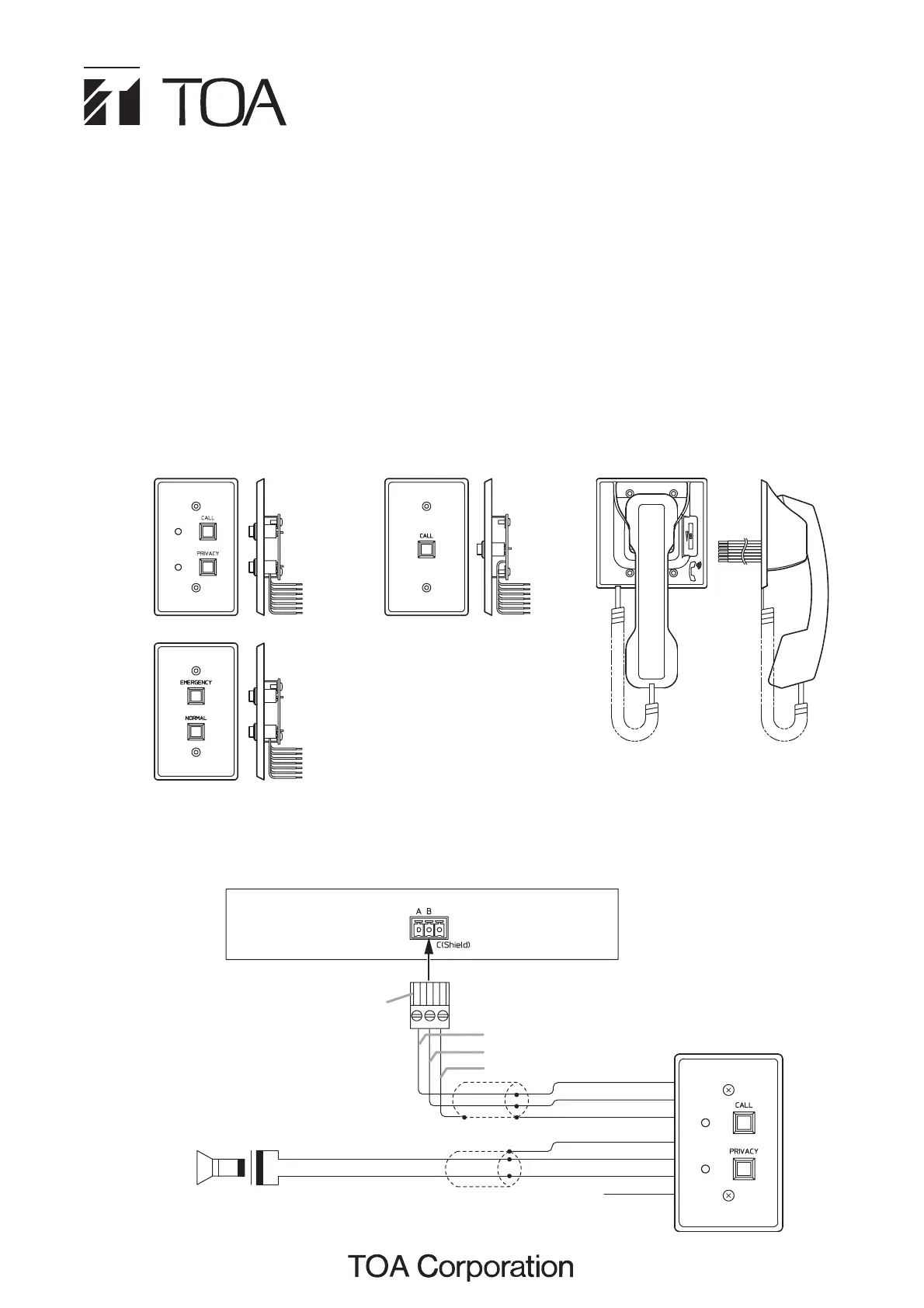

3P removable terminal plug

(supplied with the Substation

interface unit)

Substation interface unit

2-core shielded cable

High-impedance speaker

(Impedance: 600 Ω or more)

Switch panel

(Figure shows the RS-140.)

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Blue (COM)

Green (HOT)

N.C.

Purple (H)

Brown

Red

Orange

To the substation connection terminal

1. GENERAL DESCRIPTION

The RS-140, RS-143, and RS-144 are substations to be connected to the 2-Core Shielded Substation

Interface Unit. The RS-141, designed exclusively for indoor-use in combination with the RS-140, RS-143, or

RS-144, is an option handset to make handset conversations.

For operation of the units, refer to the N-8000 series instruction manual.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

2. APPEARANCE

RS-140, RS-143, RS-144

RS-141

SWITCH PANELS

OPTION HANDSET

INSTALLATION MANUAL

Note

Cut out the unused Wire (purple) to

avoid short-circuiting.

133-41-084-20

3. CONNECTIONS

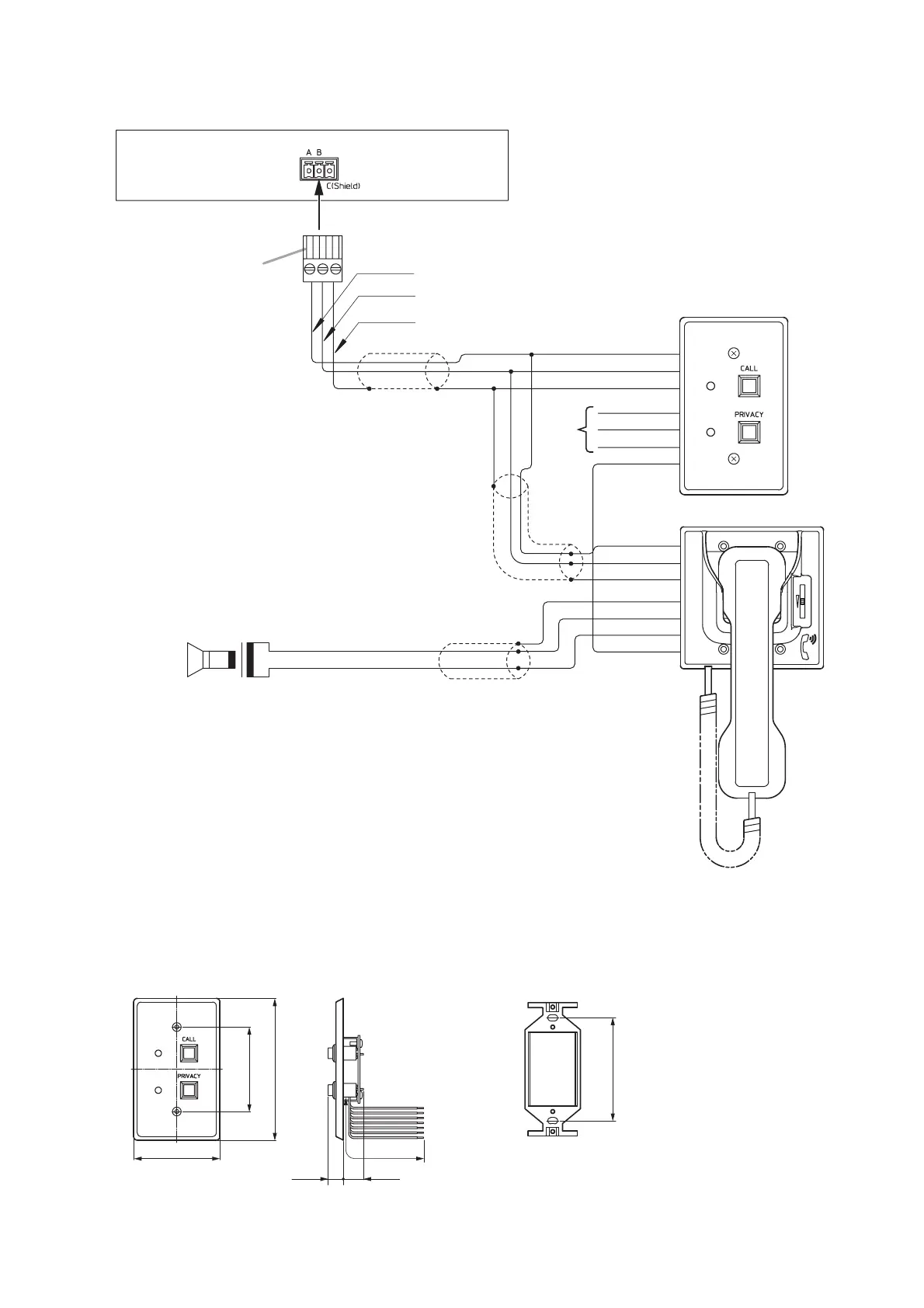

3.1. Switch Panel Connections (When the Option Handset is not used)

]341-SR[]041-SR[

[RS-144]

[RS-141]

Substation interface unit

3P removable terminal plug

(supplied with the Substation

interface unit)

High-impedance speaker

(Impedance: 600 Ω or more)

Switch panel

(Figure shows the RS-140)

RS-141

N.C.

2-core shielded cable

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Blue (COM)

Green (HOT)

Purple (H)

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Purple (H)

Brown

Red

Orange

To the substation connection terminal

4. INSTALLATION

4.1. Switch Panel Installation

4.1.1. Dimensional diagram

[RS-140] [Mounting bracket (Supplied with the RS-140/143/144)]

12.3

Unit: mm

16.3

200 or less

68.5

115

83.5

Note: The dimensions of RS-143 and RS-144 are the same as above.

Note

Cut out unused wires to avoid short-circuiting.

3.2. Switch Panel and Option Handset Connections

Produkt Specifikationer

Mærke:	TOA
Kategori:	Samtaleanlæg
Model:	RS-140
Bredde:	70 mm
Dybde:	28.6 mm
Højde:	115 mm
Vægt:	80 g
Antal pr. pakke:	1 stk
Produktfarve:	Rustfrit stål
Driftstemperatur (T-T):	0 - 40 °C
Monteringstype:	Væg
Kapabilitet:	N-8000RS / N-8010RS
Mærke kompatibilitet:	TOA
Række:	0.5 km (546 yd)/φ0.5 mm (AWG24), 0.8 km (874 yd)/φ0.65 mm (AWG22), 1.3 km (1421 yd)/φ0.9 mm (AWG19)
