Note: For operation of the units, refer to the N-8000 series operating instructions.

1. GENERAL DESCRIPTION

The RS-142 is a switch board to be connected to the 2-Core Shielded Substation Interface Unit. You can

make desired switch panels to meet intended purposes by combining the RS-142 with the separately

prepared operation panel having 2 switches to be used as call buttons.

The RS-142 features handset conversations by using the RS-141 indoor-use Option Handset in combination.

2. CONNECTIONS

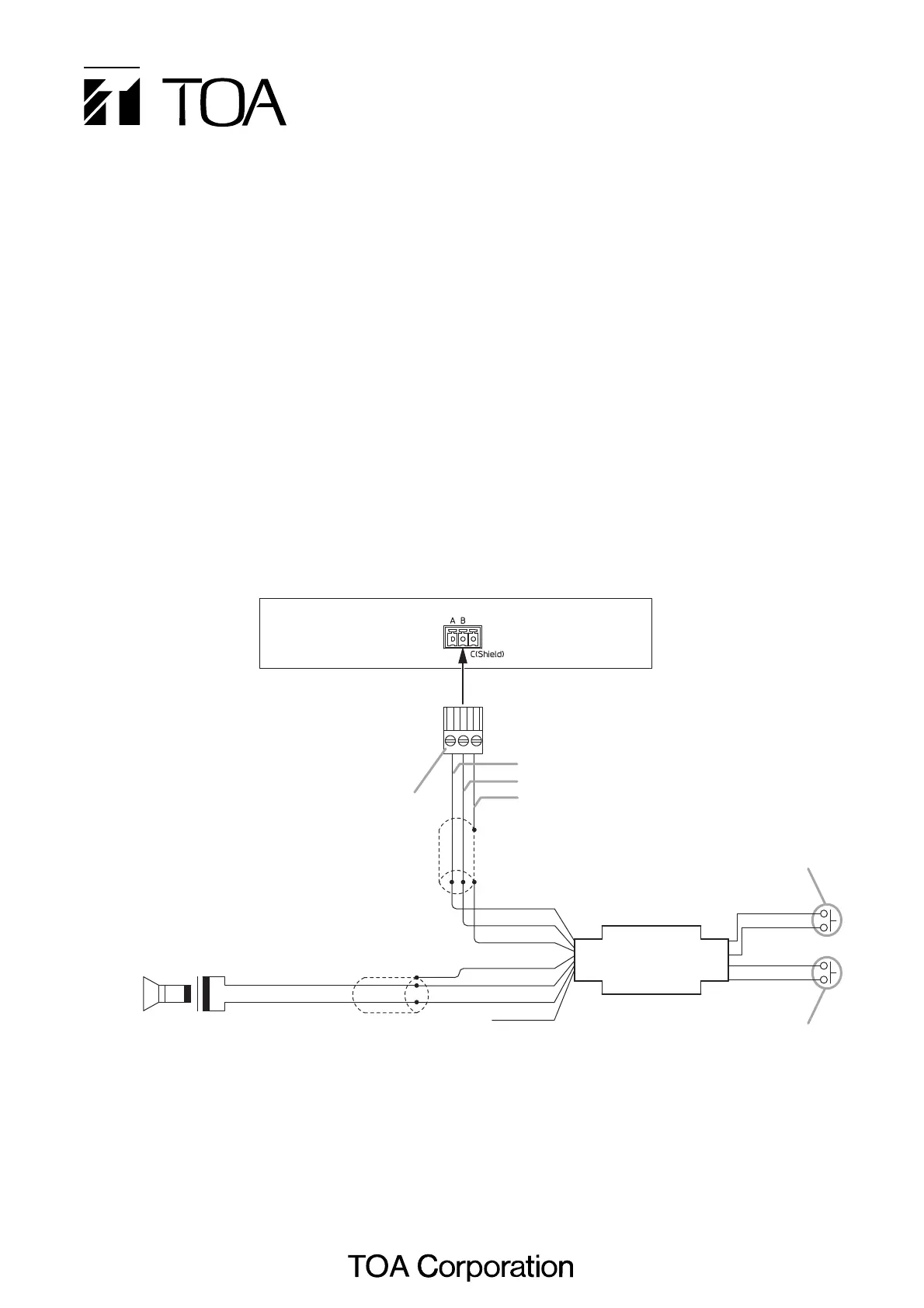

2.1. When the Option Handset Is Not Used

RS-142SWITCH BOARD

INSTALLATION MANUAL

RS-142

3P removable terminal plug

(supplied with the Substation

interface unit)

Substation interface unit

2-core shielded cable

High-impedance speaker

(Impedance: 600 Ω or more)

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Blue (COM)

Green (HOT)

N.C.

Purple (H)

Brown

Red

Orange

Switch for Call button 1*

Switch for Call button 2*

* Separately prepare this switch.

Orange (N

)

Brown (E+)

Gray (N+)

White (E

)

To the substation connection terminal

Note

Cut out the unused Wire (purple) to avoid short-circuiting.

133-41-107-4A

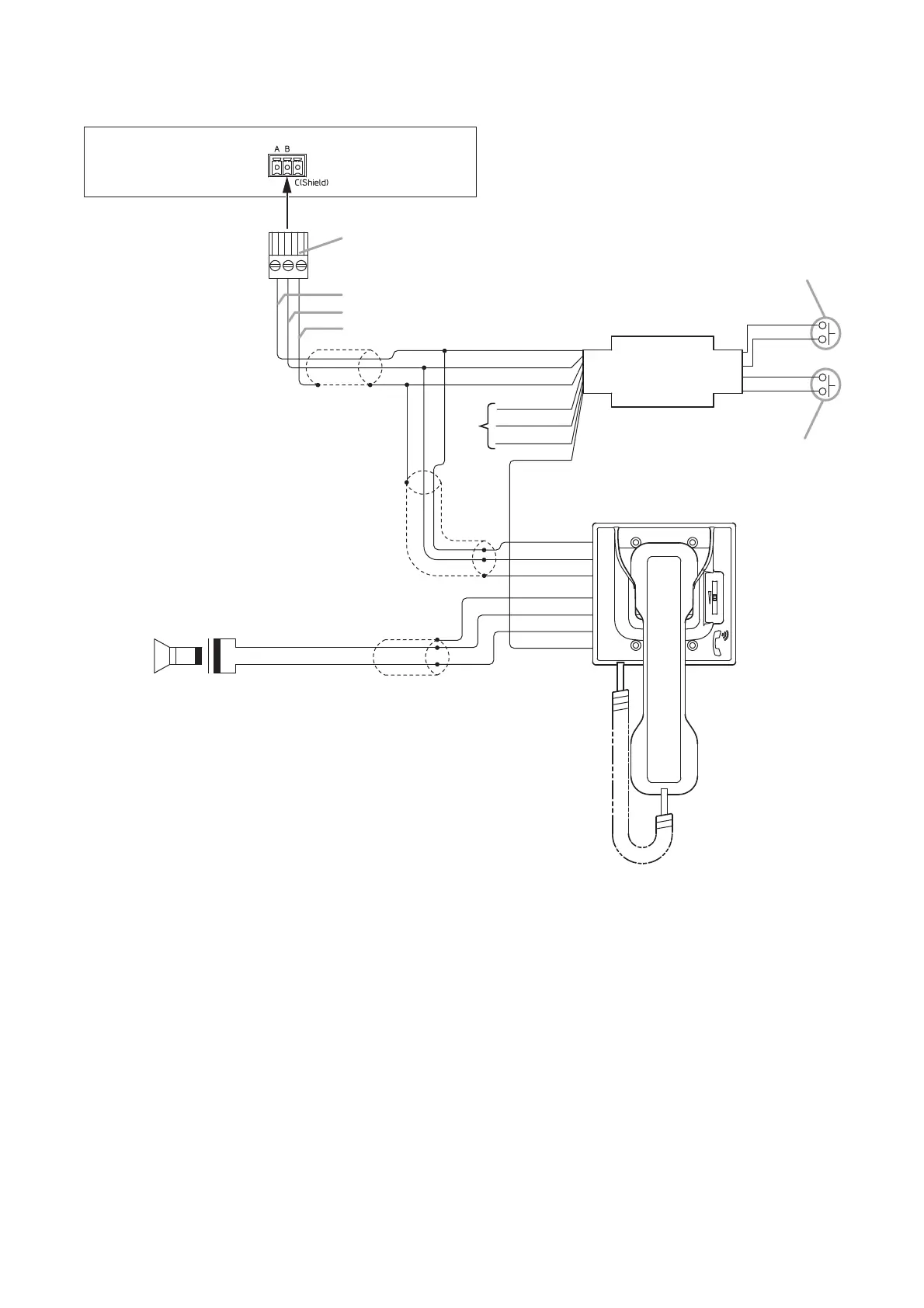

2.3. When the Option Handset Is Used in Combination

N.C.

Substation interface unit

3P removable terminal plug

(supplied with the Substation

interface unit)

High-impedance speaker

(Impedance: 600 Ω or more)

RS-142

RS-141

2-core shielded cable

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Blue (COM)

Green (HOT)

Purple (H)

Brown (A)

Red (B)

Orange (C)

Yellow (C+)

Green (B+)

Blue (A+)

Purple (H)

Brown

Red

Orange

To the substation connection terminal

Switch for Call button 1*

Switch for Call button 2*

* Separately prepare this switch.

Orange (N

)

Brown (E+)

Gray (N+)

White (E

)

Note

Cut out unused wires to avoid short-circuiting.

Produkt Specifikationer

Mærke:	TOA
Kategori:	Samtaleanlæg
Model:	RS-142
Vægt:	30 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Produkttype:	Skiftebord
Driftstemperatur (T-T):	0 - 40 °C
Monteringstype:	Væg
Kapabilitet:	TOA N-8000RS, N-8010RS 2-Core
Mærke kompatibilitet:	TOA
Række:	0.5 km (546 yd)/φ0.5 mm (AWG24), 0.8 km (874 yd)/φ0.65 mm (AWG22), 1.3 km (1421 yd)/φ0.9 mm (AWG19)
