Thank you for purchasing TOA's Substation.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Note: For operation of the units, refer to the N-8000 series operating instructions.

1. GENERAL DESCRIPTION

The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.

The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with

Dust/Water Protection Conforming to IP54 level.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

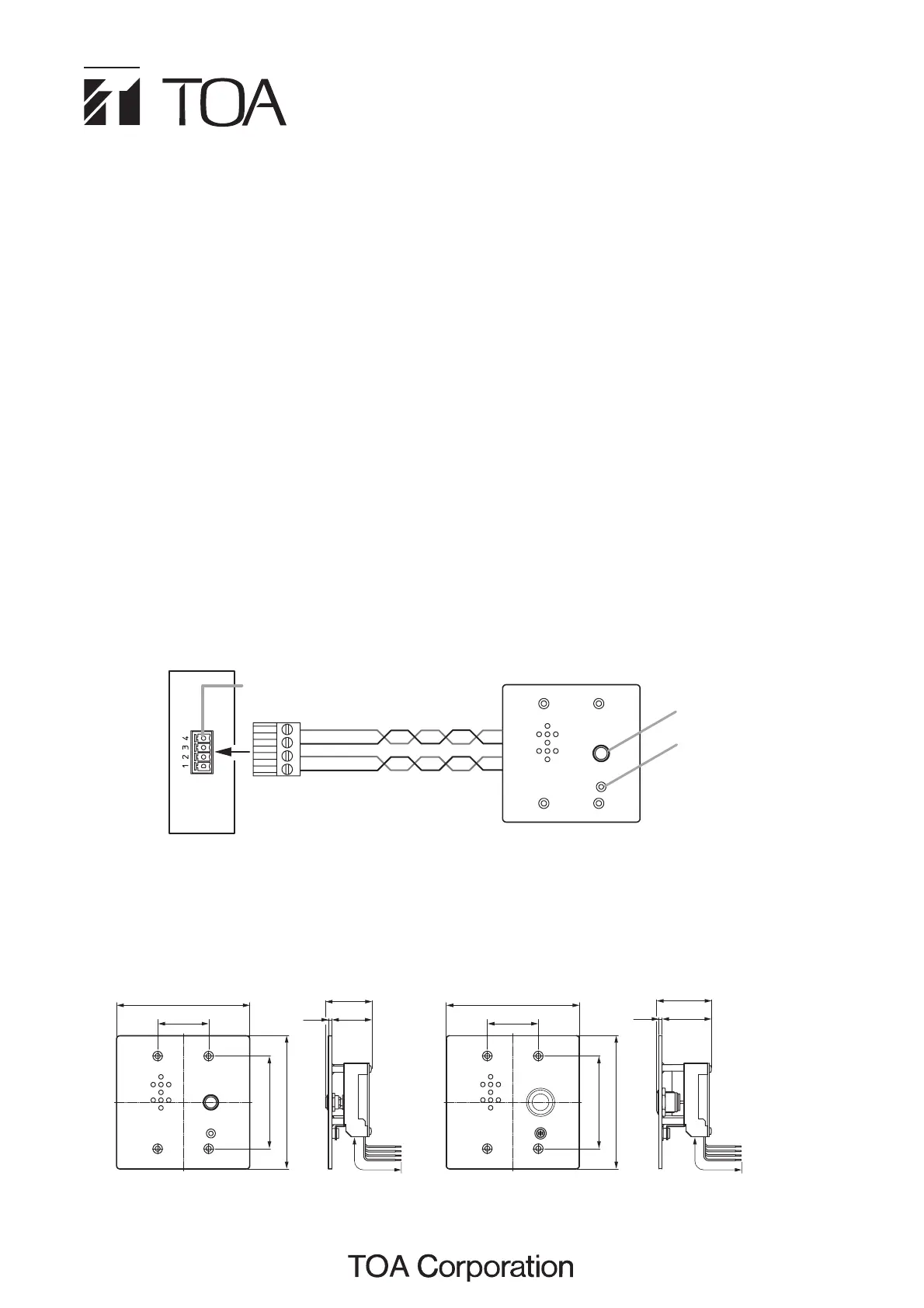

2. CONNECTIONS

RS-450

RS-460

RS-470

SUBSTATIONS

INSTALLATION MANUAL

Note: The figure represents the RS-450.

RS-450, RS-460,

or RS-470

Call button

Microphone

N-8400RS

Substation interface unit

Substation connection terminal

Line 1 : Brown, Line 2: Red,

Line 3 : Orange, Line 4: Yellow

Yellow

Orange

Red

Brown

Two pair of twisted pair cable

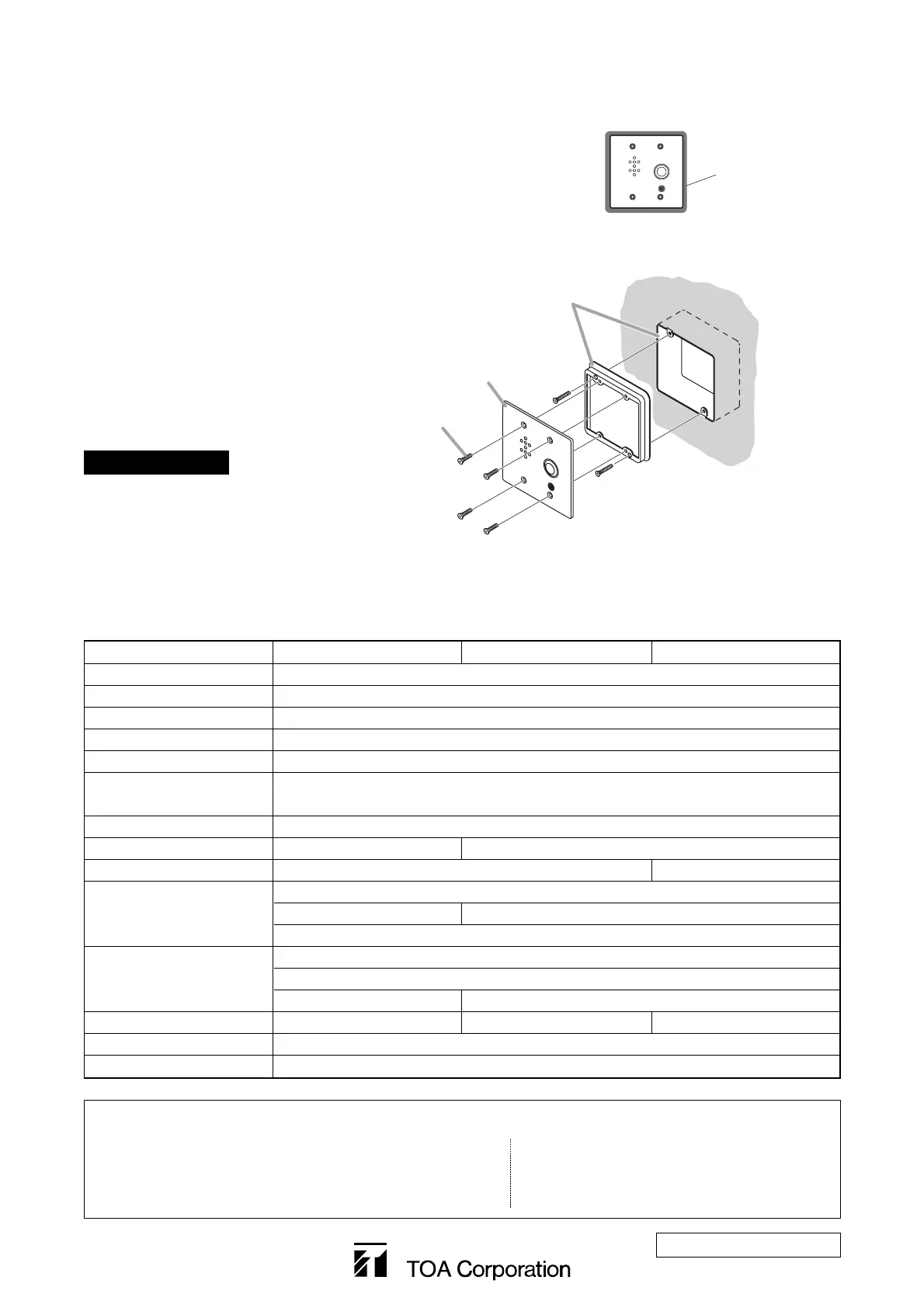

3. INSTALLATION

[RS-450 dimensional diagram] [RS-460/470 dimensional diagram]

120

49.5

44.5

200 or less

41.5

35.53

120

83.5

120

83.5

Unit: mm

200 or less

Produkt Specifikationer

Mærke:	TOA
Kategori:	Samtaleanlæg
Model:	RS-460
Bredde:	120 mm
Dybde:	49.5 mm
Højde:	120 mm
Vægt:	540 g
Antal pr. pakke:	1 stk
Produktfarve:	Sølv, rustfrit stål
Produkttype:	Understation
Driftstemperatur (T-T):	-10 - 50 °C
Materiale:	Metal
Certificering:	BS EN62262: 2002
Monteringstype:	Væg
Kapabilitet:	N-8400RS
Mærke kompatibilitet:	TOA
Række:	1 km (1093 yd)/φ0.5 mm (AWG24), 1.5 km (1640 yd)/φ0.65 mm (AWG22), 2 km (2187 yd)/φ0.9 mm (AWG19)
