Thank you for purchasing TOA's Substation.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Note: For operation of the units, refer to the N-8000 series operating instructions.

1. GENERAL DESCRIPTION

The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.

The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with

Dust/Water Protection Conforming to IP54 level.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

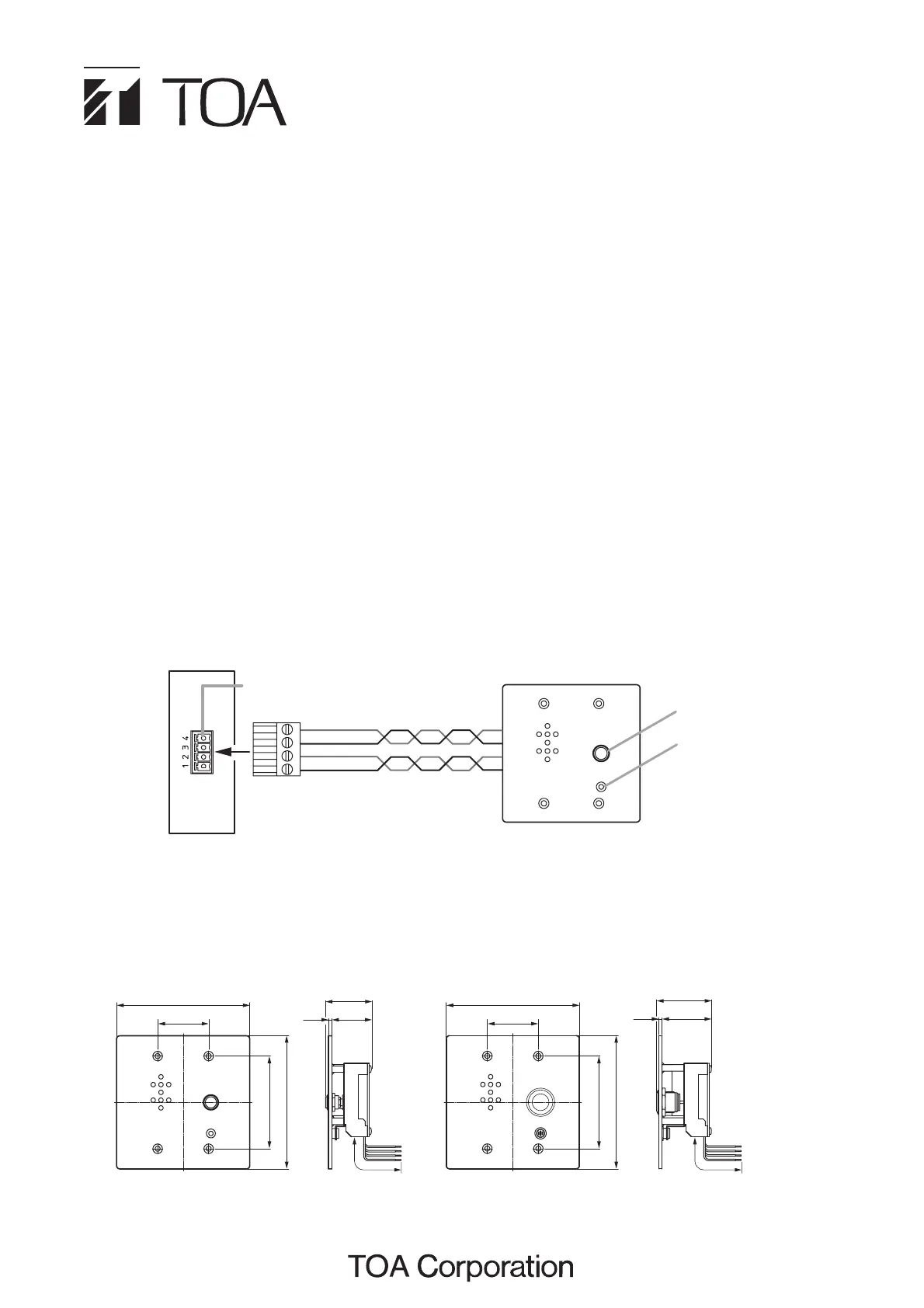

2. CONNECTIONS

RS-450

RS-460

RS-470

SUBSTATIONS

INSTALLATION MANUAL

Note: The figure represents the RS-450.

RS-450, RS-460,

or RS-470

Call button

Microphone

N-8400RS

Substation interface unit

Substation connection terminal

Line 1 : Brown, Line 2: Red,

Line 3 : Orange, Line 4: Yellow

Yellow

Orange

Red

Brown

Two pair of twisted pair cable

3. INSTALLATION

[RS-450 dimensional diagram] [RS-460/470 dimensional diagram]

120

49.5

44.5

200 or less

41.5

35.53

120

83.5

120

83.5

Unit: mm

200 or less

4. SPECIFICATIONS

133-21-947-60

URL: http://www.toa.jp/

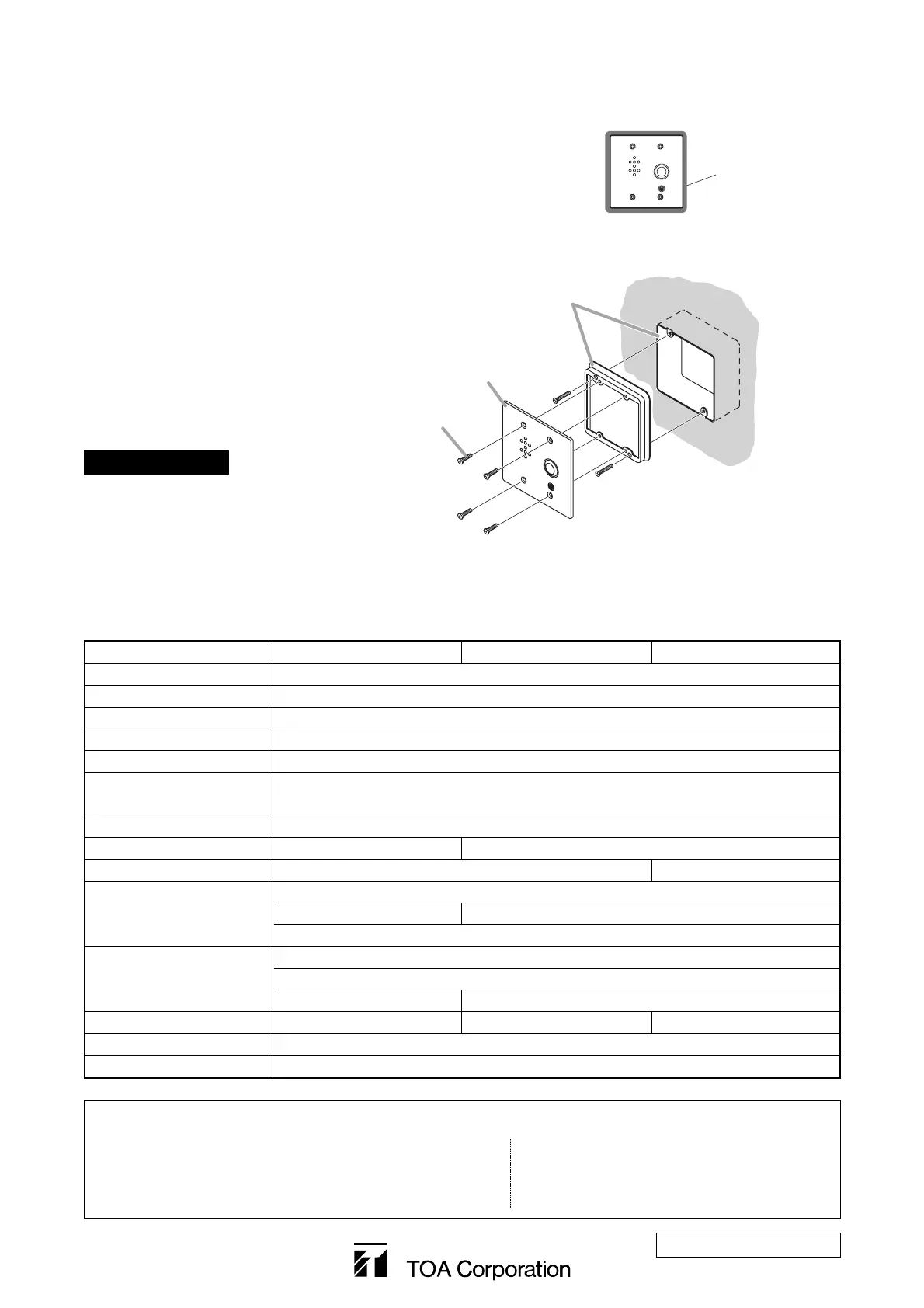

Mount the substation to the YC-302 2-gang electrical box mounted in the wall.

Notes

• When using the PA paging function, keep the station as far away from

the PA paging speaker as possible to avoid acoustic feedback.

• When installing the RS-470 at outdoor or locations where it gets wet

with water, tightly seal the panel edges. Besides, provide a weep hole

at the underside of the mounting box to permit water to drain off.

Machine screw M4 x 25

(accessory)

Note: This figure represents the RS-460/470.

YC-302

2-gang electrical box

(option)

Substation

Wall surface

Seal the panel edges.

RS-470's front panel

[In-wall mounting using an electrical box]

Accessory screws

The RS-450, RS-460, and RS-470 come with 2

types of screws: M4 x 25 and UNC No. 6-32 x 18.

For the electrical box provided with unified

threads, use the UNC No. 6-32 x 18.

Model No. RS-450 RS-460 RS-470

Call Button Momentary (Emergency call: Press twice within 400 ms.)

Rated Input 1 W

Internal Speaker Cone-type

Internal Mic Electret condenser type

Wiring Twisted pair cables (2-pair)

Transmission Range 1000 m/ø0.5 mm (AWG24), 1500 m/ø0.65 mm (AWG22),

2000 m/ø0.9 mm (AWG19)

Operating Temperature –10 to +50°C (Temperature range not to freeze the speaker and switch)

Housing Protection

BS EN62262: 2002: IK02 equivalent

Dust/Water Protection

IP54

Finish (Panel) Stainless steel, hairline

(Call button) Resin, black Metal, silver

(Circuit board) (RS-470 only) Weather-resistant coating

Dimensions (w) 120 mm

(h) 120 mm

(d) 41.5 mm 49.5 mm

Weight 510 g 540 g 550 g

Accessory No. 6-32 UNC x 18 ... 4, Machine screw M4 x 25 ... 4

Applicable Box 2-gang electrical box: YC-302 (option)

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany
