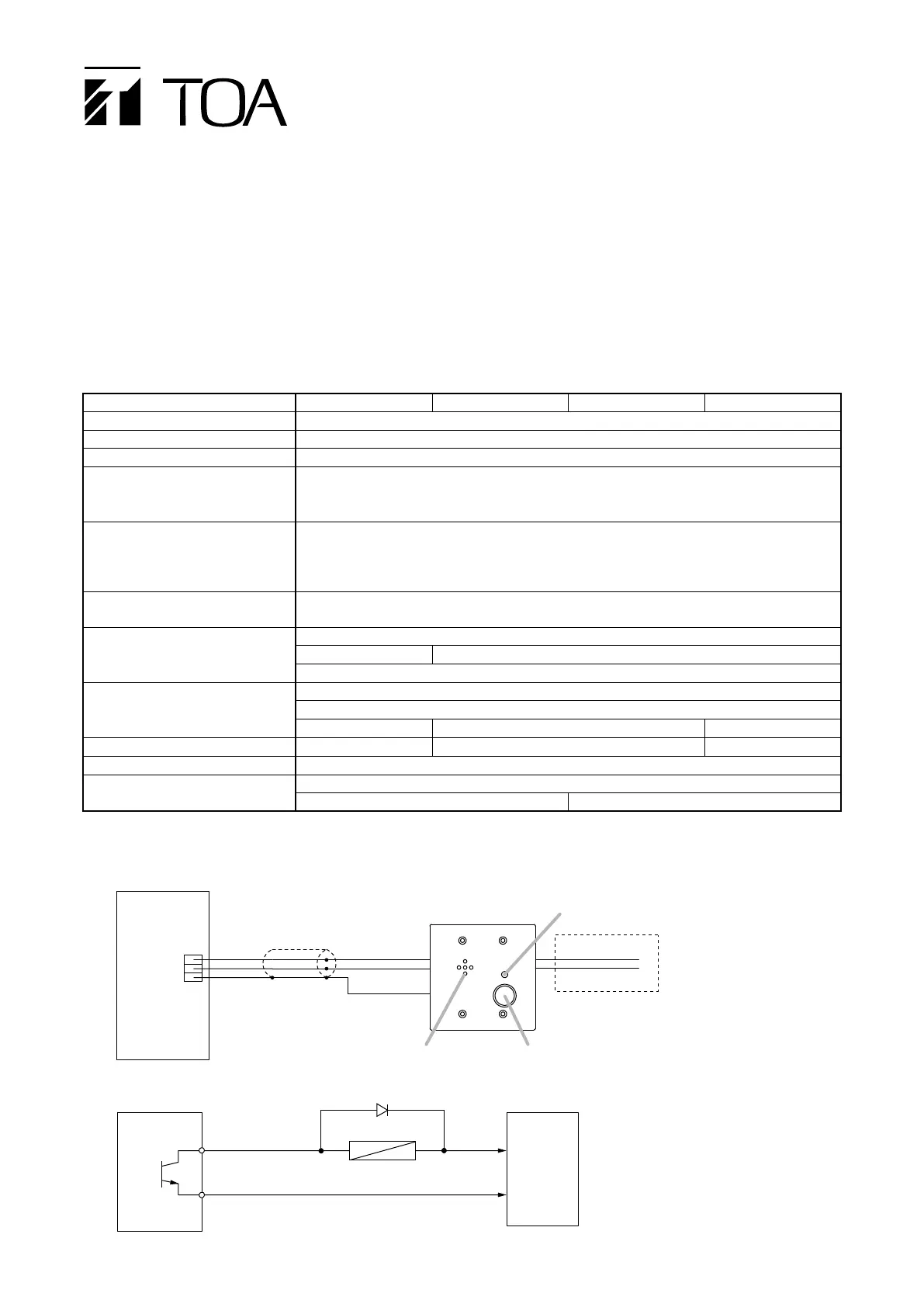

RS-150, RS-160, RS-170, RS-180SUBSTATION

INSTALLATION MANUAL

1. GENERAL DESCRIPTION

TOA's RS-150, RS-160, RS-170, and RS-180 are Substations designed to be used with TOA's N-8000 Series Packet

Intercom System.

Thank you for purchasing TOA's Substation.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Note: For operation of the units, refer to the N-8000 series operating instructions.

3. CONNECTIONS

[Connection to the N-8000RS or N-8010RS (for 25 V line)]

Model No. RS-150 RS-160 RS-170 RS-180

Rated Input 1 W

Rated Impedance 625 Ω (1 W, 25 V)

Internal Speaker 4 cm dynamic type

Transmission Range 0.5 km/ø0.5 mm (AWG24)

0.8 km/ø0.65 mm (AWG22)

1.3 km/ø0.9 mm (AWG19)

Control Output (RS-180 only)

Open collector,

Withstand voltage:

30 V DC,

Control current: 30 mA

(The open collector output is kept turned on till the conversation

is finished after the call button was pressed.)

Operating Temperature

–10 to +50°C

(Temperature range not to freeze the speaker and switch)

Finish (Panel) Stainless steel, hairline

(Call button) Resin Metal

(Printed circuit board) (RS-170, RS-180 only) Weather-resistant coating

Dimensions (w) 120 mm

(h) 120 mm

(d) 48.5 mm 57.5 mm 58.5 mm

Weight 410 g 540 g 570 g

Accessories Machine screw M4 x 25 ... 4, UNC No. 6-32 x 18 ... 4

Applicable Box (For ush-mount) 2-gang electrical box: YC-302 (option)

(For surface-mount) Wall-mount box: YC-822 (option) Wall-mount box: YC-822/YC-823 (option)

Open collector output

(RS-180 only)

(N-8000RS or

N-8010RS)

Orange

Brown

Black

Speaker Call button

Status indicator

(RS-180 only)

Blue (HOT)

White (COM)

RS-150/160/170/180

External

power supply

Relay

Diode

24 V DC

Blue (HOT)

White (COM)

RS-180

GND

Open collector output: 24 V DC (max.), 30 mA

[Connection to the external relay (RS-180 only)]

Note

Cut out the control cables if they are

not used to avoid short-circuiting.

2. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may

be required to take adequate measures.

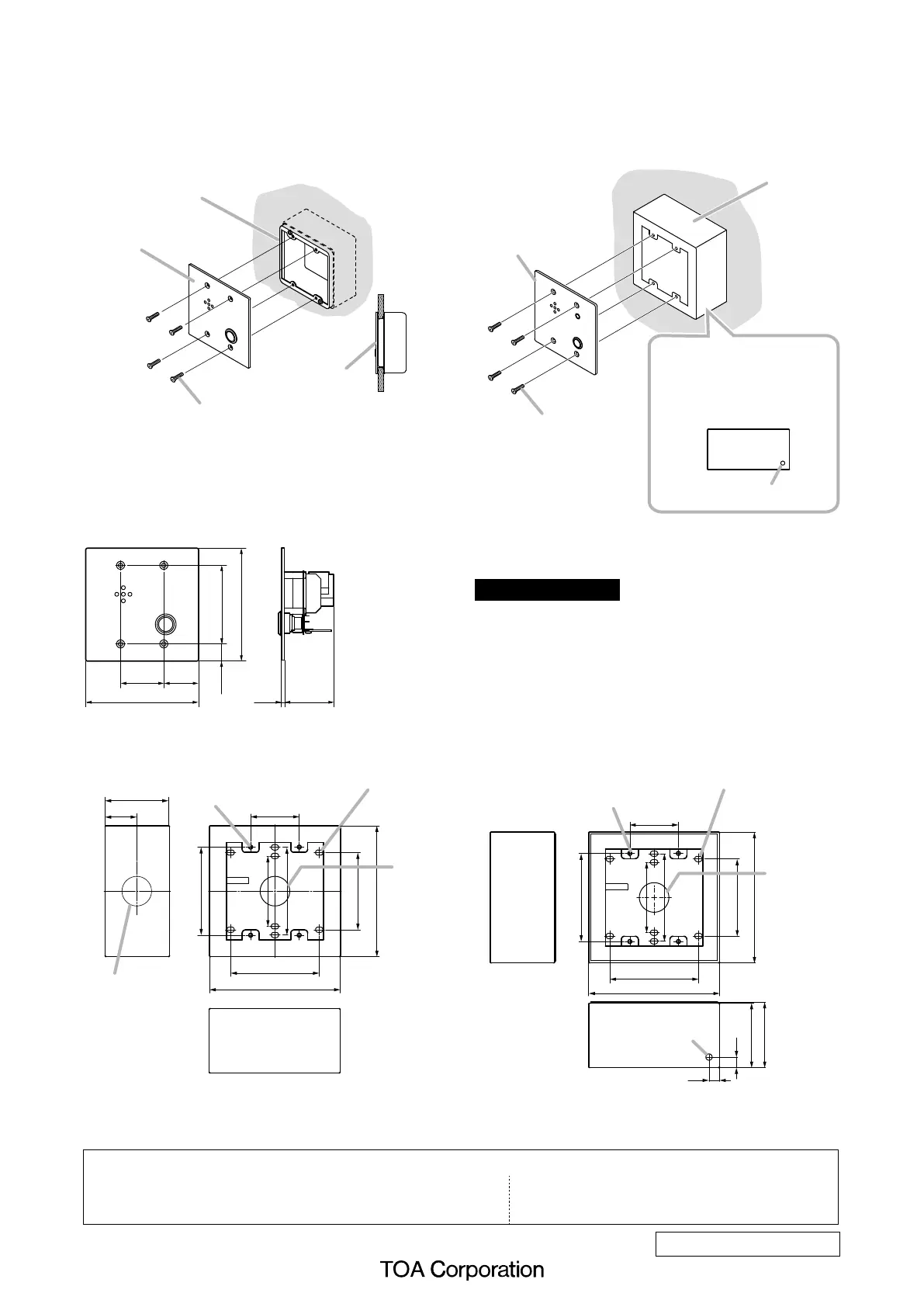

4. MOUNTING

YC-822/823

Wall surface

Note

Machine screw M4 x 25

(accessory)

In the case of the YC-823,

install it facing the ø6 mm

weep hole side down.

YC-823 bottom

ø6 mm weep hole

RS-150/160/170/180

Note

This figure is

the YC-822.

Note

This figure is

RS-160/170.

RS-150/160/170/180

Machine screw M4 x 25

(accessory)

2-gang electrical box

YC-302 (option)

Wall surface

Note

This figure is

RS-160/170.

Wall

[Section view]

[Flush mounting using an electrical box] [Wall surface mounting using the Wall-mount box]

Note

When using the PA paging function, keep the station as far away from the PA paging

speaker as possible to avoid acoustic feedback.

The RS-150, RS-160, RS-170, and RS-180 come with 2

types of screws: M4 x 25 and UNC No. 6-32 x 18.

For the electrical box provided with unified threads, use the

UNC No. 6-32 x 18 screw.

Accessory screws

120

52.5

43.5 (RS-150)

2 (RS-150)

18.2

83.5

120

[Dimensional diagram]

φ28 hole

8-5×7 oval hole (for wall mounting)

4-M4 (for substation mounting)

124

φ6 weep hole

83.5

66.7

124

[YC-823 dimensional diagram]

Unit: mm

φ28 (Knockout hole)

124

φ28 hole

83.5

66.7

8-5×7 oval hole (for wall mounting)

4-M4 (for substation mounting)

124

[YC-822 dimensional diagram]

Unit: mm

Mount the substation to an electrical box mounted to the wall. Attach the Substation to the YC-822 (Indoor wall-mount

box) or YC-823 (Outdoor wall-mount box)

installed on a

wall.

URL: http://www.toa.jp/

133-06-00030-00

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany
