10G SFP+ Media Converter

Expand Your Ethernet Network

MC420L

For technical support and other information, please visit

https://support.omadanetworks.com/, or simply scan the QR code.

To ask questions, find answers, and communicate with TP-Link

users or engineers, please join the TP-Link Community.

Fiber Cable

Package Contents: Media Converter, Power Adapter, User Guide

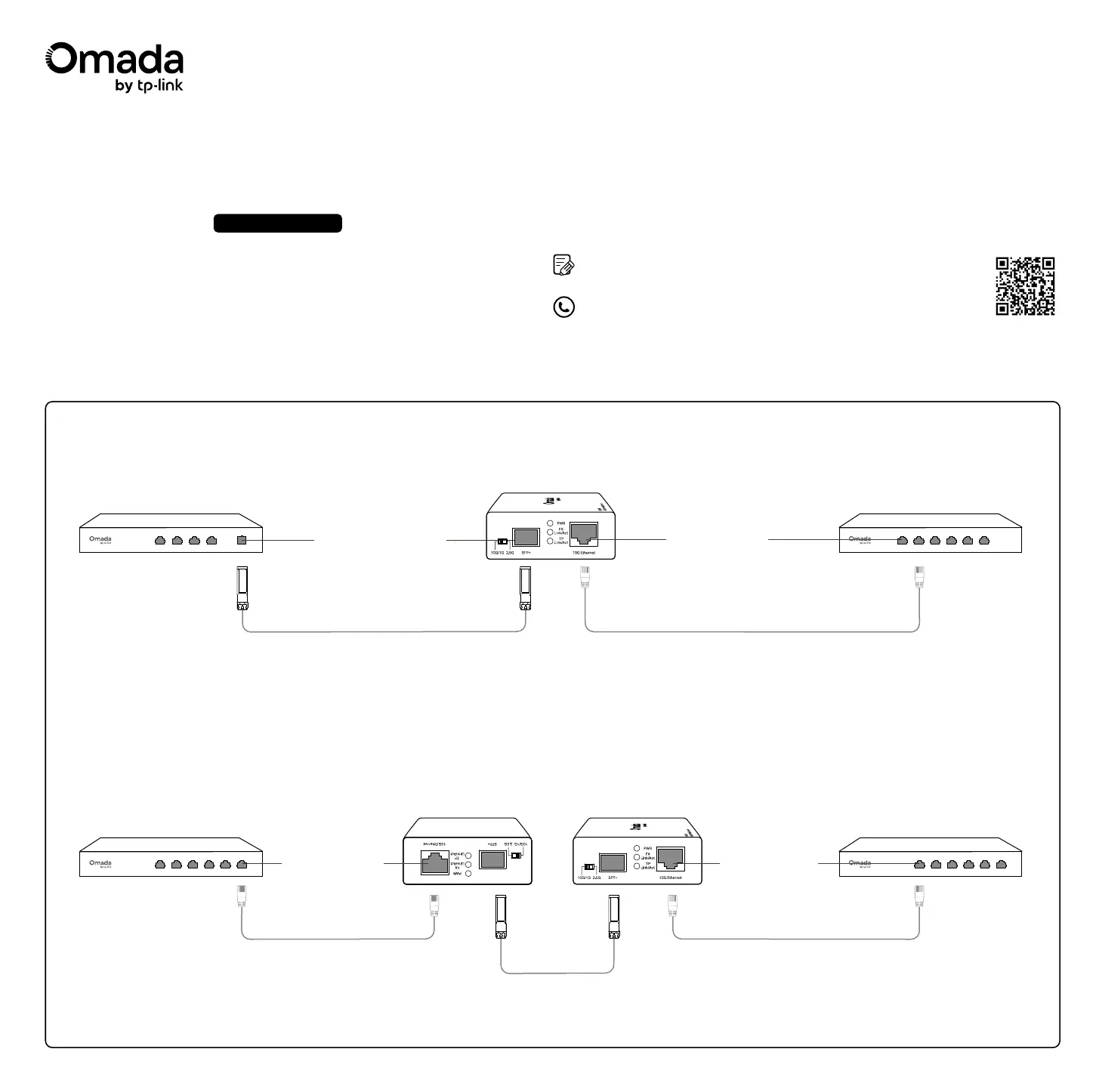

Scenario 1: Connect Devices with and without Optical Interfaces

Ethernet Device

with Optical Interfaces

Media Converter

10GBASE-SR Interface

Ethernet Device

without Optical Interfaces

Twisted-Pair Cable

Note:

Two converters with a pair of SFP/SFP+ modules can work cooperatively.

Scenario 2: Connect Devices without Optical Interfaces

Fiber Cable

Twisted-Pair Cable Twisted-Pair Cable

Ethernet Device

without Optical Interfaces

Media Converter Media Converter

Ethernet Device

without Optical Interfaces

SFP/SFP+ Module

Ethernet Interface

Note:

1. Using an Omada SFP+ module on the MC420L is recommended, as modules from other vendors may be incompatible.

2. MC420L features a DIP switch for mode selection. The 10G/1G Mode is enabled by default (switch toggled left). To activate the 2.5G Mode, toggle the switch to the right.

3. When using the 1G SFP module, you might have to manually set the edge device connected to the Ethernet port to a rate of 1 Gbps.

Ethernet Interface
