Side 1/80
1
HDMI over Cat6 Extenders for
Medical Applications
Extender Kit Model: B127M-101-H
Receiver Model: B127M-100-H
Splitter Model: B127M-004-H
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2021 Tripp Lite. All rights reserved.
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR® surge protector in our monthly drawing!
tripplite.com/warranty
Español 17 • Français 33 • Русский 49 • Deutsch 65
2
Package Contents
B127M-004-H Splitter Unit
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;
Output: 24V 1A)
• International Plug Adapters: NEMA 1-15P North America;
AS/NZS 3112 Australia; BS 1363 U.K.; CEE 7/16 Schuko
• Mounting Hardware
• Owner’s Manual
B127M-100-H Receiver Unit
• Mounting Hardware
• Owner’s Manual
B127M-101-H Extender Kit
• External Power Supply (Input: 100-240V, 50/60 Hz, 0.6A;
Output: 24V 1A)
• International Plug Adapters: NEMA 1-15P North America;
AS/NZS 3112 Australia; BS 1363 U.K.; CEE 7/16 Schuko
• Mounting Hardware
• Owner’s Manual
Optional Accessories
• N202-Series Cat6 24 AWG Solid-Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0
Cables
3
Product Features
B127M-004-H
• Split and extend an HDMI signal to four receivers up to 230 ft.
(70 m) away over STP Cat6 cabling
• Supports video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• Power-over-Cable (PoC) technology provides power from splitter
unit to all connected receiver units
• HDCP 2.2 and HDR-compatible
• Multi-resolution support allows all connected receivers to
connect to any 1080p, 4K/30 Hz or 4K/60 Hz HDMI display
without affecting the resolution of the other connected displays
• Local HDMI port supports 4K/60 Hz video
• Meets IEC 61000-4-2 (ESD) Test Level 4 Standard (8 KV
Contact, 15 KV Air), IEC 60601-1-2 & CISPR 11 Group 1
Class EMI/RFI Standards for medical environments
• Includes mounting hardware that enables the splitter unit to be
wall-mounted, rack-mounted or pole-mounted
• Plug-and-play – no software or drivers required
4
Product Features
B127M-100-H
• Receive an HDMI signal from a B127M transmitter/splitter up
to 230 ft. (70 m) away over STP Cat6 cabling
• Supports video resolutions up to 4K x 2K (3840 x 2160) @
60 Hz, as specified in HDMI 2.0, with 4:4:4 Chroma
Subsampling
• Support up to 7.1-channel surround sound audio
• Power-over-Cable (PoC) technology provides power to the
receiver from a connected extender/splitter
• HDCP 2.2 and HDR-compatible
• Meets IEC 61000-4-2 (ESD) Test Level 4 Standard (8 KV
Contact, 15 KV Air), IEC 60601-1-2 & CISPR 11 Group 1
Class EMI/RFI Standards for medical environments
• Includes mounting hardware that enables the receiver unit to
be wall-mounted, rack-mounted or pole-mounted
• Plug-and-play – no software or drivers required
6
Disclaimer
Before installation, please check the following settings of your
source(s) and TV/monitor(s):
1. Set display to 60 Hz. Double-check factory settings, as
default can be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0.
Some displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some
displays may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on
your TV/monitor. Confirm with your TV/monitor manufacturer
which HDMI ports support UHD Deep Color.
Note: To connect a local monitor to the transmitter in your installation,
the UHD Deep Color setting may need to be disabled on your local TV/
monitor (depending make/mode) to achieve 4K @ 60 Hz resolution.
7

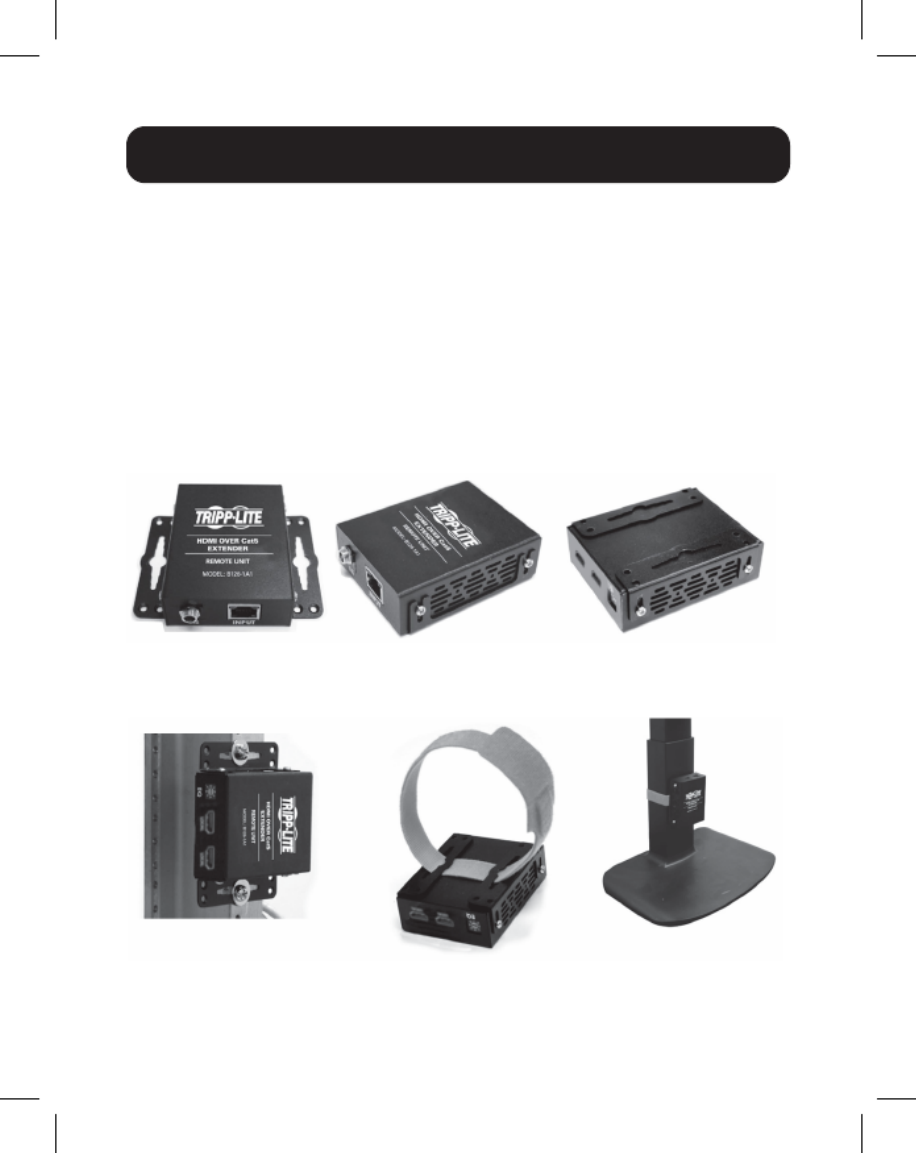

Mounting Instructions
The B127M-004-H, B127M-100-H and B127M-101-H include
mounting hardware that allows for a variety of mounting methods.
The following images illustrate how the included mounting
brackets can be attached for different installations.
Note: The model shown in the below images is for illustrative purposes
only. Your product may vary by model number, size or port orientation.
The mounting options for all over Cat6 units are the same.
Wall-Mount
19” Rack-Mount Pole-Mount
8
Standard Splitter Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid-
wire Cat6 cable. Using stranded-wire Cat6 cable or cable with a
gauge (AWG) size higher than 24 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.
• The installation diagram shows a B127A-004-H splitter unit and
B127M-100-H receiver units.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the units.
10
Standard Extender Kit Installation
3. Using an HDMI 2.0 cable Optional for B127M-004-H:
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127M-004-H unit.
4. Using Cat6 cable, connect the RJ45 output ports on the
local splitter unit to the RJ45 input ports of up to four
remote receiver units.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
7. Connect the external power supply to the splitter unit. Plug
it into an available wall outlet or a Tripp Lite surge protector,
power distribution unit (PDU) or uninterruptible power supply
(UPS). The POWER (green) LED on the local splitter unit
will illuminate to indicate the unit is receiving power from
the external power supply. The POWER (green) LED on the
remote receiver units will illuminate to indicate the unit
is receiving power from the local splitter unit through PoC
technology.
11
Standard Extender Kit Installation
8. Turn on the power to the HDMI source. The OUTPUT (orange)
LED on the local splitter unit will illuminate to indicate a
signal is being received from the source.
9. The (orange) RJ45 LED will illuminate on both the local
splitter and remote receiver units to indicate a signal is being
received from the source to display. The screen should now
display on the connected monitor(s).
12
Standard Extender Kit Installation
Notes:
• Test to ensure the entire installation works properly before pulling
cables through ceilings/walls.
• To achieve maximum distance and performance, use 26 AWG solid-
wire Cat6 cable. Using stranded-wire Cat6 cable or cable with a
gauge (AWG) size higher than 26 AWG will result in shorter extension
distance. Higher-gauge cabling, such as 26 AWG, has a more limited
transmission capability than lower-gauge cabling. All Tripp Lite
N202-Series Cat6 cables are made with 24 AWG solid-wire cabling.

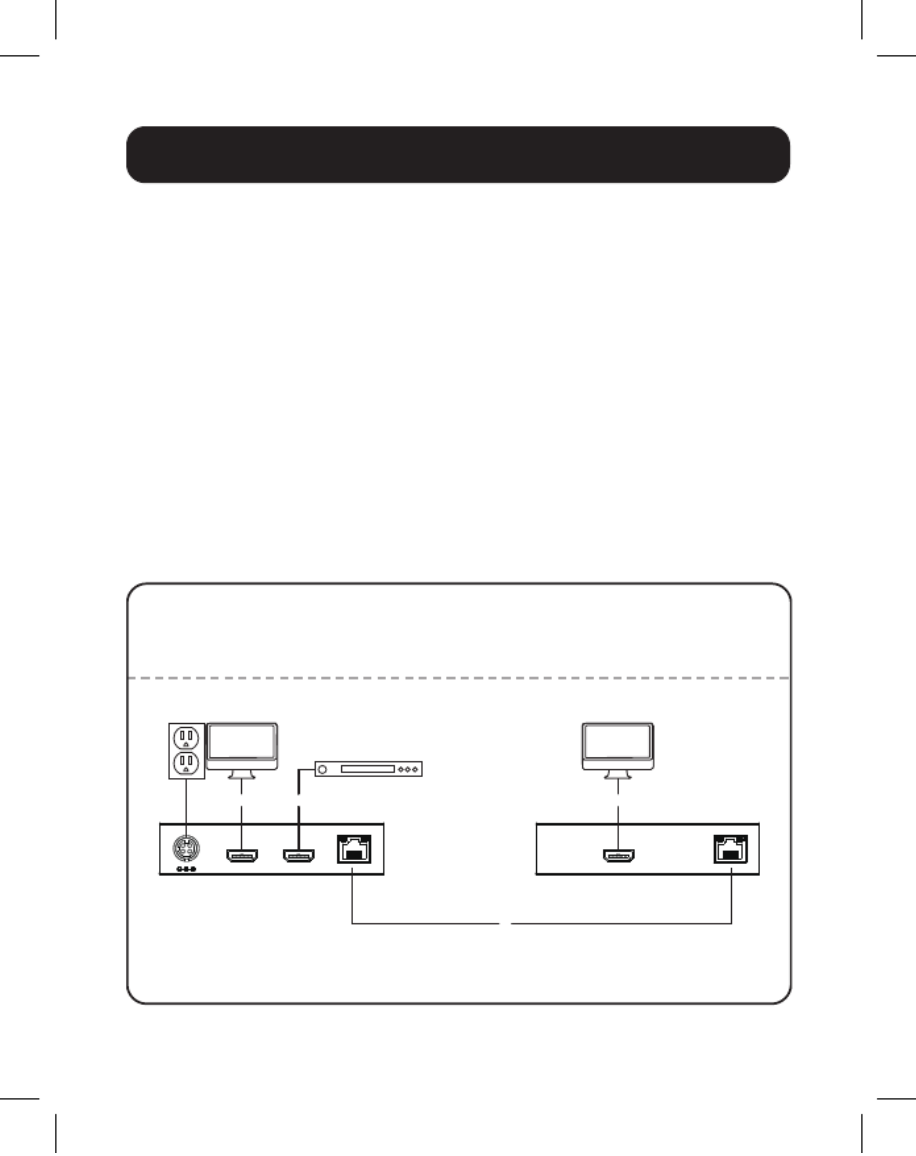

• The installation diagram shows a B127A-101-H transmitter and
receiver kit.
• External power is not required for remote receiver units due to Power
over Cable (PoC) technology incorporated in the units.
DC 24V, 1A OUTPU TINPUTLOCAL
OUTPU T INPUT
B127M-101-H
Up to 230 ft. (40 m) Cat6 cable at 4K/60 Hz
Up to 15ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
HDR PLAYER
MONITOR
LOCAL TRANSMITTER REMOTE RECEIVER
13
Standard Extender Kit Installation
1. Make sure all equipment in the installation—such as TVs,
Blu-ray™ players and the transmitter and receiver units—are
powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the HDMI source to
the INPUT port on the transmitter unit.
3. Using an HDMI 2.0 cable Optional for B127M-101-H:
(such as Tripp Lite P569-XXX-CERT or P568-XXX-2A Series
cables), connect a local monitor to the LOCALOUT port on
the B127M-101-H transmitter unit.
4. Using Cat6 cable, connect the RJ45 output port on the local
transmitter unit to the RJ45 input port of the remote receiver
unit.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT
or P568-XXX-2A Series cables), connect the remote receiver
unit’s HDMI port to a monitor.
6. Turn on the power to your connected TVs/monitors. The
LOCAL (orange) LED will illuminate to indicate the local port
has been connected to a display.
