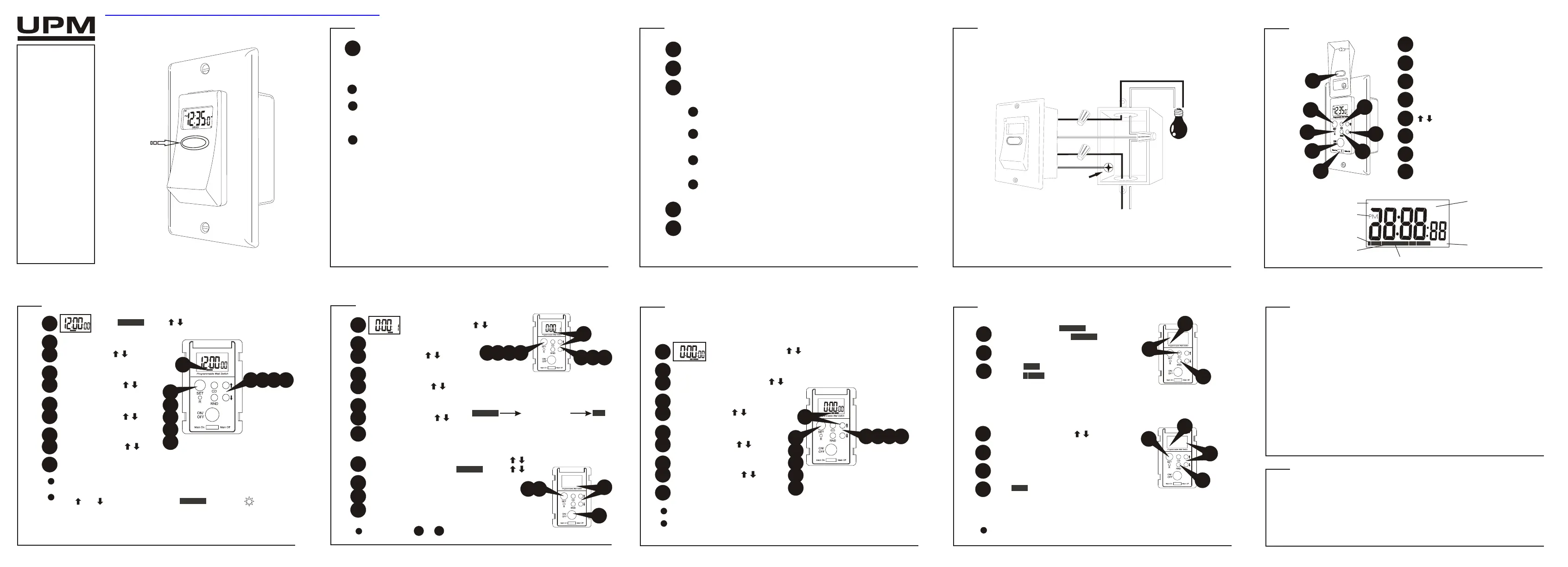

Side 1/2

Green

Screw

White

ETW350

Blue

Black

LOAD

Power Source

ETW350 electronic programmable timer

OWNERS

MANUAL

Congratulations on your

purchase of a UPM timer.

Please take the time to

read and understand this

manual so you can begin

to enjoy the security and

energy saving benefits this

product has to offer.

FEATURES

! 20 ON/OFF settings

! Countdown timer -

“One-Touch Countdown”

! 3 random functions

! 12/24 hour clock

! 15A, 1800W loading

! single pole

TROUBLESHOOTING

LCD display seems “frozen”.

Buttons won’t respond.

Programmed ON/OFF times

don’t execute.

Programmed ON/OFF times

don’t execute at specified

times.

Press reset button to reset

timer.

Ensure that the program

disable feature is not enabled.

Ensure that the random

function is not enabled.

problem solution

TECHNICAL SPECIFICATIONS

Program: 20 programs

Ratings: 120V AC, 15A

Max Load: 1800W resistive, single pole

Min switching time: 1 minute

PROGRAM SETTINGS

disable program/master disable

2 4 6 8

Press SET

Day select with

Press SET

Hour select with

Press SET

Minute select with

Press SET

Program select with

Press SET

Press ON/OFF to disable ( X )

For single disable select PROGRAM with

For master disable go to using

Press SET 3 times to exit (single disable)

OR press SET 4 times to exit (master)

CLOCK

Programs are arranged in a circular pattern

with the clock and countdown functions:

CLOCK

Program 1-20

PROG

MO TU WE TH FR SA SU

PROG

MO TU WE TH FR SA SU

INSTALLATION

Remove existing switch and identify the wires in the wall box.

Using the supplied wire nuts, securely fasten the wires on the timer

to the wires in the wall box according to diagram.

Disconnect the power supply at the circuit breaker or fuse before

proceeding with the installation.

Connect the black (hot) wire on the timer to the hot wire in the

wall box.

Connect the blue (hot) wire on the timer to the hot wire in the

wall box coming from the light fixture.

Select program 20 with

Flashing for short random

Flashing for long random

RANDOM FUNCTION

short/long random

programmable random

Press RANDOM

Set program 20 to desired random time

Press RANDOM

Short random from

OR Long random from

CLOCK

RND

Solid for programmable random

RND

* Short random 45-90 minutes, long random 90-180 minutes

* Programmable random 45-90 minutes

GETTING STARTED

setting the clock

Press SET

Day select with

Press SET

Hour select with

Press SET

Minute select with

7 9

Press SET

Second select with

Press SET

Minute select with

memory backup

* This UPM wall switch timer comes with built in memory backup protection. In the

event of a power outage, all program and clock settings will remain in memory.

CLOCK

To activate/deactivate Daylight Saving Time (DST) function, press and hold

both and together for 3 seconds in mode; solid for DST

CLOCK

To toggle between 12/24 hour format, press RND during clock setting

Repeat steps to to undo disable ( X )

Deactivate random function with RND or ON/OFF

CAUTION!

This timer must NOT be used on loads exceeding 1800W.

All wiring must comply with applicable codes and regulations.

TO AVOID FIRE, SHOCK, OR DEATH; SHUT OFF POWER SUPPLY AT

THE CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS

OFF BEFORE WIRING.

Handle installation with caution to prevent any risk of electrical shock

that could cause serious injury or death. If you are not sure about any

part of the given instructions, consult a qualified electrician.

For proper grounding, connect the green (ground) wire on

the timer to the ground “screw” found inside the wall box.

Mount timer into the wall box carefully.

Restore power supply at the circuit breaker or fuse.

INSTALLATION DIAGRAM

Connect the white (neutral) wire on the timer to the two

neutral wires in the wall box.

Go to using

CLOCK

GETTING STARTED

button placements

display

CD - activates countdown timer

SET - activates set functions

RND - activates random functions

- scrolls through selections

ON/OFF - manual on/off control

Main On/Main Off

R - reset

CLOCK CD

SET

RND

PROG

ONOFF

MO TU WE TH FR SA SU

Set function indicator

Weekday indicators

Random function indicator

AM/PM

Clock function indicator

Disabled program icon

ON/OFF indicator

One-Touch Countdown Button

COUNTDOWN TIMER

7 9

Press SET

Start ON or OFF select with

Press SET

Hour select with

Press SET

Minute select with

Press SET

Second select with

Press SET

The to-the-second countdown feature of this timer starts from the ON or OFF

position and counts down to zero when activated.

CD PROG

PROG

Stop countdown timer with Countdown (or One-Touch Countdown Button) or On/Off.

Select CD mode using

Press Countdown or the One-Touch Countdown Button to start the countdown timer.

One-Touch

Countdown

http://waterheatertimer.org/UPM-timers-and-manuals.html
