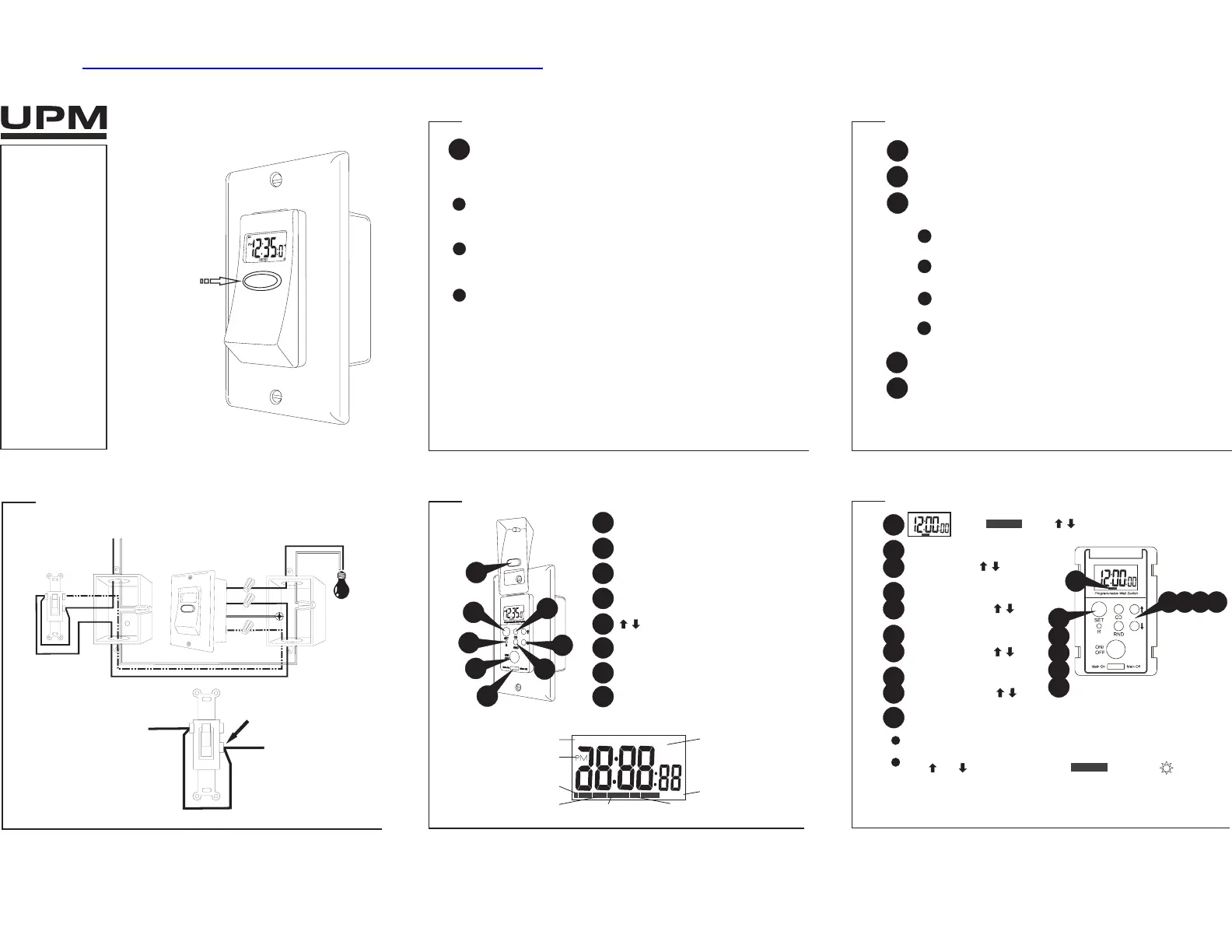

Side 1/3

ETW193 electronic programmable timer

OWNER’S

MANUAL

Congratulations on your

purchase of a UPM timer.

Please take the time to

read and understand this

manual so you can begin

to enjoy the security and

energy saving benefits this

product has to offer.

FEATURES

20 ON programs /

20 OFF programs

3 random functions

12/24 hour clock

500W loading

single pole or three-way

Countdown timer -

“One-Touch Countdown”

SINGLE POLE INSTALLATION

Remove existing switch and identify the wires in the wall box.

Using the supplied wire nuts, securely fasten the wires on the timer

to the wires in the wall box according to diagram FIGURE 1.

Disconnect the power supply at the circuit breaker or fuse before

proceeding with the installation.

Connect one of the (hot) wire on the timer to the

wire in the wall box.

black hot

Connect the other (hot) wire on the timer to the wire

in the wall box coming from the light fixture.

black hot

GETTING STARTED setting the clock

Press SET

Day select with

Press SET

Hour select with

Press SET

Minute select with

5 7 9

Press SET

Second select with

Press SET

Minute select with

memory backup

This UPM wall switch timer comes with built-in memory backup protection. In the

event of a power outage, all program and clock settings will remain in memory.

CLO CK ON

CL OCK O N

To activate/deactivate Daylight Saving Time (DST) function, press and hold

both and together for 3 seconds in mode; solid for DST

CLOCK

To toggle between 12/24 hour format, press RND during clock setting

CAUTION!

This timer is only compatible with incandescent (120V) lighting

applications. The timer must be used with magnetic

transformers, motors or loads exceeding 500W.

NOT

All wiring must comply with applicable codes and regulations.

TO AVOID FIRE, SHOCK, OR DEATH; SHUT OFF POWER SUPPLY AT

THE CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS

OFF BEFORE WIRING.

Handle installation with caution to prevent any risk of electrical shock

that could cause serious injury or death. If you are not sure about any

part of the given instructions, consult a qualified electrician.

For proper grounding, connect the (ground) wire on

the timer to the ground “screw” found inside the wall box.

green

Mount timer into the wall box carefully.

Restore power supply at the circuit breaker or fuse.

Terminate the (three-way) wire on the timer with a wire nut.

(For a single pole installation, the red wire is not needed).

red

INSTALLING THE TIMER IN PLACE OF LOAD SWITCH

FIGURE 3

THREE-WAY INSTALLATION DIAGRAM

JUMPER WIRE

COMMON TERMINAL

HOT WIRE

CLOSE UP VIEW OF THE HOT SWITCH

Go to using

CLOCK

GETTING STARTED button placements

display

CD - activates countdown timer

SET - activates set functions

RND - activates random functions

- scrolls through selections

ON/OFF - manual on/off control

Main On/Main Off

R - reset

CLOCK CDSETRNDL

-PROG ONOFF

MO TU WE TH FR SA SU

Set function indicator

Weekday indicators

Random function indicator

AM/PM

Clock function

indicator

Disabled program

icon

ON/OFF indicator

One-Touch Countdown Button

One-Touch

Countdown

Countdown function indicator

Power Source

Red

ETW193

JUMPER 3 Way

Black

Black LOAD

COMMON Green

HOT SWITCH

PAGE 1 PAGE 2 PAGE 3

PAGE 10 PAGE 11 PAGE 12

hp://waterheatermer.org/UPM-mers -and-manuals.html

SINGLE POLE INSTALLATION DIAGRAM

FIGURE 1

PROG ON

MO TU WE T H FR SA SU

5 7

2 4 6 8

PROGON

MO T U WE TH FR S A S U

THREE-WAY INSTALLATION

2Remove existing switch and identify the wires in the wall box.

Using the supplied wire nuts, securely fasten the wires on the timer

to the wires in the wall box according to diagram FIGURE 2.

Disconnect the power supply at the circuit breaker or fuse before

proceeding with the installation.

Connect one of the (hot) wire on the timer to the

wire in the wall box.

black hot

Connect the other (hot) wire on the timer to the

wire in the wall box coming from the LOAD switch.

black load

Connect the (three-way) wire on the timer to the

wire in the wall box coming from the LOAD switch.

red three-way

Mount timer into the wall box carefully.

Restore power supply at the circuit breaker or fuse.

THREE-WAY INSTALLATION

There are two switches in a three-way circuit. The switch directly

connected to the circuit breaker is the HOT switch. The second switch is

the LOAD switch. Ensure you know which switch you are replacing.

INSTALLING THE TIMER IN PLACE OF HOT SWITCH

For proper grounding, connect the (ground) wire on

the timer to the ground “screw” found inside the wall box.

green

ADDING A JUMPER WIRE TO THE LOAD SWITCH

*Disconnect the power supply at the circuit breaker or fuse before

proceeding with the installation.

5Take out the LOAD switch and identify the terminal.common

6Connect the wire to the LOAD switch according to diagram

FIGURE 2.

jumper

Connect the wire from the terminal to the

terminal of the LOAD switch.

jumper common

hot

Mount LOAD switch back into the wall box carefully.

Load Switch

Power Source 3-Way

Timer

Select program 20 with

Flashing for short random

Flashing for long random

RANDOM FUNCTION

short/ randomlong

programmable random

2Press RND

Set program 20 to desired random time

2Press RND

Short random from

OR Long random from

CLOCK

RND

LRND

Solid for programmable random

RND

* Short random 1-2 hours, long random 2-3 hours

* Programmable random only works with program 20; 1-2 hours

Deactivate random function with RND or ON/OFF

COUNTDOWN TIMER

Press SET

Start ON or OFF select with

Press SET

Hour select with

Press SET

Minute select with

Press SET

Second select with

Press SET

The to-the-second countdown feature of this timer starts from the ON or OFF

position and counts down to zero when activated.

CD P ROGON

5 7 9

CD P R O GON

Stop countdown timer with CD or ON/OFF.(or )One-Touch Countdown Button

Select CD mode using

Press CD or the to start the countdown timer.One-Touch Countdown Button

PROGRAM SETTINGS

disable program/master disable

Press SET

Day select with

* Individual days / weekly selections

Press SET

Hour select with

Press SET

Minute select with

Press SET

Each program has an “ON” and “OFF” setting. Both must be set for operation.

Example: PROG 1 has an “ON” and “OFF”

Program select with

Press SET

Press ON/OFF to disable ( )X

For select PROGRAM with

or go to using

single disable

F master disable

Press SET 3 times to exit (single disable)

OR press SET 4 times to exit (master)

CLOCK

Programs are arranged in a circular pattern

with the clock and countdown functions:

CLOCK

Program 1–20

Repeat steps to to undo disable )( X

For a single program disable, both the “ON” and “OFF” setting must be disabled

individually

ETW193

Black

Green

LOAD

Power Source

Black

Screw

Red

PAGE 4 PAGE 5 PAGE 6

PAGE 13 PAGE 14 PAGE 15
