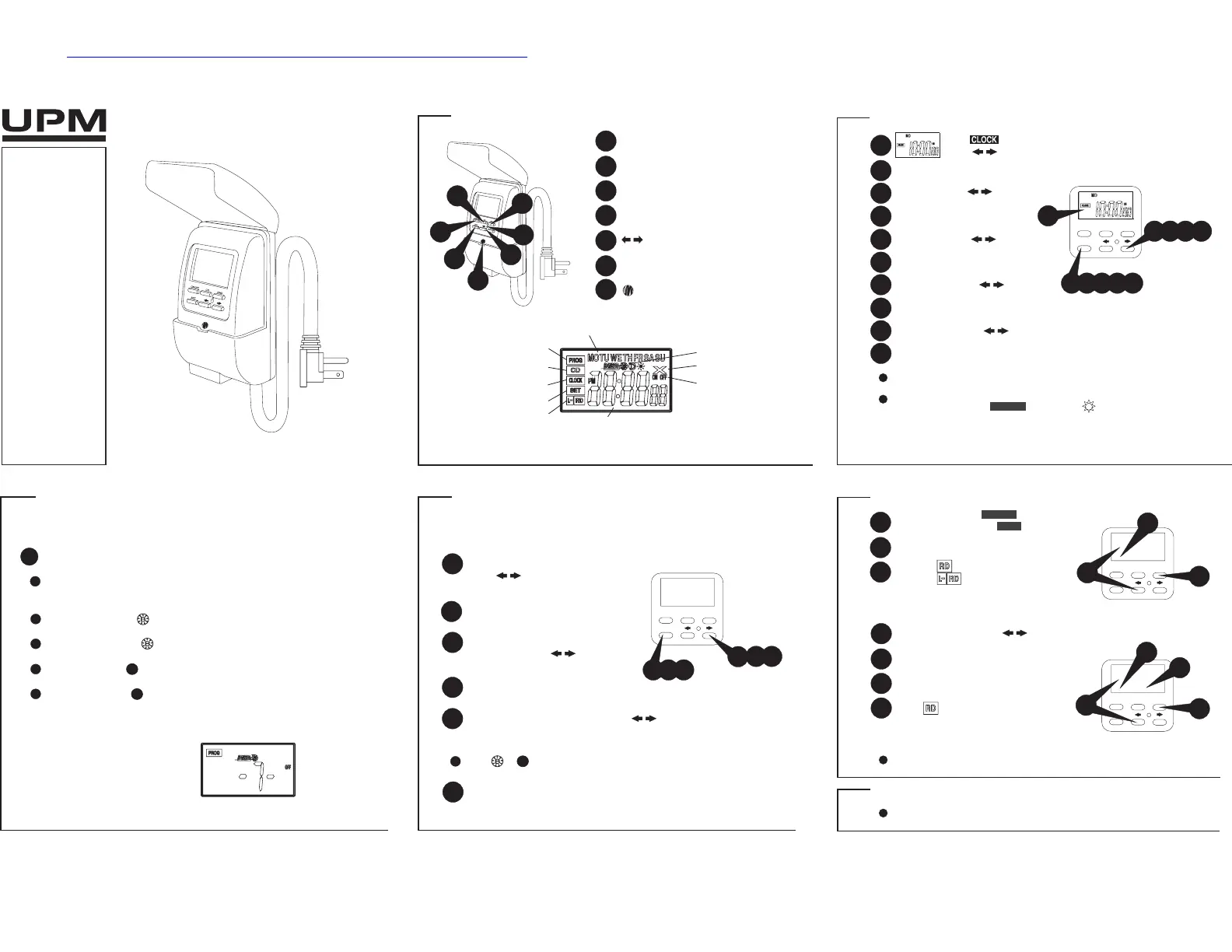

Side 1/4

Flashing for short random

Flashing for long random

ET420C

electronic outdoor timer

OWNERS

MANUAL

Congratulations on your

purchase of a UPM outdoor

timer. Please take the time

to read and understand this

manual so you can begin to

enjoy the security and

energy saving benefits this

product has to offer.

FEATURES

20 ON/OFF settings

Countdown timer

3 random functions

Daylight control using

photocell

12/24 hour clock

15A, 1800W (resistive)

drip-proof cover design

GETTING STARTED

RANDOM FUNCTION

setting the clock

short/ randomlong

programmable random

Press SET

Day select with

Press SET

Hour select with

Press SET

Minute select with

Press SET

Second select with

Press SET

Minute select with

Press RND

Set program 20 to desired random time

Press RND

Short random from

OR Long random from

CLOCK

Select program 20 with

Solid for programmable random

* Short random 1-2 hours, long random 2-3 hours

* Programmable random 1-2 hours

Go to

using

To toggle between 12/24 hour format, press RND during clock setting

Deactivate random function with RND or ON/OFF

MANUAL ON/OFF

Power On and Off with ON/OFF

DAYLIGHT CONTROL

The daylight control function allows the timer to be turn On and Off based

solely on the ambient light-level.

There are five modes to choose from:

Select one of the five ON or

OFF modes using

Select daylight control mode

using

Press SET

setting the daylight control function

Press SET

Adjust the photocell sensitivity using to select from

with “0” being the least sensitive and “9” being the most sensitive

“0” to “9”

Press SET

DAYLIGHT CONTROL

5 7 9

2468

RNDCDON/OFF

SET

RNDCDON/OFF

SET

RNDCDON/OFF

SET

GETTING STARTED button placements

display

ON/OFF - manual on/off control

RND - activates random functions

CD - activates countdown timer

SET - activates set functions

R - reset

Set function indicator

Weekday indicators

Random function indicator

Time display

Clock function indicator

Disabled program icon

ON/OFF indicator

- scrolls through selections

- photocell

Countdown

function indicator

Program function indicator Bright/Dark indicator

246

RNDCDON/OFF

SET

example: BRIGHT ON mode

REGULAR mode (SENSOR) only- choose this mode if you

want to run regular programs, random functions or countdown

functions (including daylight countdown)

BRIGHT ON mode ( and ON) - timer will be ON when the

ambient light is bright

BRIGHT OFF mode ( and OFF) - timer will be OFF when

the ambient light is dark

DARK ON mode ( and ON) - timer will be ON when the

ambient light is dark

DARK OFF mode ( and OFF) - timer will be OFF when the

ambient light is dark

Either or will appear to reflect the current brightness level detected as

memory backup

* This UPM programmable timer comes with built in memory backup protection. In

the event of a power outage, all program and clock settings will remain in memory.

To activate/deactivate Daylight Saving Time (DST) function, press and hold

SET for 3 seconds in mode; solid for DST

CLOCK

PAGE 1 PAGE 2 PAGE 3

PAGE 7 PAGE 8 PAGE 9

hp://waterheatermer.org/UPM-mers -and-manuals.html

PROGRAM SETTINGS COUNTDOWN TIMER

disable program/master disable

TROUBLESHOOTING

LCD display seems “frozen”.

Buttons won’t respond.

LCD display seems dim or faded.

LCD display response is slow.

Programmed ON/OFF times don’t

execute.

Programmed ON/OFF times don’t

execute at specified times.

Press reset button to reset timer.

If timer is exposed to extreme cold,

bring timer indoors. The LCD

should return to normal under room

temperature.

Ensure that the program disable

feature is not enabled.

Ensure that the random function is

not enabled.

problem solution

TECHNICAL SPECIFICATIONS

Program: 20 programs

Ratings: 120V AC, 15A

Max Load: 1800W resistive; 600W tungsten

Min switching time: 1 minute

Press SET

Day select with

Press SET

Hour select with

Press SET

Minute select with

Press SET

Program select with

2Press SET

Press ON/OFF to disable ( )X

For select PROGRAM with

or go to using

single disable

F master disable

Press SET 3 times to exit (single disable)

OR press SET 4 times to exit (master)

CLOCK

Programs are arranged in a circular pattern

with the clock and countdown functions:

CLOCK Program 1-20 CD

The to-the-second countdown feature of this timer starts from the ON or OFF

position and counts down to zero when activated.

Repeat steps to to undo disable ( )X

There are six countdown modes to choose from:

2 4 6 8

5 7

RNDCDON/OFF

SET

RNDCDON/OFF

SET

example: BRIGHT ON mode

ON mode (ON) - countdown starts when CD is pressed and timer will be

ON for the duration of the preset period.

OFF mode (OFF) - countdown starts when CD is pressed and timer will

be OFF for the duration of the preset period.

BRIGHT ON mode ( and ON) - countdown starts when the ambient

light changes from dark to bright and timer will be ON for the duration of

the preset period.

BRIGHT OFF mode ( and OFF) - countdown starts when the ambient

light changes from dark to bright and timer will be OFF for the duration of

the preset period.

DARK ON mode ( and ON) - countdown starts when the ambient light

changes from bright to dark and timer will be ON for the duration of the

preset period.

DARK OFF mode ( and OFF) - countdown starts when the ambient

light changes from bright to dark and timer will be OFF for the duration of

the preset period.

LCD DISPLAY

Due to the nature of the LCD display, when the timer is exposed to

extreme cold temperature, the LCD display may become dim or

faded. You may also experience slow response from the LCD

display. This, however, does not affect the operation of the timer.

For better viewing, bring the timer indoors to room temperature

and wait several minutes. You will be able to resume

programming and setup once the LCD display returns to it’s

normal state.

MOUNTING BRACKET

WARNING: To avoid shock hazard, timer must be installed

vertically and at least 3 ft. above ground level.

For safe and optimal performance, use the supplied mounting

bracket to hold the timer vertically and flush against the wall.

You will require your own tools and accessories (i.e. power

drill, bits, screws, and/or screwdriver) for proper installation.

Press SET

Select one of the six ON or OFF

modes using

Press SET

Hour select with

Press SET

Minute select with

Press SET

Second select with

Press SET

Select CD mode using

For the regular ON or OFF modes, press CD to start the countdown function.

setting the countdown timer

Stop countdown function using CD or ON/OFF

Adjust photocell sensitivity in the Daylight Control mode (refer to next section)

COUNTDOWN TIMER

2 4 6 8

57 9

RNDCDON/OFF

SET

PAGE 4 PAGE 5 PAGE 6

PAGE 10 PAGE 11
