Side 1/2

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU

FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST

DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

CAUTION:

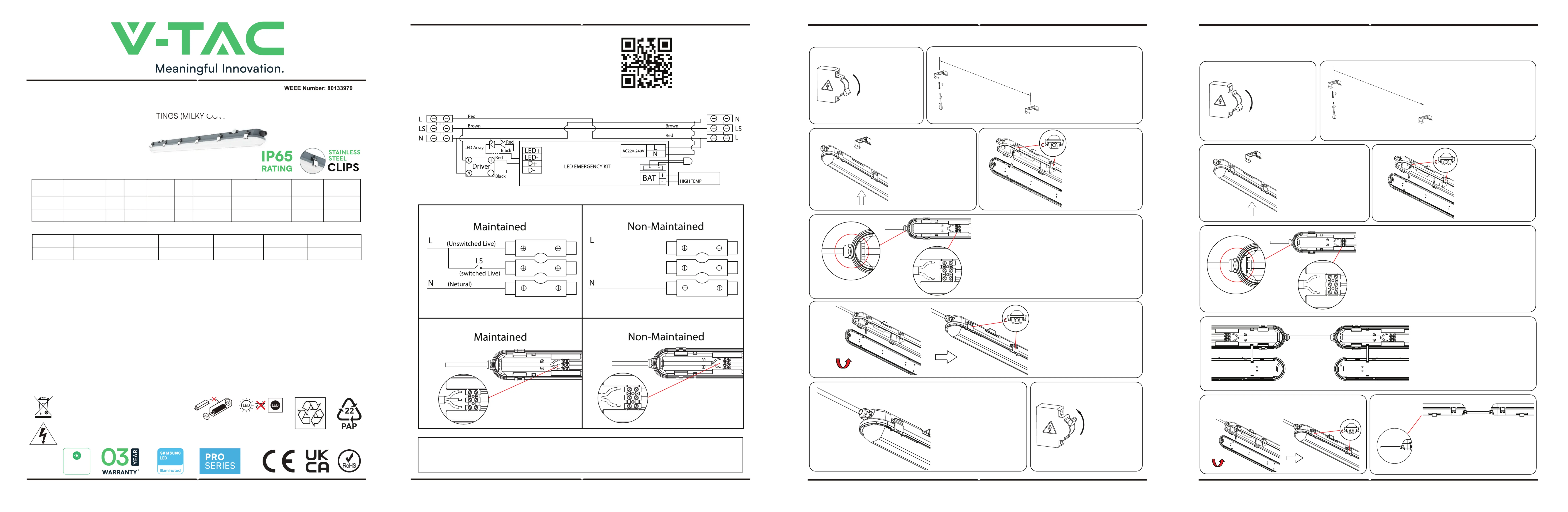

EMERGENCY WIRING DIAGRAM:

1. Battery is in an empty state, please ensure to charge more than 36hours

before using.

2. Power connected but light does not work, please check whether the light is

properly connected to the mains.

3. Please strictly use the emergency kit according to the wiring diagram before

connection and pay attention to reverse connection.

Ni-Cd 9.6V2200mAh

SINGLE UNIT INSTALLATION INSTRUCTIONS

STEP 7: Wire the water-

proof ﬁtting to the main

power supply. Ensure to use

waterproof terminal block

[not included].

STEP 6: Install the diuser to

the waterproof ﬁtting and close

the clips.

STEP 4: Open the

side clips of water-

proof ﬁtting and

open the diuser as

shown in the dia-

gram.

STEP 2: Fix the mounting

brackets onto the ceiling using

screws and expansion plug(in-

cluded). Please refer to table 1

for installing the mounting

bracket distance points.

STEP 3: Mount water-

proof lamp onto the

mounting brackets.

MULTIPLE (LINKABLE) UNITS INSTALLATION INSTRUCTIONS

STEP 1: Switch

OFF the power

before starting

the installation.

OFF

STEP 8:

Switch ON

the power to

test the light.

STEP 8: Wire the waterproof

ﬁtting to the main power supply.

Ensure to use waterproof terminal

block [not included].

STEP 9: Switch ON the power to test

the light.

STEP 7: Install the diuser to the waterproof ﬁtting and

close the clips.

STEP 5: Wiring 1st waterproof ﬁtting from both the ends

- Fasten the waterproof connector clockwise from the

ﬁrst end and insert the cable through the waterproof

connector and wire into the terminal block from one

end.

Note: For Maintained and Non-Maintained wiring please

refer to the wiring diagram.

WATERPROOF

END WIRE

STEP 6: Fasten the waterproof con-

nector from other end of the water-

proof ﬁtting and insert the wire into

the terminal block. Using the same

cable fasten the waterproof connec-

tor of the 2nd waterproof ﬁtting and

wire into the terminal block.

STEP 4: Open the

side clips of water-

proof ﬁtting and

open the diuser as

shown in the dia-

gram.

STEP 2: Fix the mounting

brackets onto the ceiling using

screws and expansion plug(in-

cluded). Please refer to table 1

for installing the mounting

bracket distance points.

Note: Please refer to the model number and max linkable units which can be linked together. Based on the max linkable units select the

max waterproof ﬁttings which you would like to connect.

STEP 3: Mount water-

proof lamp onto the

mounting brackets.

STEP 1: Switch

OFF the power

before starting

the installation.

OFF

WATERPROOF CONNECTOR

STEP 5: Fasten the waterproof connector clockwise.

Insert the cable through the

waterproof connector and wire it into the

terminal block.

Note: For Maintained and Non-Maintained wiring

please refer to the wiring diagram.

WATERPROOF CONNECTOR

Blue

LED WATERPROOF FITT KY COVER) WITH EMERGENCY KIT

TECHNICAL DATA:

INTRODUCTION & WARRANTY

WARNING!

1. Please make sure to turn o the power before starting the installation.

2. Installation must be performed by a qualiﬁed electrician.

3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.

4. If the external ﬂexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent

or a similar qualiﬁed person in order to avoid a hazard.

5. The luminaire is designed with an emergency kit with a replaceable battery. If the battery no longer meets their rated duration of opera-

tion aer corresponding recharge period the battery/emergency kit should be replaced by the

manufacturer or his service agent or a similar qualiﬁed person in order to avoid a hazard.

Caution, risk of electric shock.

This marking indicates that this

product should not be disposed of

with other household wastes.

MODEL

SKU

WATTS LUMENS CRI DF

BEAM

ANGLE

DIMENSION INPUT POWER

MAX

CONNECTABLE

UNITS

10 UNITS830+40mmVT-120136E

2120222,2120223

2120220,2120221

36W 4320LM ≥80 ≥0.9 120° 1200x72x78mm AC: 200-240V, 50/60Hz

8 UNITS1090+40mmVT-150148E 48W 5760LM ≥80 ≥0.9 120° 1500x72x78mm AC: 200-240V, 50/60Hz

Non-replaceable

light source

Non-replaceable

control gear

TECHNICAL DATA: EMERGENCY KIT

EMERGENCY

POWER

BATTERY TYPE

CHARGING TIME

WORKING TIME

CHARGE

RECHARGE

AMBIENT

TEMPERATURE (ta)

6-7W

9.6V 2200mAh Ni-Cd battery

24 Hours

3 Hours

0-50°C

500 TIMES

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting

the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local

vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 3

years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear.

The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products

are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for

manufacturing defects only.

MULTI-LANGUAGE

MANUAL QR CODE

Please scan the QR code

to access the manual in

multiple languages.

INSTRUCTION MANUAL

NOTE: This Item can be Installed both Indoor and Outdoor

LUMENS/W

120+
