Side 1/4

1 947819

ISSUE 3

VIP-130AL-IC InformaCast® Compliant

IP Paging Horn

INTRODUCTION

The VIP-130AL consists of a high eciency horn

and a Network Interface compatible with

Singlewire InformaCast broadcasts.

The VIP-130AL is available in three colors,

Beige (-BGE), Gray (-GY) and Marine White

(-W).

The Marine version features additional weather

protection, including an O-ring seal on the bell

housing and stainless steel hardware.

Installation

Mounting (Network Interface)

The Network Interface is designed for wall or

shelf mounting and must be within 300 feet of

the network switch.

Shelf: Provided with the Network Interface are

four rubber pads. Peel the pads from the carrier

backing and place at the four corners of the

bottom of the unit.

Wall: Using the brackets and wood screws

provided, secure the Network Interface to the

wall.

Mounting (Horn)

The VIP-130AL-IC Horn is designed for most FD

electrical box or wall mounting and must be

within 350 feet of the VIP-130AL Network

Interface. See NEMA OS 3-2002 sec.1.2.3.5 for

FD box specifications.

Attaching Speaker to Base

NOTE: For ease of installation, the base can be

attached to the speaker before or after the base

is mounted.

 Loosen position adjustment knob

 Insert the ball of the base into the socket of

the speaker

 Tighten the position adjustment knob

These horns should be mounted 15 to 20 feet

above the oor to allow for best sound

distribution. The units can be mounted to a wall,

a beam or an electrical box.

 A “C” clamp is provided with the horns to

allow mounting to a beam. When using the

“C” clamp for mounting, remove the signal

cable from the ball mount. Reinstall an

RJ45 connector on the signal cable after

mounting, using the T568B pinout scheme.

See Figure 1.

IMPORTANT SAFETY INFORMATION

CONSIGNES DE SÉCURITÉ IMPORTANTES

1. Read these instructions.

Lisez ces instructions.

2. Keep these instructions.

Conservez ces instructions.

3. Heed all warnings.

Respectez tous les avertissements.

4. Follow all instructions.

Suivez toutes les instructions.

5. Do not use this apparatus near water.

Ne pas utiliser cet appareil près de l'eau.

6. Clean only with dry cloth.

Nettoyer avec un chiffon sec.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Ne pas bloquer les ouvertures de ventilation. Installer formément aux instructions du

fabricant.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other

apparatus (including amplifiers) that produce heat.

Ne pas installer à proximité de sources de chaleur telles que radiateurs, registres de

chaleur, poêles ou autres appareils (y compris les amplificateurs) produisant de la chaleur.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade and the third prong are provided for your safety. If

the provided plug does not fit into your outlet consult an electrician for replacement of the

obsolete outlet.

Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une

fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a

deux lames et une troisième broche de mise à la terre. La lame large et la troisième

broche sont fournies pour votre sécurité. Si la fiche fournie ne rentre pas dans votre prise,

veuillez consulter un électricien pour le remplacement de la prise obsolète.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

N'utilisez que des fixations / accessoires spécifiés par le fabricant.

12. Use only with the cart, stand, tripod, bracket or table specified

by the manufacturer or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Utilisez uniquement avec le chariot, stand, trépied, support ou table spécifié par le

fabricant ou vendu avec l'appareil. Quand un chariot est utilisé, Soyez prudent lorsque

vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au

renversement.

13. Unplug this apparatus during lightning storms or when unused for a long period of time.

Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant une

longue période de temps.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way. Such as when the power supply cord or plug is

damaged, liquid has been spilled, objects have fallen into the apparatus or the

apparatus has been exposed to rain or moisture and does not operate normally or has

been dropped.

Confiez toute réparation à un personnel qualifié. Une réparation est nécessaire lorsque

l'appareil a été endommagé de quelque façon. Par exemple lorsque le cordon

d'alimentation ou la fiche est endommagé, du liquide a été renversé, si des objets sont

tombés dans l'appareil ou le appareil a été exposé à la pluie ou à l'humidité et ne

fonctionne pas normalement ou s'il est tombé.

2 947819

 The base has holes punched for a

double-gang square box, but by punching

out additional knockout holes, the base can

be mounted to a single-gang or octagon box

See Figure 2.

 Mount the base to wall studs using the two

holes provided. Knockout holes are

provided for punch out should additional

holes be desired. See Figure 3.

The horn may be rotated or moved up and down

to obtain the desired position by loosening the

position adjustment knob at the bottom of the

unit approximately one turn. Make required

adjustments and re-tighten knob.

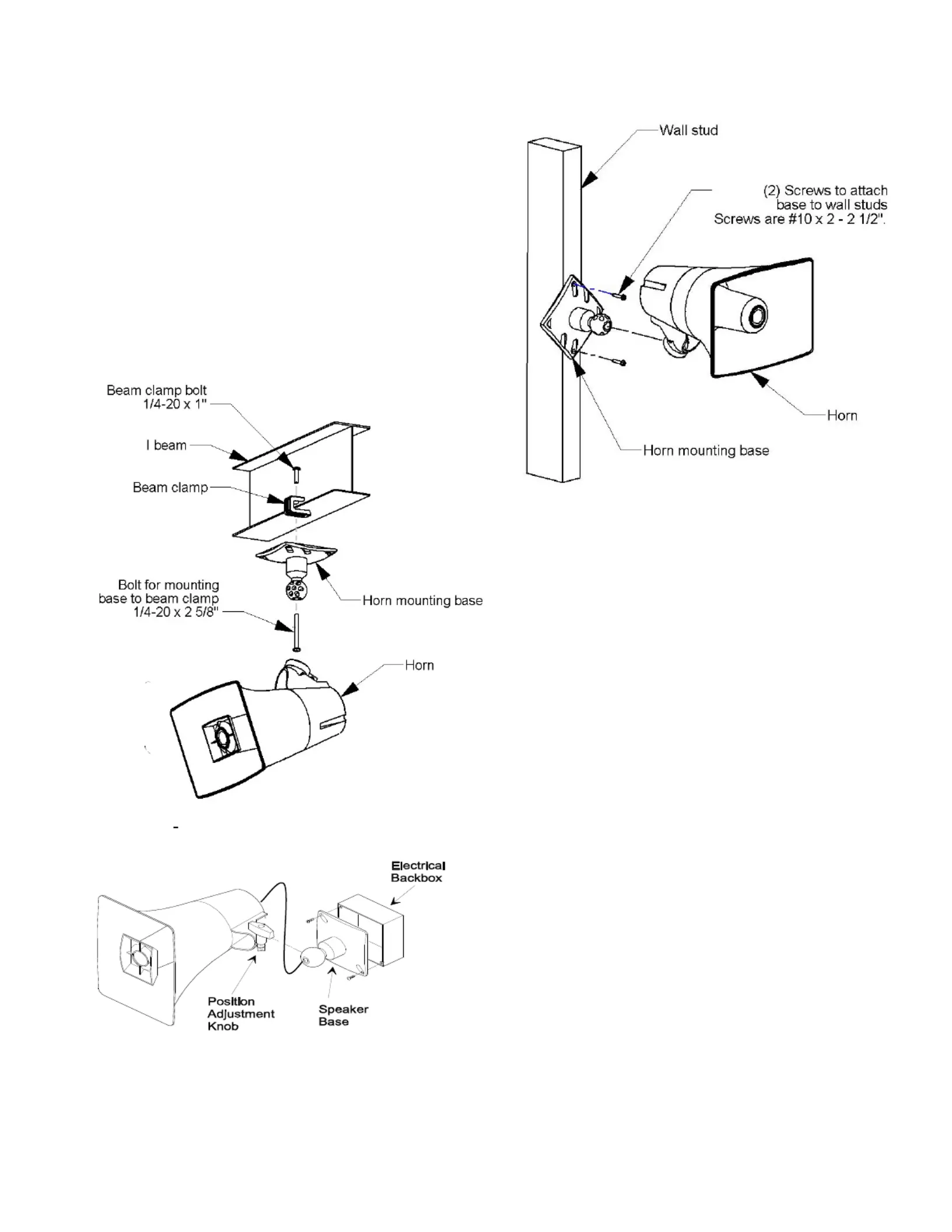

Figure 1. Mounting to a Beam with a “C” Clamp

Figure 2. Mounting to an Electrical Backbox

Figure 3. Mounting to a Wall Stud

Interconnections

The only method of powering the VIP-130AL-IC

IP Paging Horn is via a Power over Ethernet

(PoE) switch or power injector meeting the

802.3af specification.

Make all required signal connections before

connecting to Ethernet switch or power injector

meeting the 802.3af specification. Power is

supplied to the horn assembly via the Network

Interface

Signal Connections

Audio output connection is made from the Signal

Output. The RJ-45 connector on the horn is

connected directly to the RJ-45 Signal Output

socket on the IP Link. If additional length is

required, any standard T568B extension may be

used. See Figure 4.

Network Connection

The Network Interface has one RJ-45 network

connector. Use a standard Ethernet patch cable

to connect the Network Interface to an Ethernet

switch.
