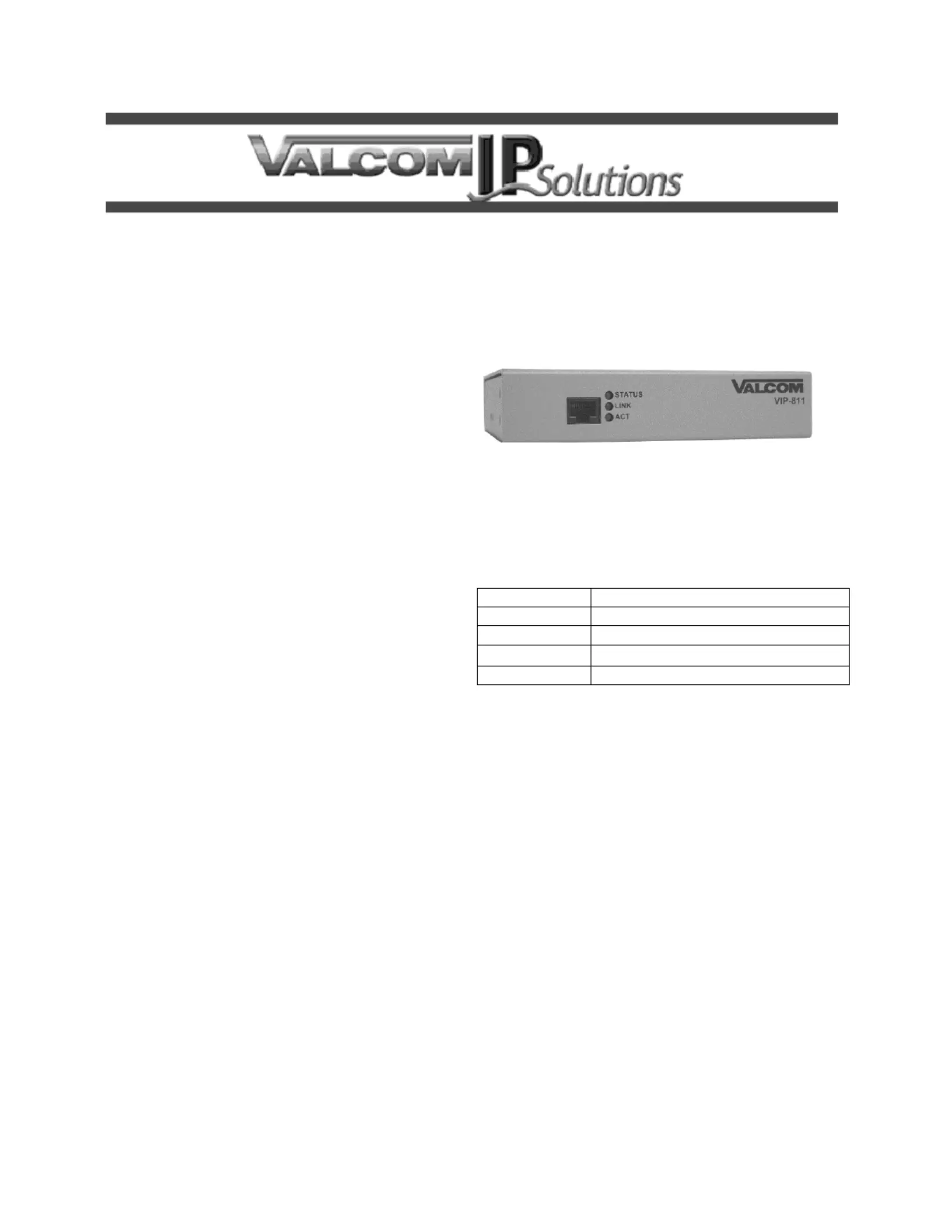

Side 1/3
1 947026
ISSUE 5
VIP-811
NETWORKED STATION PORT
INTRODUCTION
The VIP-811 Networked Station Port allows most
loop start terminal devices to be connected to a
managed IP-based LAN/WAN.
SPECIFICATIONS
Access Methods
PBX, FXO Port
POTS telephone set
Features
RJ-45 for network connection
1 RJ-11 telephone connections
2 Relays with Form C contacts
Front panel activity LED
Network activity LEDs
1 REN
2.5mm jack for external power
Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
1.38” H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
Weight: 1.25 lbs. (0.57 kg)
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm
Output Impedance: 600 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 AMP @ 24VDC
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24VDC
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Packing List
Qty Item
1 VIP-811
1 VSP Document
2 Mounting Brackets W/ Hardware
4 Rubber Pads
INSTALLATION
NOTE: The telephone system referred to in this
manual is the customer premise equipment
such as an electronic key system, a PBX or a
dedicated single line telephone sets. The VIP-
811 is not intended for direct or indirect
connection to the public telephone network.
When used with a customer premise telephone
system such as a key system or PBX system,
these units are interfaced to the system via a
fully protected trunk port or system central
office port, which is a fully protected interface
device. Also, the host system must be
configured to disallow central office trunk
conferencing in order to prevent indirect
connection to the public network.
2 947026
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Precautionary Designations
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses and can radiate radio
frequency energy and if not installed and used
in accordance with the instruction manual, may
cause harmful interference to radio
communications. Operation of this equipment
in a residential area may cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
Mounting
The VIP-811 is designed for wall or table mounting.
Table: Provided with the VIP-811 are four rubber
pads. Peel the pads from their carrier backing and
place at the four corners of the bottom of the unit.
Wall: Using the bracket and screws provided,
secure the VIP-811 to the wall.
Power Connections
The preferred method of powering a VIP-811 is via
a power over Ethernet switch meeting the 802.3af
specification.
If the rear panel barrel connector is used for power,
the preferred power supply is a Valcom VIP-324D.
Make all required signal connections before
applying power to the unit. If powering via 802.3af,
make sure all signal connections via the rear panel
are made then connect the VIP-811 to the Ethernet
switch.
If power is supplied via the barrel connector, make
sure all signal connections are secure. Attach the
unit to the network via the front panel RJ-45
Ethernet connector. Apply power by plugging the
power supply in to the VIP-811 via the barrel
connector on the rear of the VIP-811.
Network Connection
The VIP-811 has one RJ-45 network connector on
the front panel.
Use a standard Ethernet patch cable to connect
the VIP-811 to an Ethernet switch. If the Ethernet
switch is 802.3af compliant, the VIP-811 will draw
power from it.
Signal Connections
On the rear panel, the VIP-811 has 1 RJ-11 jack
for telephone connection and 1 terminal block for
relay connections.
Telephone Connections: Connect standard
analog telephones to the VIP-811 via the rear
panel RJ-11 jack labeled Phone. Tip and Ring
appear on pins 3 and 4 of these jacks.
Relay Connections: Access to the two form C
relays is provided via a six pin screw terminal
block. The relays are labeled K1 and K2. Each
relay is brought out on three terminals. The
common contact (COM) is the middle terminal with
the normally closed (N.C.) contact on the right and
the normally open (N.O.) contact on the left. Relay
contacts are rated for 1A @ 24VDC.
Rear View
