Side 1/3
VSP V- -1038
Issue 8
1 947038
V-1038

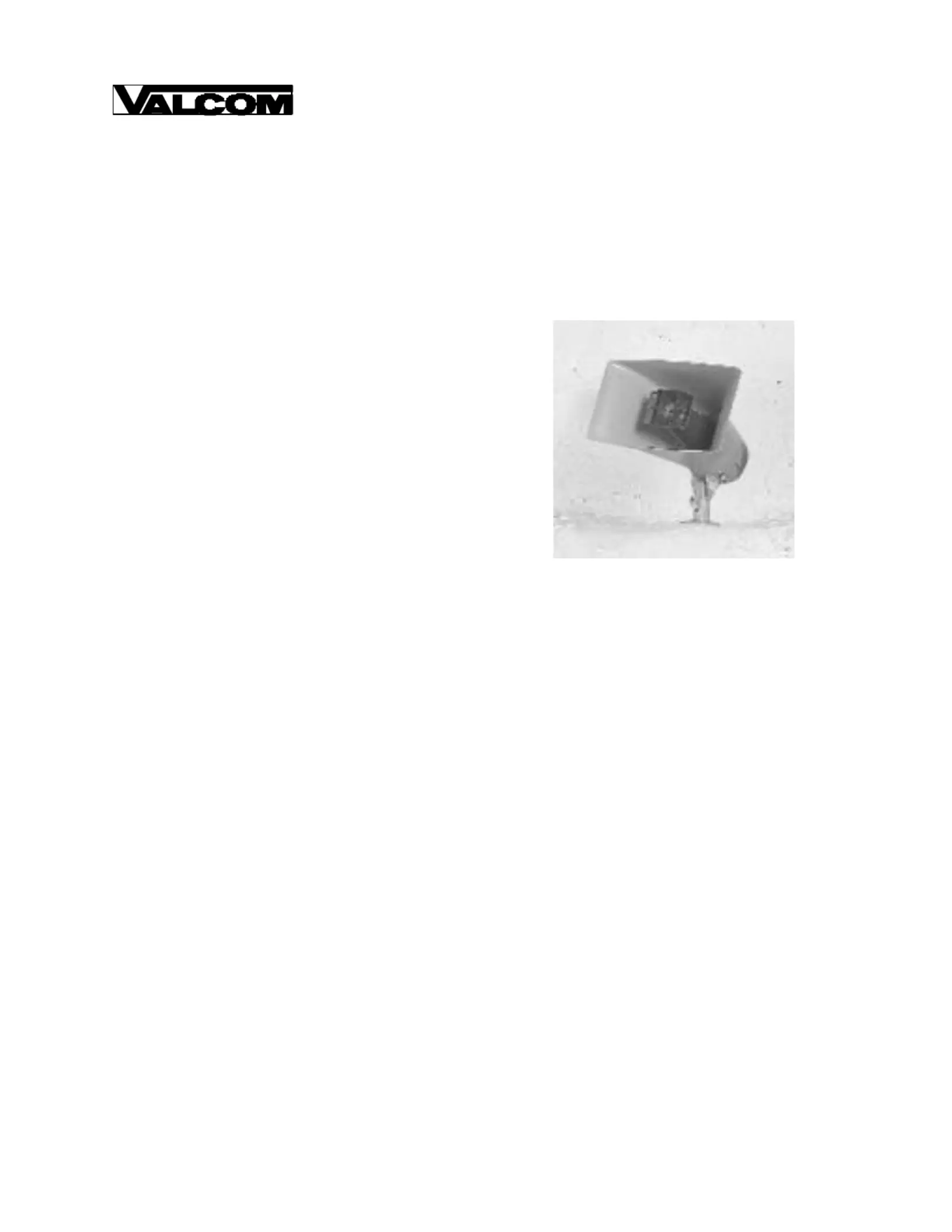

PAGING HORN/AMPLIFIER ASSEMBLY
30 WATT -48VDC WITH VOLUME CONTROL
INTRODUCTION
This instruction provides identification, installation
Horn/Amplifier Assembly.
This paging unit has received a FCC type KX
registration and is designed to be used with FCC
registered key telephone systems. In accordance with
FCC rules with applicable tariffs, this Paging Unit may
only be installed with the authorization of the host
system. Installations may be made by Valcom, Inc.,
an authorized agent of the same, equipment
manufacturers, telephone companies, registered
telephone refurbishers and those qualified for
installation of FCC registered systems under FCC
Rules Section 68.215. The FCC Registration Number,
BAF9I7- - -69358 KX N, will be listed in the affidavits
filed with the Telephone Company; it will also be
recorded in the system log kept by installation and
maintenance personnel.
DESCRIPTION
The V-1038 Paging Horn/Amplifier Assembly is a
self-contained 30 Watt paging system incorporating:
(a) 30 Watt amplifier
(b) Volume control
(c) High efficiency horn
Dimensions/Weight
7.38" H x 10.00" W x 10.40" D
(18.75cm H x 25.40cm W x 26.42cm D)
4.1 lbs. (1.86kg)
Nominal Specifications:
Input impedance: 600 Ohms minimum
Input level: 10dBm nominal
Current at -48VDC: 1 Amp
Connections:
Green Tip Audio Source
Red Ring Audio Source
White -48VDC Power
Black Ground Power
Due to the low-level signal required, distribution
wiring is normally accomplished through house cable
pair or station wire.
Typical applications include:
(a) Use with a Valcom page control.
(b) Expanding the capability of telephone
systems which contain limited paging
capabilities.
(c) Loud ringer application in systems where
loud speaker tone signaling is employed.
INSTALLATION
This horn may be used for either interior or exterior
paging applications and should be installed 16 to 40
feet from the floor taking into account installation and
maintenance access.
proper speaker connection. When using station wire,
limit the maximum run to 250 feet. Two horns may be
connected to the same pairs if the total run is less
than 125 feet.
When a remote power unit is used, the audio pair run
should be limited to 5000 feet and a maximum of 6
horns.


Produkt Specifikationer

Mærke: Valcom
Kategori: Højttaler
Model: V-1016
Bredde: 292.1 mm
Dybde: 106.7 mm
Højde: 243.8 mm
Vægt: 2040 g
Produktfarve: Sort
Relativ luftfugtighed ved drift (H-H): 0 - 95 %
Udgangseffekt (RMS): - W
Equalizer: Ingen
Driftstemperatur (T-T): -20 - 55 °C
Anbefalet brug: Andet
Frekvensområde: 80 - 10000 Hz
Impedens: 600 ohm (Ω)
Forbindelsesteknologi: Ledningsført
Højttaler, type: 1-vejs
Lyd-output kanaler: 1.0 kanaler
Højttaler, placering: Kan monteres på væggen
Antal drivere: 1
Driver diameter: 203.2 mm
Sensitivitet: 96 dB
DC indgangsspænding: 24 V
Antal produkter inkluderet: 1 stk
Signal/støjforhold: -70 dB
Forstærker: Indbygget
Subwoofer driver diameter (britisk): 8 "
