Side 1/2

Issue 2

1947966

Page

Out

Valcom Page

Control

(Tip/A)

(Ring/B)

(-24VDC)

(Gnd)

Valcom –24VDC

Power Supply

One-Way

mplified

Speaker

V-1052C

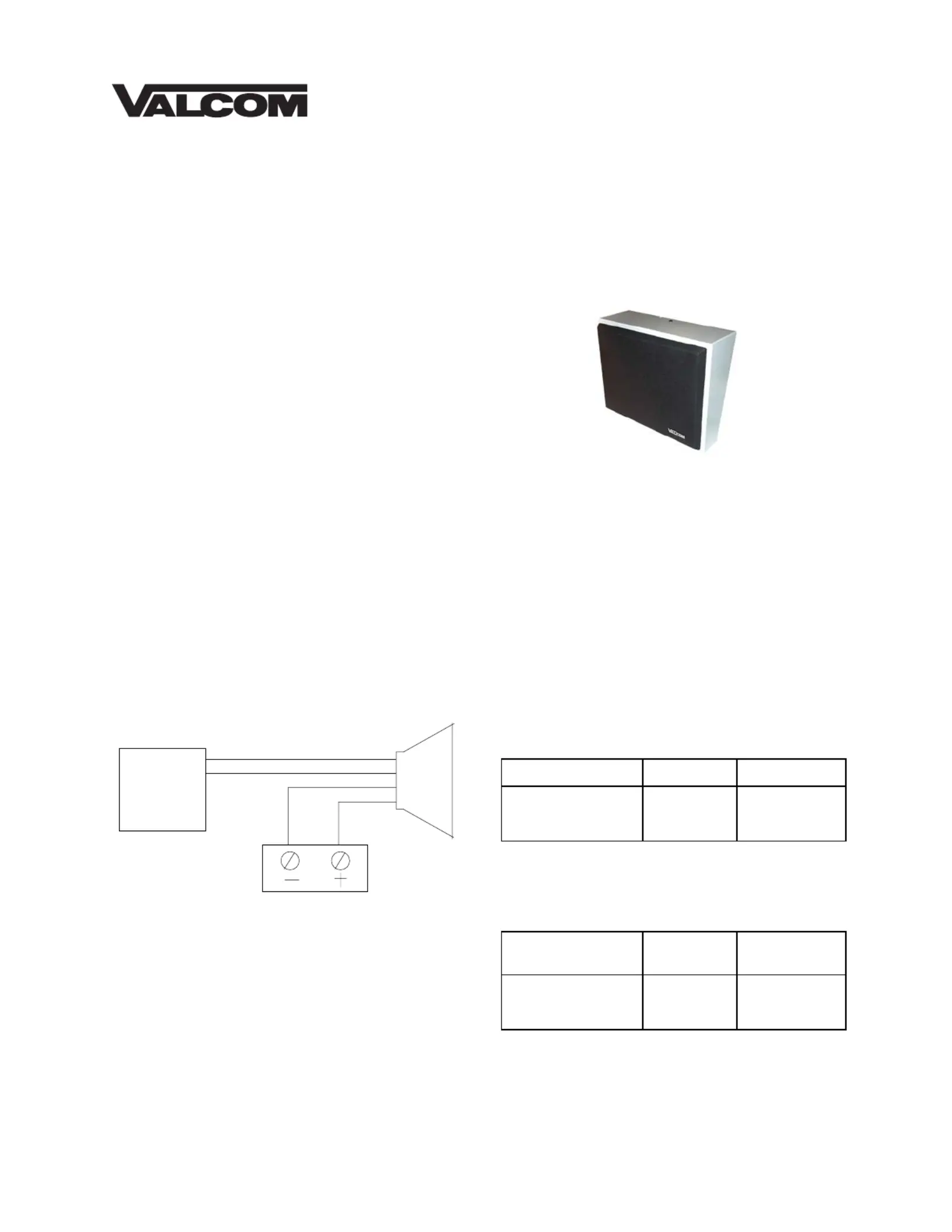

INSTALLATION INSTRUCTIONS

INTRODUCTION

The interior wall speaker, the V-1052C, is a 8”

Speaker/Amplifier Assembly capable of

reproducing paging as well as back ground

music. This speaker has an externally accessible

volume control located behind the grille and is

screwdriver adjustable. The enclosures are made

of steel with a durable powder coated finish. The

color of the enclosures can easily be changed to

match any decor. A cloth covered detachable

grille is included. The speaker requires -24VDC,

50mA (1 power unit).

MOUNTING

Remove the screw holding the mounting bracket

to the enclosure. Mount the bracket using

appropriate hardware such as #8 pan head

crews. After making the required connections,

reattach the enclosure to the mounting bracket.

INSTALLATION

Typical Connections

NOTE: Do not connect this speaker directly

to a 25/70/100 Volt amplifier as damage to

both the amplifier and speaker may occur. A

V-1095 may be used to allow the use of

Valcom self-amplified speakers on 70 Volt

speaker lines.

V-1052C

Amplified Wall Mount Speaker

Gray w/Black Grille

DIMENSIONS/WEIGHT

• 10.13” H x 12.31” W x 4.63” D

(25.73cm x 31.27cm W x 11.75cm D)

• Weight: 4.25 LBS (1.91 kg)

COVERAGE

The area covered by a wall speaker is typically

600 square feet.

Number of Speakers per Audio Run

Wire Run (Feet) 22 AWG 24 AWG

400

800

1600

100

Number of Speakers per Power Run

1 Watt Interiors

Speakers

22 AWG 24 AWG

200 Feet

400 Feet

800 Feet

125 Feet

250 Feet

500 Feet

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	V-1052C
Bredde:	312.7 mm
Dybde:	117.5 mm
Højde:	257.3 mm
Vægt:	1930 g
Relativ luftfugtighed ved drift (H-H):	0 - 95 %
Udgangseffekt (RMS):	- W
Equalizer:	Ingen
Driftstemperatur (T-T):	-20 - 55 °C
Husmateriale:	Metal
Frekvensområde:	80 - 15000 Hz
Impedens:	600 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Kan monteres på væggen
Signal/støjforhold:	-70 dB
Forstærker:	Indbygget
