Side 1/2

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship

under conditions of normal use and service for a period of one year from the date of

shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim,

2. the defect is not the result of damage, misuse, or negligence after the original

shipment.

3. the product has not been altered in any way or repaired by others and that

factory sealed units are unopened (A service charge plus parts and labor will be

applied to units defaced or physically damaged),

4. freight charges for the return of products to Valcom are prepaid,

5. all units ‘out of warranty’ are subject to a service charge. The service charge will

cover minor repairs (Major repairs will be subject to additional charges for parts

and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied,

and in no event shall Valcom, Inc. be liable for any anticipated profits, consequential

damages, loss of time or other losses incurred by the buyer in connection with the

purchase, operation, or use of the product.

This warranty specifically excludes damage incurred in shipment. In the event a product is

received in damaged condition, the carrier should be notified immediately. Claims for such

damage should be filed with the carrier involved in accordance with the F.O.B. point.

Headquarters:

Valcom, Inc.

1111 Industry Avenue

Roanoke, VA 24013

Phone: (540) 427-3900

FAX: (540) 427-3517

In Canada:

CMX Corporation

35 Van Kirk Drive #11 and 12

Brampton, Ontario L7A1A5

Phone: (905) 456-1072

FAX: (905) 456-2269

TROUBLESHOOTING CHART

PROBLEM CORRECTIVE ACTION

No sound in page mode.

Low volume in page

mode.

Poor listening in

talkback mode.

• Check tip and ring for audio at speaker.

• Check tip and ring at control unit.

• Check volume controls at page control.

• Check for open circuits in wiring.

• Check talkback volume controls at page control.

Set control at minimum suitable listening level.

INSTALLATION INSTRUCTIONS FOR

SURFACE MOUNT DOOR SPEAKER

V-1074

Issue 3 947013

V-1074 DOOR SPEAKER

The V-1074 Talkback Door Speaker can be used with all Valcom Handsfree

Talkback Page Controls, Door Answering Units, or any control with a 45 ohm

speaker output. It can be surface mounted with the two screws provided or

mounted in a single-gang electrical box.

Dimensions/Weight

• 5.5”H x 4.0”W x 1.125”D (13.97cm H x 10.16cm W x 2.86cm D)

• 0.5 lbs. (.23 kg)

INSTALLATION

NOTES:

Connect using unshielded, twisted pair cable and limit runs to 800

feet or less. Up to three (3) pair cable may be required when

connecting to the door speaker.

After making wire connections, cover uninsulated connections

with silicone tape, insulating putty or paint, to prevent tracking.

1. Connect TIP and RING from the Valcom Page Control speaker output to the

speaker connections (marked TIP and RING) on the Door Speaker as shown

below.

2. Connect CALL button on the Door Speaker to the customer provided signal

equipment as shown below. Switch is rated at 100 mA maximum current.

MOUNTING

The V-1074 has mounting holes located on the rear of the unit. To mount, open

the enclosure by inserting a flat blade screwdriver in the slot at the bottom of the

unit and prying the front assembly away from the mounting plate. Position the

mounting plate at the desired location and fasten to the wall or electrical box using

the screws provided. When connections are complete, snap the front assembly to

the mounting plate.

TECHNICAL ASSISTANCE

When trouble is reported, verify there are no broken connections to the unit.

Assistance in troubleshooting is available from the factory. When calling, you

should have a Volt-ohm meter and a lineman's test set available and be calling

from the job site. Call (540) 427-3900 and ask for Technical Support, or (540)

427-6000 for Valcom 24-hour Automated Support or visit our website at

http://www.valcom.com.

Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities

in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly

stating your company name, address, phone number, contact person, and the

nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

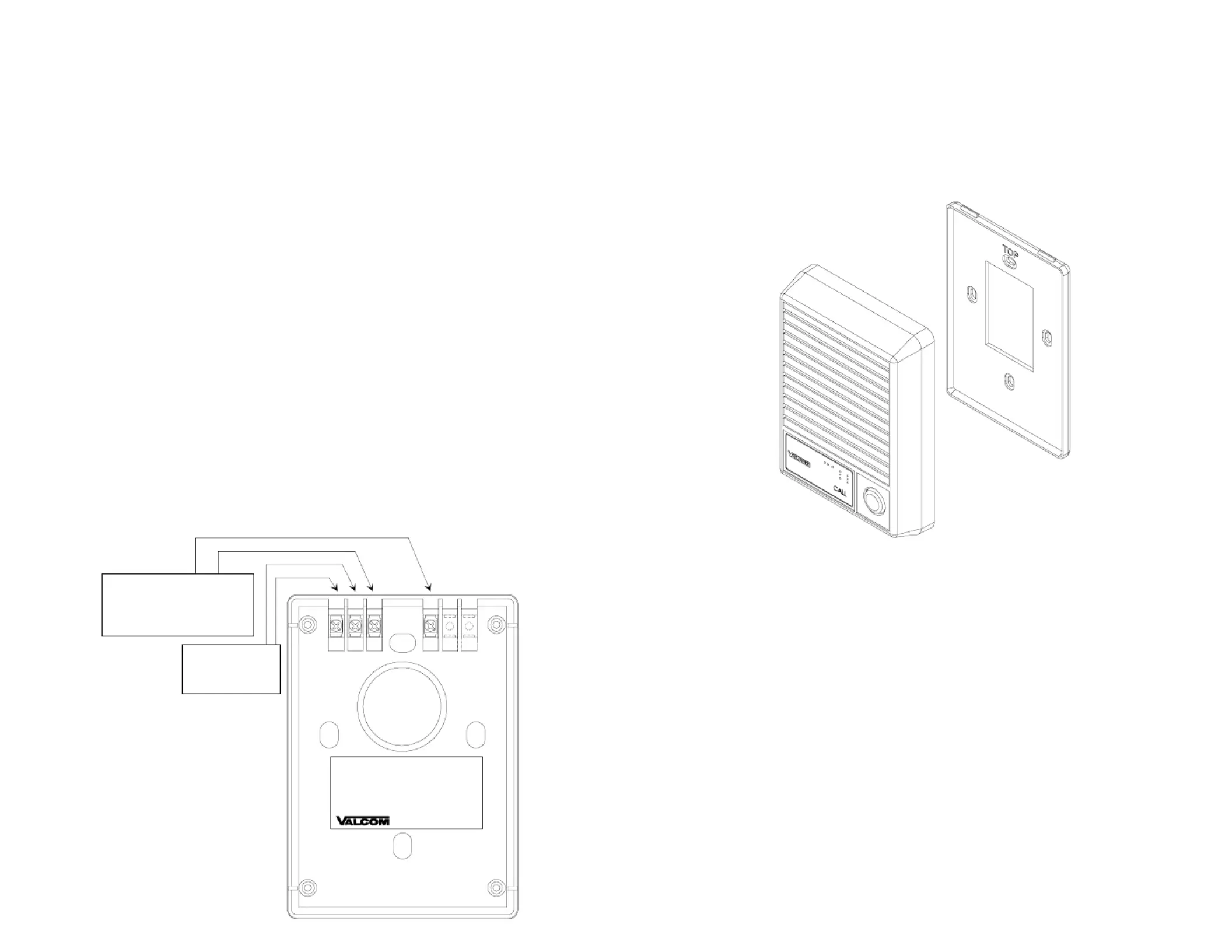

M o unting

P late

F ro nt

A s s e m b ly

1 2 3 4 5 6

V-1074 D OOR SPE AKER

CO N NE C TIO NS :

1S P E AK E R (T IP )

2 S P E AK E R (R IN G )

3 C AL L B U T TO N C .C .

4 C AL L B U T TO N C .C .

R O AN O K E , VA, U S A

TO ZON E OU TPU T

OF H A NDS F RE E

TA LK B A CK P A G E

CON TRO L

TO S W ITCH CO NNE C TIO N S

ON V A LCO M P A G E CO NTRO L

OR O TH E R S IG N A LLING

S Y S TE M

(M AX CUR R E N T: 10 0m A )

RE AR O F SP EAKER

AS SEMBLY

RING

TIP

C AL L B U TTO N C .C .
