Side 1/2

Issue 0

1947098

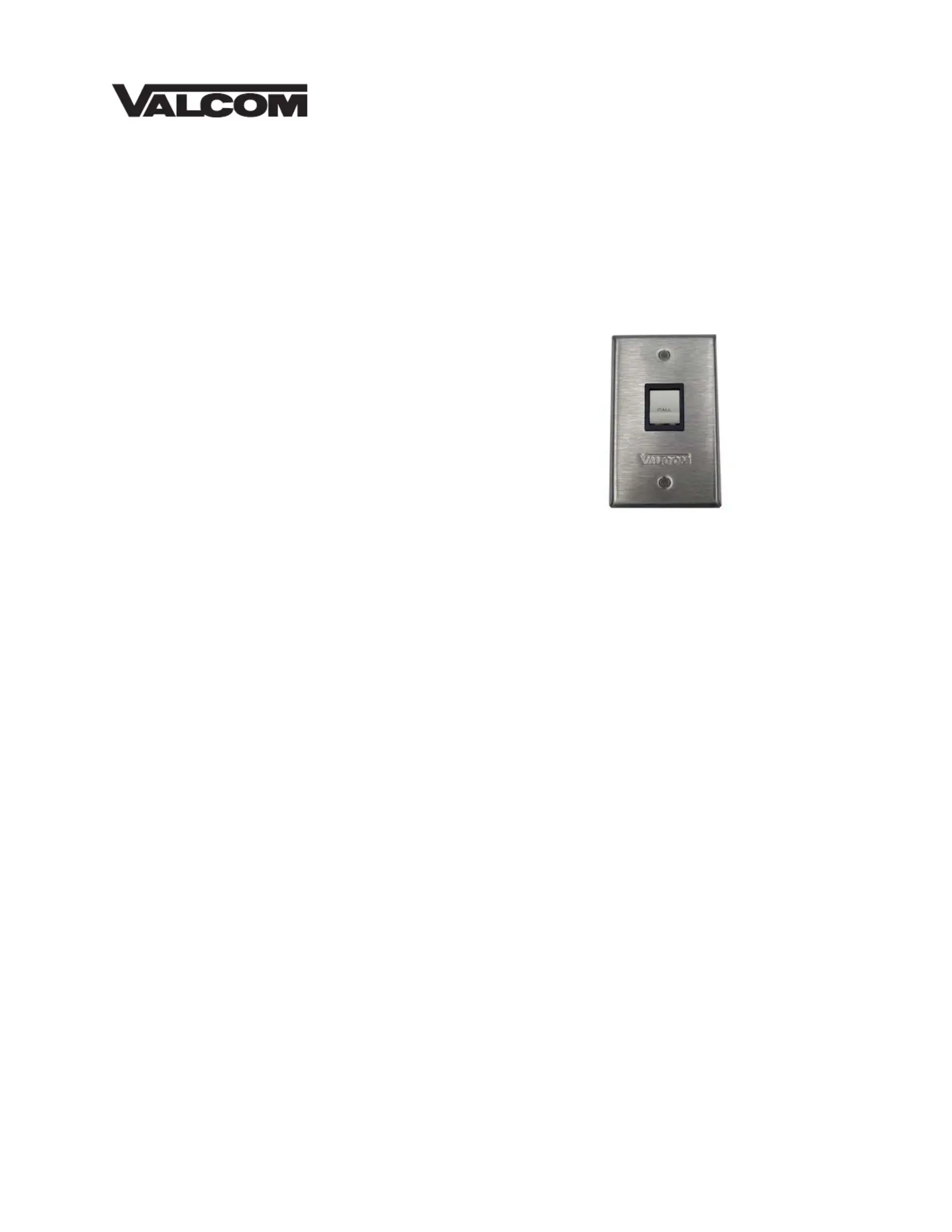

V-2972

CALL SWITCH

INTRODUCTION

The V-2972 Call Switch was designed to be

used with Talkback Page Control Units with the

remote calling feature. The V-2972 provides a

momentary spring return rocker switch for

connection to customer provided signaling

equipment.

DIMENSIONS/WEIGHT

• 4.50" H x 2.75" W x 1.50" D

(11.43cm H x 6.99cm W x 3.81cm D)

• 0.2 lbs. (.09 kg)

FEATURES

• Designed to fit in a standard single-gang

electrical box.

• No external power source required.

• White "Call" button for normal call.

• Satin finished one-gang stainless steel plate.

CONNECTIONS/SETUP

1. Connect switch inputs from control unit to

V-2972 as shown in connection diagram.

2. Connections are made by factory supplied

3 inch insulated pigtails that connect to

push-on style terminals.

3. Place V-2972 over standard single-gang

electrical box with minimum depth of

2 inches and fasten in place using the two

#6-32 screws provided.

TECHNICAL ASSISTANCE

When trouble is reported, verify that there are no

shorts or grounds on cabling.

Assistance in troubleshooting is available from

the factory. When calling, you should have a

VOM, a telephone test set available and call

from the job site. Call (540) 563-2000 and press

1 for Technical Support or visit our website at

http://www.valcom.com.

Valcom equipment is not field repairable.

Valcom, Inc. maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person

and the nature of the problem. Send the unit to:

Valcom, Inc.

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service

for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or

refund of any such defective device within the warranty period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse, or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service

charge plus parts and labor will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject ill cover minor repairs (major repairs willto a service charge. The service charge w

be subject to additional charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be

liable for any anticipated profits, consequential damages, loss of time or other losses incurred by the buyer in connection

with the purchase, operation or use of the product.

This warranty specifically excludes damage incurred in shipment. received in damaged condition, the In the event a product is

carrier should be notified immediately. Claims for such damage should be filed with the carrier involved in accordance with the

F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5

Phone: (540)563-2000 Phone: (905) 456-1072

FAX: (540) 767-1555 FAX: (905) 456-2269

V-2972 Connections

(Rear View)

Control unit SW

Spade clip

connections

provided
