Side 1/4

Issue 4

947165

PagePac®

P-TEC VOICE PAGING SPEAKERS

V-5330100 (VOICE COIL)

V-5330200 (70 VOLT)

INTRODUCTION

P-TEC Voice Paging Speakers are suitable for

voice paging as well as background music. The

V-5330200 is a 70 Volt model with adjustable taps

and volume control. The V-5330100 is a voice coil

(45 Ohm) 3.4 Volt model with volume control.

P-TEC speakers consist of a 3.6 inch cone speaker

mounted in a unique surface-mount baffle. The

baffle is designed for mounting on acoustic tile,

such as those normally found in suspended-

ceilings; and can be mounted without cutting large

holes in the tile. The mounting pins can be

removed for mounting in a hard ceiling. The

speaker housing has screw holes for securing

speaker without mounting pins. Although the

P-TEC speakers are designed especially for

standard suspended ceilings, they can be used on

many types of ceiling materials.

DIMENSIONS/WEIGHT

• 8.00” Dia x 2.50” H (20.32cm x 6.35cm)

Voice Coil 0.75 lbs. (0.34 kg)

70 Volt 1.25 lbs. (0.57 kg)

INSTALLATION

Selecting the Power-Tap Wire (70V)

Note: For the V-5330100 Speakers (Voice Coil),

begin at Suspended Ceiling Installation.

1. Remove the Quick-Connect connector from the

accessory pack.

2. Select the desired power-tap wire:

Yellow = 1/4W

Red = 1/2W

Green = 1W

White = 2W

Blue = 4W

Note: Refer to spacing chart (Figure 6) for

recommended speaker spacing.

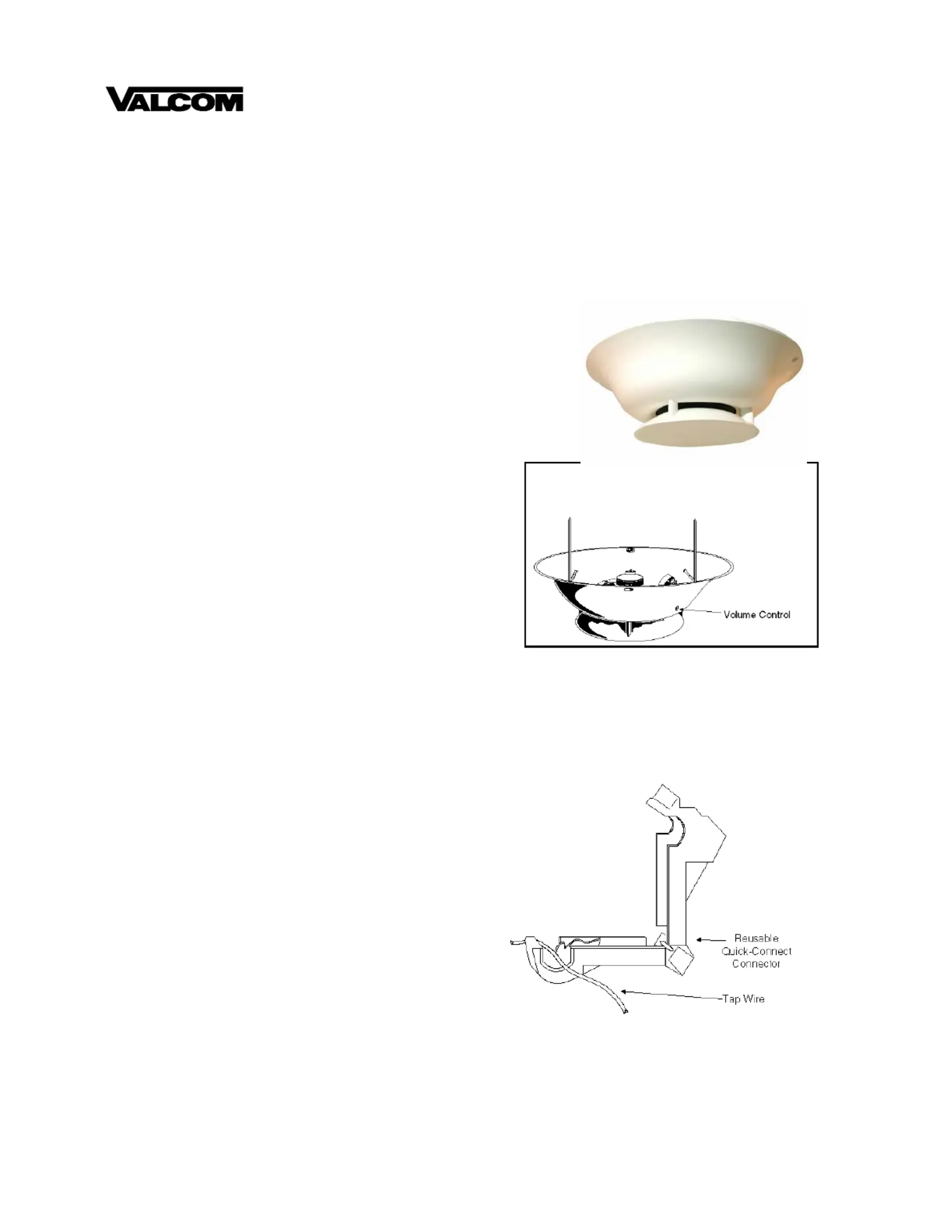

Figure 1. P-TEC Paging Speaker (70V shown)

3. Install the Quick-Connect connector on the

wire. Use pliers to close the connector over the

wire. The connector can be removed by prying

it open with a screwdriver, and can be reused

several times (See Figure 2).

Figure 2. Attaching the Reuseable Quick

Connect Connector (V-5330200 only)

4. Connect the power-tap wire to the gold (+)

terminal (See Figure 3).

5. Arrange the unused power-tap wires neatly

inside the speaker housing and tape them to the

inside of the housing.

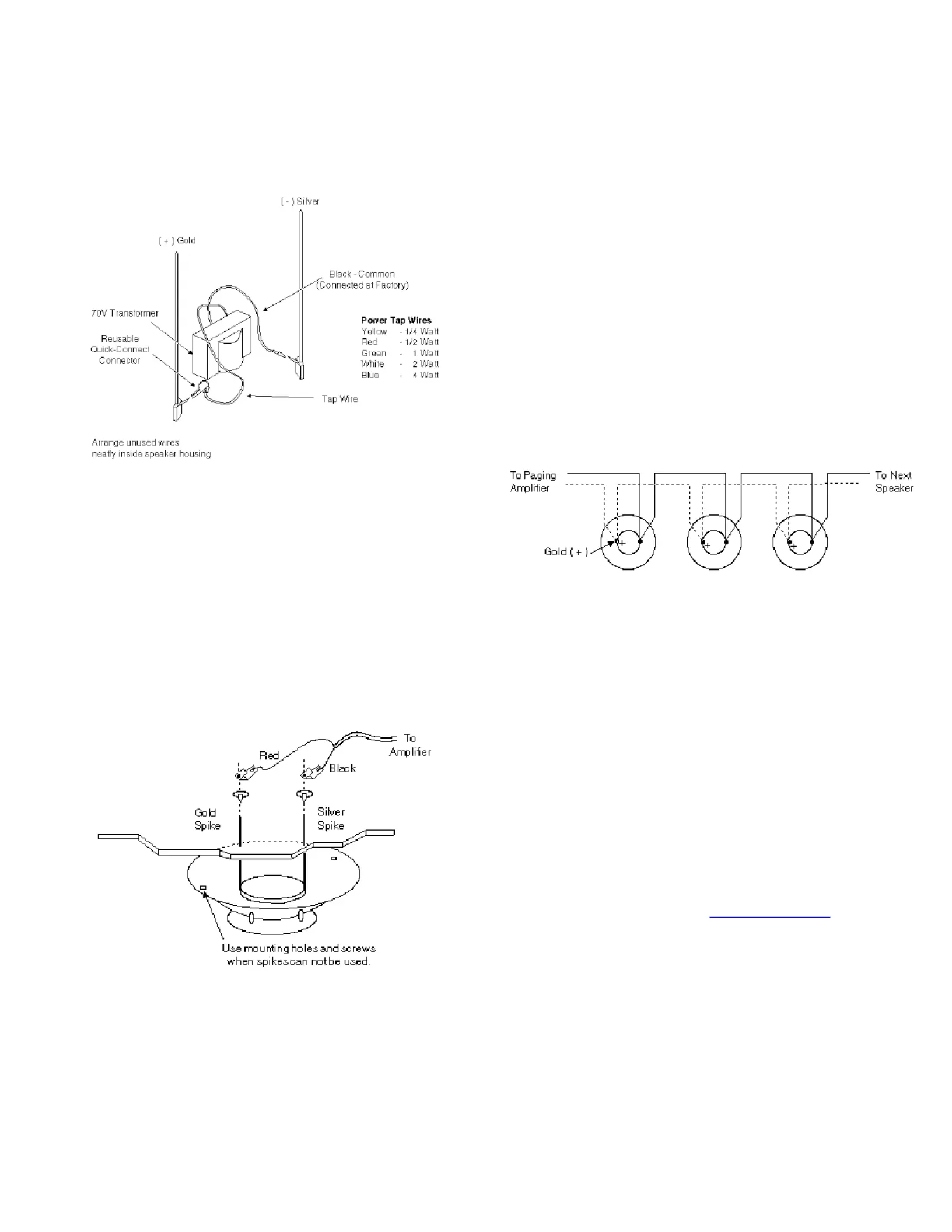

Figure 3. Connecting the Tap Wire

(V-5330200 Only)

Suspended Ceiling

Note: Wrap wires around strain relief posts so

speaker wires will not pull free.

1. Lift the adjacent ceiling tile and slide it out of the

way.

2. Install the speaker by inserting the mounting pins

through the ceiling tile, and hold the speaker in

place.

3. Place the wire and washers, and speaker

mounting clips over mounting pins (So pins slide

through clips).

Figure 4. P-TEC Installation

Note: Washers provide isolation from the pins if

the back of the tile is covered with metal

foil.

4. If necessary, adjust paging volume after instal-

lation. The volume control is located on the side

of the speaker. Use a small screwdriver to turn

the control.

5. Install the volume control cover found in the

accessory pack.

Note: When using a PagePac® Amplicenter,

music volume should be adjusted at the

paging amplifier or music source. Adjust

paging before adjusting background music.

Maintain Speaker Phasing

When using multiple speakers in a single run, keep

speakers in phase by connecting the speaker wires

to the same spike on each speaker (Either wire can

connect on either spike, as long as the pattern is

followed on each speaker). The gold spike is the

plus (+) terminal (See Figure 5).

Figure 5. Maintaining Speaker Phasing

Handling Shielded Speaker Cable

V-5330200 Only

If you are using shielded speaker cable, splice the

shield wire at the speaker location so a continuous

shield is maintained. When connecting a single

speaker or the last speaker on the run, clip the

shield wire where it emerges from the outer

insulation on the speaker cable.

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test

set available and call from the job site. Call

(540) 563-2000 and press 1 for PagePac

Technical Support,or visit our websites at

http://www.pagepac.com and www.valcom.com .

Should repairs be necessary, attach a tag to the

unit clearly stating company name, address, phone

number, contact person and the nature of the

problem. Send the unit to:

Valcom, Inc.

PagePac® Repair Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
