Side 1/4

1 947628

ISSUE 3

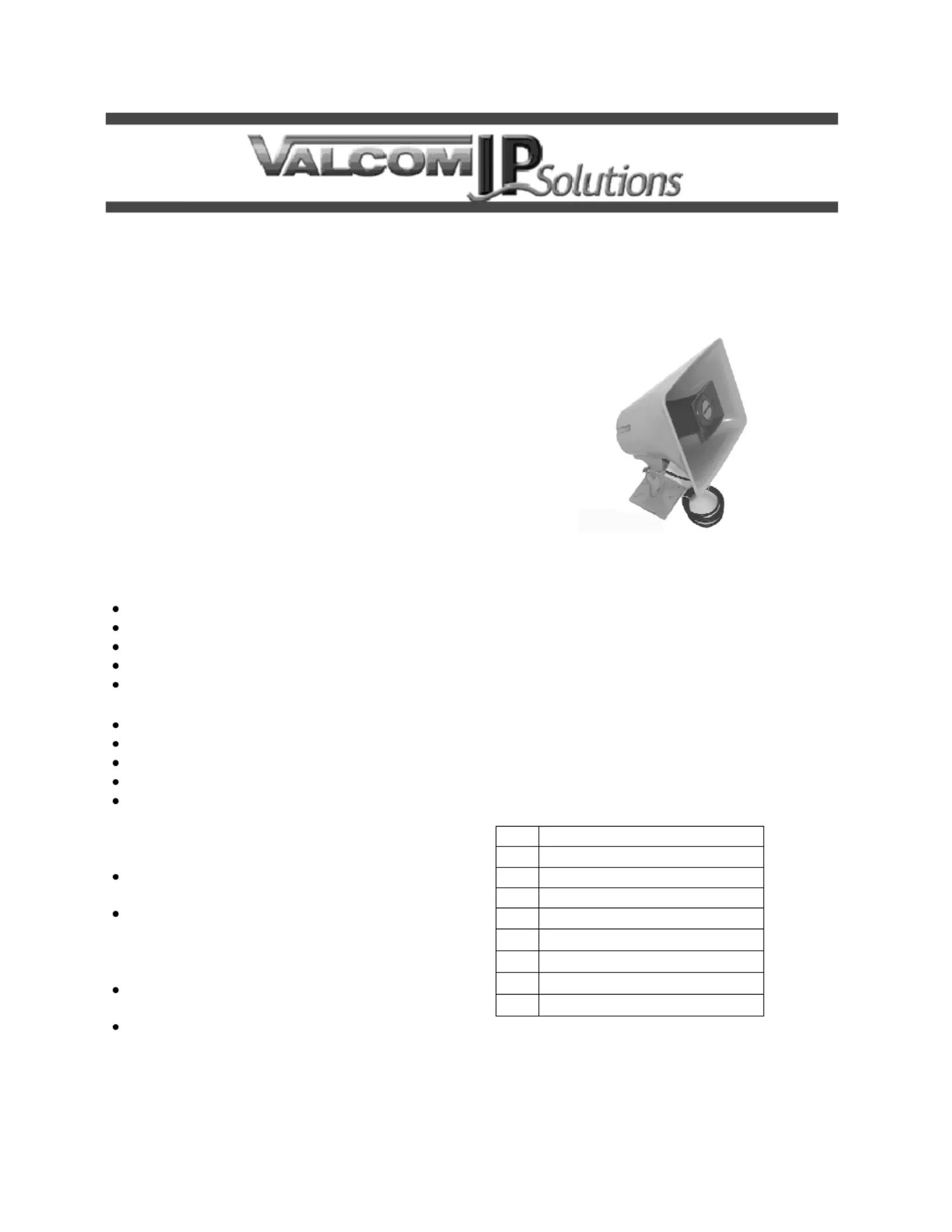

VIP-130L IP Paging Horn

INTRODUCTION

The VIP-130L IP Paging Horn is a self contained

paging system which enables voice paging up to

1200 feet from an Ethernet connection. The

VIP-130L consist of a high eiciency 5 Watt

Class- Horn and a P-LLE Network Extender D VI

allowing stand alone capability when used with a

SIP enabled telephone System or can be

accessed from a variety of Valcom managed

VoIP products.

SPECIFICATIONS

Access Methods

PBX, FXO Port w/VIP-811

POTS telephone set w/VIP- 811

PBX, FXS Port w/VIP-821

Valcom M Cast Page Group

SIP enable telephone system –

Features

- network connection RJ 45

LED Status Indicator

Network activity LEDs

802.3af compliant

High Eciency Class-D 5 Watt Amplier

Dimensions/Weight

(Horn)

H x 00" W x 1 " D 7.00”10. 0.00

(18.75 cm H x cm W x cm D) 25.4 26.4

Weight: 8 lbs. ( 63 kg) 5. 2.

Network Extender

(VIP- ) LLE

0" W x 6. " D 1.30” H x 6.1 00

(3.51 cm H x 15.72 cm W x 13.51 cm D)

Weight: 0.85 lbs. (0.39 kg)

Nominal Specications HORN –

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: -10dBm nominal

Nominal Specications VIP- –LLE

Via 802.3af PoE Ethernet Switch:

Class 3 (12.95W)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty

Item

VIP-LLE Network Extender

5 Watt High Eciency Horn

VSP Document

Mounting Brackets

Rubber Pads

Wood Screws

RJ-45 Termination Block

RJ-45 Patch Cable

2 947628

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualied service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This

equipment generates, uses and can radiate

radio frequency energy and if not installed

and used in accordance with the instruction

manual, may cause harmful interference to

radio communications. Operation of this

equipment in a residential area may cause

harmful interference in which case the user

will be required to correct the interference at

his own expense.

Precautionary Designations

Mounting (VIP- )LLE

The VIP-L Network Extender is designed for LE

wall or shelf mounting and must be within 300

feet of the network switch.

Shelf: Provided with the VIP-L Network LE

Extender are four rubber pads. Peel the pads

from the carrier backing and place at the four

corners of the bottom of the unit.

Wall: Using the brackets and wood screws

provided, secure the VIP-L Network Extender LE

to the wall.

Mounting (HORN)

The horn should be mounted 15 to 20 feet

above the oor to allow for best sound

distribution. The unit can be mounted to a wall,

a beam or an electrical box.

NOTE: For ease of installation, the base can be

attached to the speaker before or after the base

is mounted.

Loosen position adjustment knob

Insert the ball of the base into the socket

of the speaker

Tighten the position adjustment knob

Mount the base to a wall using the two

holes provided. Knockout holes are

provided for punch out should additional

holes be desired.

clamp is provided with the horn to A “C”

allow mounting to a beam. Place the

bolt through the hole in the bottom of the

base to secure the “C” clamp to the

beam. It is suggested that the horn be

mounted to the underside of the “I”

beam to provide maximum positioning

adjustments.

Connection to an electrical backbox is

accomplished by channeling wire

through the ball of the base and making

appropriate connections. The base has

holes punched for a double-gang square

box, but by punching out additional

knockout holes, the base can be

mounted to a single-gang or octagon

box

The horn may be rotated or moved up and down

to obtain the desired position by loosening the

position adjustment knob at the bottom of the

unit approximately one turn. Make required

adjustments and re- en knob. tight

Interconnections

The method of powering the VIP-130 IP only L

Paging Horn is via a power over Ethernet switch

or power injector meeting the 802.3af

specication .

Make all required signal connections before

connecting to Ethernet switch or power injector

meeting the 802.3af specification. Power is

supplied to the horn assembly via the

VIP-L Network Extender. LE

Produkt Specifikationer

Mærke:	Valcom
Kategori:	Højttaler
Model:	VIP-130L
Bredde:	254 mm
Dybde:	264 mm
Højde:	187.5 mm
Vægt:	2630 g
Produktfarve:	Hvid
Wi-Fi:	Ja
Udgangseffekt (RMS):	5 W
Ethernet LAN-porte (RJ-45):	1
Ethernet LAN:	Ja
Udgangsspænding for vekselstrømsadapter:	24 V
Anbefalet brug:	Andet
Frekvensområde:	- Hz
Højttaler, type:	1-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Kan monteres på væggen
Certificering:	FCC 15, CE, WEE\n
Netværksstandarder:	IEEE 802.3af
Strømkilde type:	PoE
Antal drivere:	1
Kapabilitet:	Cisco, Nortel, Avaya
Vekselstrømsadapterens udgangsstrøm:	0.325 A
