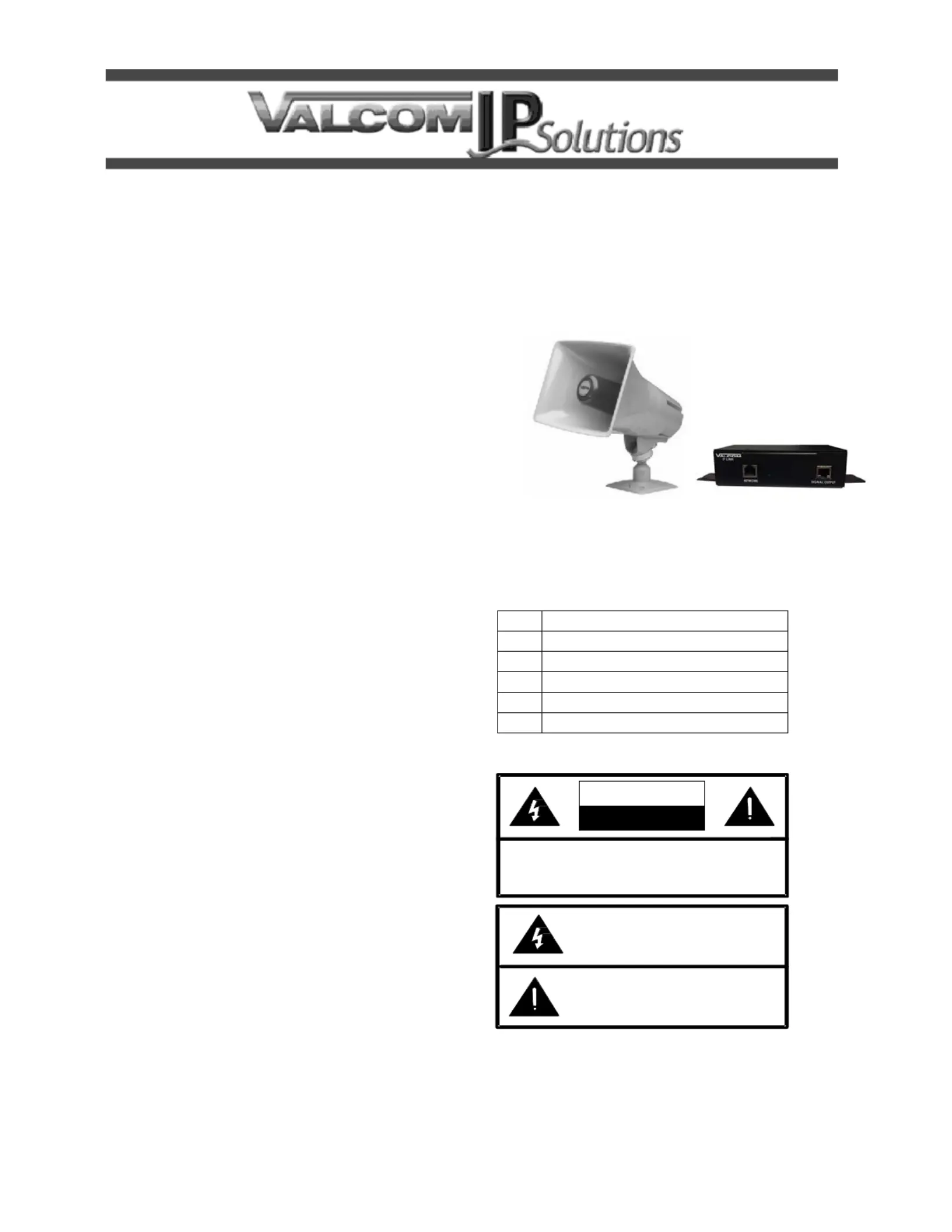

VIP-148AL IP Talkback Horn
INTRODUCTION
The VIP-148AL IP Talkback Horn enables
two-way handsfree voice access to a single
location over an IP-based network. This allows a
page zone extension anywhere on the network.
The horn audio level is electronically adjusted via
software. A call switch input connection is
provided for call initiation. Power is provided to
the VIP-148AL via a Power over Ethernet (PoE)
switch meeting the 802.3af specication.
SPECIFICATIONS
Access Methods
PBX, FXO Port w/VIP-811
POTS telephone set w/VIP-811
FXS Port w/VIP-821
SIP telephone system
Features
RJ-45 for network connection
Network activity LEDs
Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight VIP-148AL
Horn
7.38” H x 10.0” W x 10.4” D
(18.75cm x 25.4cm x 26.42cm)
Weight: 3.70 lbs. (1.68 kg)
Network Interface
1.62” H x 5.63” W x 3.45” D
(4.11 cm) x (14.30 cm) x (8.73 cm)
with brackets – 8.22” W (20.87 cm)
Weight: 2.10 lbs. (0.95 kg)
Environment
Network Interface:
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
Horn:
Suitable for indoor or outdoor installation
Nominal Power Requirements
Via 802.3af (PoE) Ethernet Switch: Class 3
Packing List
Qty Item
1 Network Interface
1 VIP-148AL Horn
1 VSP Document
1 “C” Clamp
1 VM-186 RJ-45 Connector
Precautionary Designations
2 947810
FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses and can radiate
radio frequency energy and if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area may cause
harmful interference in which case the user
will be required to correct the interference at
his own expense.
INSTALLATION
Operation:
Provides talkback intercom via Network
connection to customer telephone system or
stand alone telephone set. Interface to customer
telephone system can be via SIP registration,
FXO port or FXS port (additional equipment
required in all cases). The optional call button
may be programmed to initiate a call to one of the
above telephone system interfaces. When the
call is answered, a hands-free communications
path is established to the horn.
Mounting (Network Interface)
The VIP-148AL Network Interface is designed for
wall or table mounting and must be within 100
meters of the network switch.
Mounting (Horn)
The VIP-148AL Horn is designed for most FD
electrical box or wall mounting and must be within
300 meters of the VIP-148AL Network Interface.
See NEMA OS 3-2002 sec.1.2.3.5 for FD box
specifications.
Attaching Speaker to Base
NOTE: For ease of installation, the base can be
attached to the speaker before or after the base
is mounted.
Loosen position adjustment knob
Insert the ball of the base into the socket of
the speaker
Tighten the position adjustment knob
These horns should be mounted 15 to 20 feet
above the oor to allow for best sound
distribution. The units can be mounted to a wall,
a beam or an electrical box.
A “C” clamp is provided with the horns to
allow mounting to a beam. When using the
“C” clamp for mounting, remove the signal
cable from the ball mount. Reinstall an RJ45
connector on the signal cable after mounting,
using the T568B pinout scheme. See Figure
1.
The base has holes punched for a
double-gang square box, but by punching out
additional knockout holes, the base can be
mounted to a single-gang or octagon box
See Figure 2.
Mount the base to wall studs using the two
holes provided. Knockout holes are provided
for punch out should additional holes be
desired. See Figure 3.
The horns may be rotated or moved up and down
to obtain the desired position by loosening the
position adjustment knob at the bottom of the unit
approximately one turn. Make required
adjustments, retighten knob.

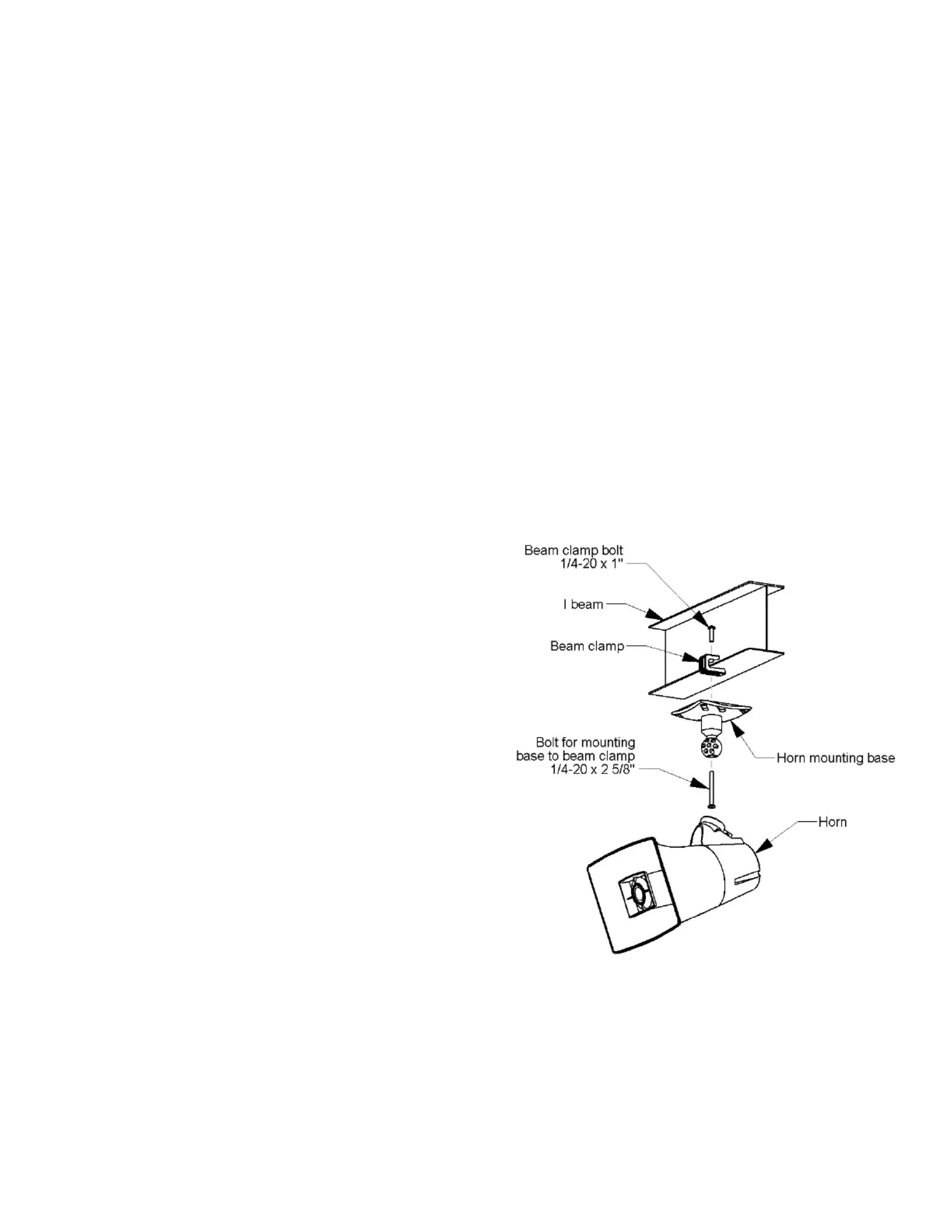

Figure 1. Mounting to a Beam with a “C” Clamp
