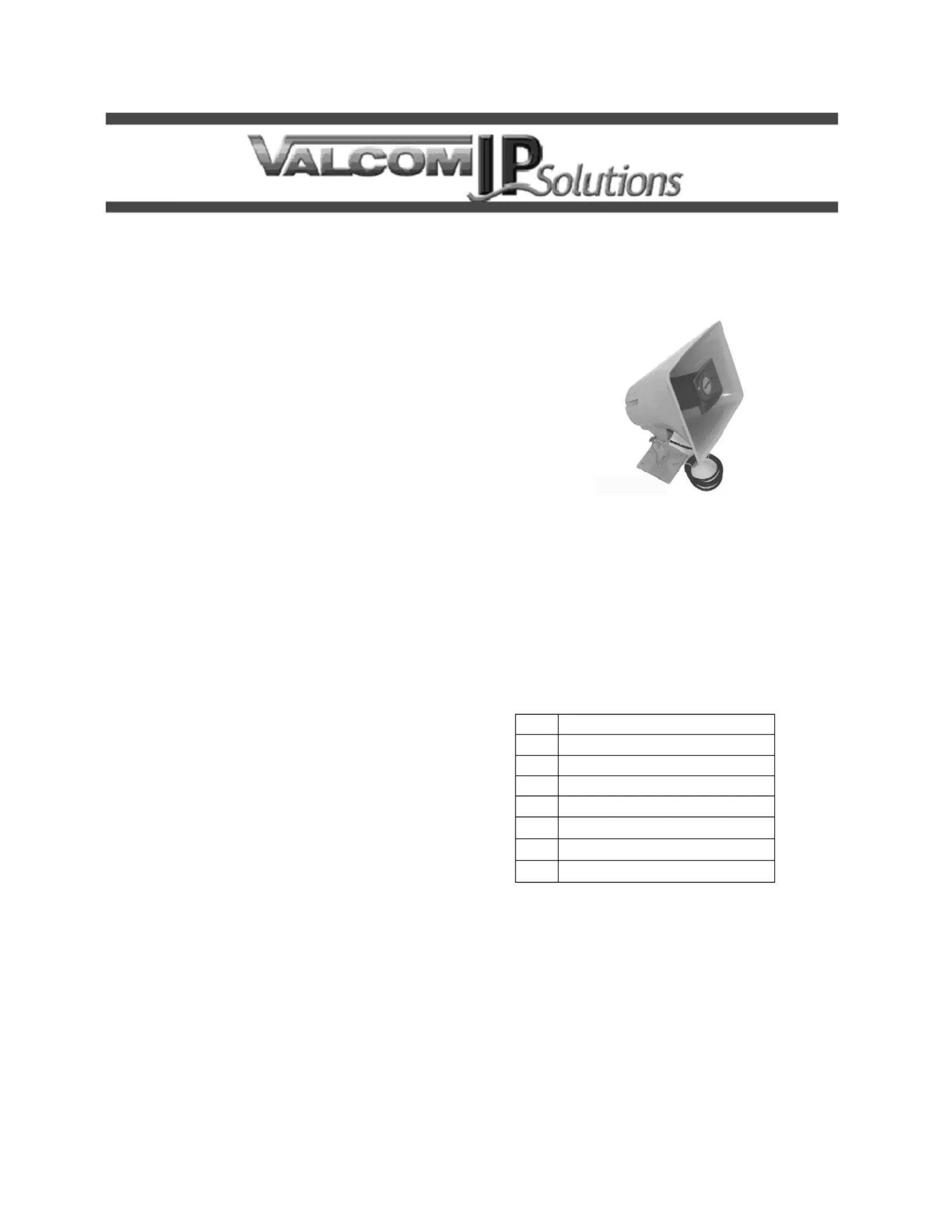

VIP-130L IP Paging Horn

INTRODUCTION

The VIP-130L IP Paging Horn is a self contained

paging system which enables voice paging up to

1200 feet from an Ethernet connection. The

VIP-130L consists of a high efficiency 5 Watt Class-D

Horn and a VIP-LLE Network Extender allowing

stand alone capability when used with a SIP enabled

telephone system or can be accessed from a variety

of Valcom managed VoIP products.

SPECIFICATIONS

Access Methods

 PBX, FXO Port w/VIP-811

 POTS telephone set w/VIP-811

 PBX, FXS Port w/VIP-821

 Valcom M Cast Page Group

 SIP telephone system

Features

 RJ-45 network connection

 LED Status Indicator

 Network activity LEDs

 Power over Ethernet (PoE) 802.3af compatible

 High Efficiency Class-D 5 Watt Amplifier

Dimensions/Weight

(Horn)

 7.00” H x 10.00" W x 10.00" D

(18.75 cm H x 25.4 cm W x 26.4 cm D)

 Weight: 5.8 lbs. (2.63 kg)

Network Extender

(VIP-LLE)

 1.30” H x 6.10" W x 6.00" D

(3.51 cm H x 15.72 cm W x 13.51 cm D)

 Weight: 0.85 lbs. (0.39 kg)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Nominal Specifications – HORN

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: -10dBm nominal

Nominal Speciﬁcations – VIP-LLE

Via 802.3af PoE Ethernet Switch:

Class 3

Packing List

Qty Item

1 VIP-LLE Network Extender

1 5 Watt High Efficiency Horn

1 VSP Document

2 Mounting Brackets

4 Rubber Pads

4 Wood Screws

1 “C” Clamp

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if not

installed and used in accordance with the

2 947628

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indic ates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

instruction manual, may cause harmful

interference to radio communications. Operation

of this equipment in a residential area may cause

harmful interference in which case the user will

be required to correct the interference at his own

expense.

Precautionary Designations

Mounting (VIP-LLE)

The VIP-LLE Network Extender is designed for wall

or shelf mounting and must be within 300 feet of the

network switch.

Shelf: Provided with the VIP-LLE Network Extender

are four rubber pads. Peel the pads from the carrier

backing and place at the four corners of the bottom of

the unit.

Wall: Using the brackets and wood screws provided,

secure the VIP-LLE Network Extender

to the wall.

Mounting (HORN)

The horn should be mounted 15 to 20 feet above the

floor to allow for best sound distribution. The unit can

be mounted to a wall, a beam or an electrical box.

NOTE: For ease of installation, the base can be

attached to the speaker before or after the base is

mounted.

 Loosen position adjustment knob

 Insert the ball of the base into the socket of

the speaker

 Tighten the position adjustment knob

 Mount the base to a wall using the two

pre-drilled holes provided.

 A “C” clamp is provided with the horn to allow

mounting to a beam. Place the bolt through

the hole in the bottom of the base to secure

the “C” clamp to the beam. It is suggested

that the horn be mounted to the underside of

the “I” beam to provide maximum positioning

adjustments.

 The base has pre-drilled holes for a double-

gang square electrical box, but by drilling out

additional knockout holes, the base can be

mounted to a single-gang or octagon box.

The horn may be rotated or moved up and down to

obtain the desired position by loosening the position

adjustment knob at the bottom of the unit

approximately one turn. Make required adjustments

and re-tighten knob.
