1 947630

ISSUE 1

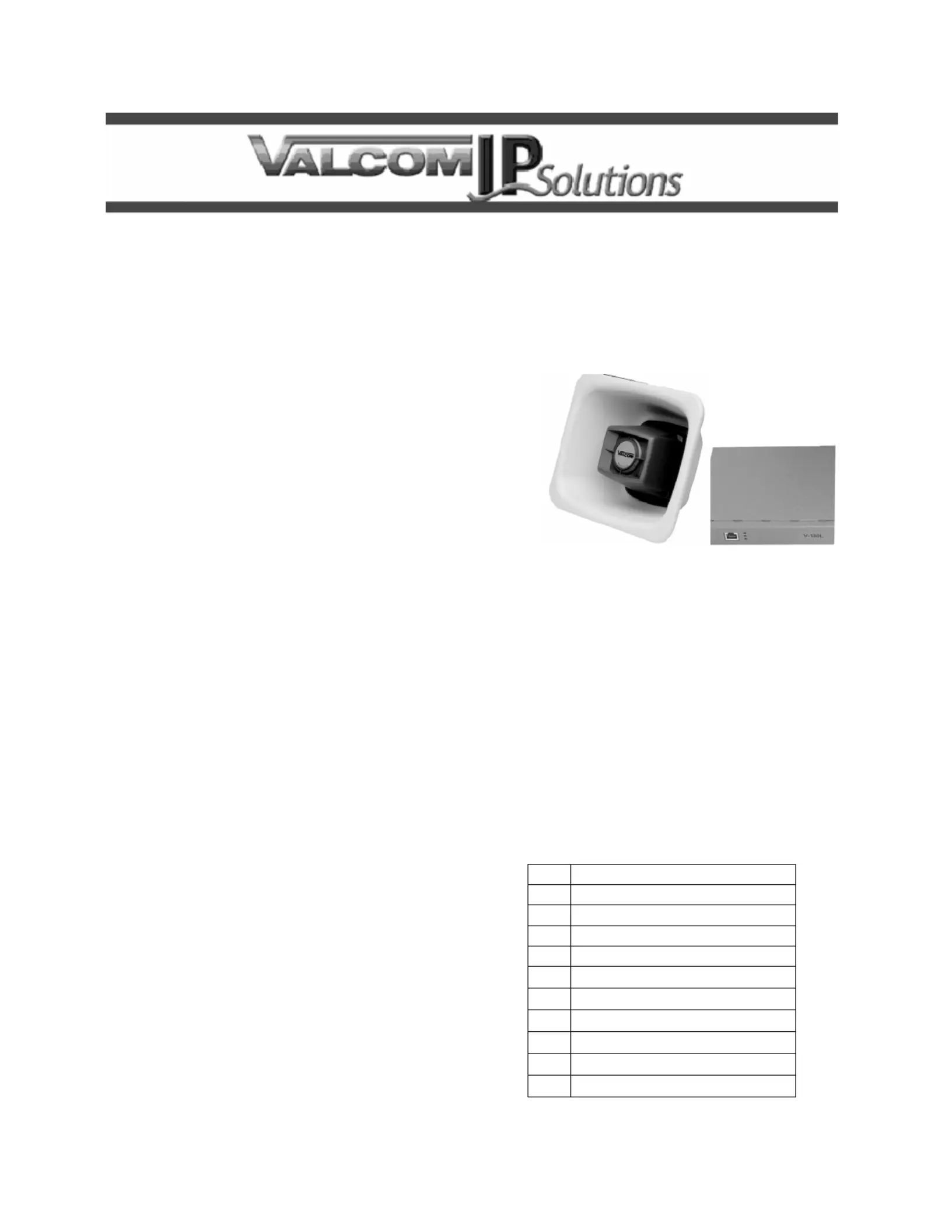

VIP-480L IP Paging Horn

INTRODUCTION

The VIP-480L IP Paging Horn is a self contained

paging system which enables voice paging up to

1200 feet from an Ethernet connection. The

VIP-480L consist of a high efficiency 3 Watt

Class-D Horn and a VIP-LLE Network Extender

allowing stand alone capability when used with a

SIP Phone System or can be accessed from a

variety of Valcom managed VoIP products.

SPECIFICATIONS

Access Methods

• PBX, FXO Port w/VIP-811

• POTS telephone set w/VIP-811

• PBX, FXS Port w/VIP-821

• Valcom M Cast Page Group

• SIP

Features

• RJ-45 network connection

• LED Status Indicator

• Network activity LEDs

• 802.3af compliant

• High Efficiency Class-D 3 Watt Amplifier

Dimensions/Weight

(HORN)

• 6.8”H x 8.3”W x 3.3” D

(17.3cm H x 21.1cm W x 8.4cm D)

• 2.1 lbs. (0.95 kg)

Network Extender

(VIP-LLE)

• 1.30” H x 6.10" W x 6.00" D

(3.51 cm H x 15.72 cm W x 13.51 cm D)

• Weight: 0.85 lbs. (0.39 kg)

Nominal Specifications – HORN

Input Impedance: 600 Ohms

Input Level: -10dBm

Output Impedance: 600 Ohms

Output Level: -10dBm nominal

Nominal Specifications – VIP-LLE

Via 802.3af PoE Ethernet Switch:

Class 3 (12.95W)

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

Packing List

Qty Item

1 VIP-LLE Network Extender

1 3 Watt High Efficiency Horn

1 VSP Document

2 Mounting Brackets

1 VIP Quick Start Guide

4 Rubber Feet

4 Wood Screws

1 RJ-45 Termination Block

1 RJ-45 Patch Cable

1 “C” Clamp

2 947630

CAUTION: To reduce the risk of electric shock,

Do not remove cover.

No user serviceable parts inside.

Refer servicing to qualified service personnel.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous

voltage constituting a risk of electric

shock is present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

INSTALLATION

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.

Precautionary Designations

Mounting (VIP-LLE)

The VIP-LLE Network Extender is designed for wall

or shelf mounting and must be within 300 feet of the

network switch.

Shelf: Provided with the VIP-LLE Network Extender

are four rubber stick on feet. Peel these feet off

their carrier backing and place at the four corners of

the bottom of the unit.

Wall: Using the brackets and wood screws

provided, secure the VIP-LLE Network Extender

to the wall.

Mounting (HORN)

FLUSH MOUNT

Using the template packaged with the speaker,

draw the speaker outline on the wall to be cut.

Make appropriate wiring connections and test the

speaker for operation. Using appropriate

mounting screws (not furnished) drill and mount

the flange as shown.

UNIVERSAL BRACKET

Loosen or separate the universal bracket leaves

by loosening or removing the handle and

hardware. Using the back leaf as a template,

mark the wall through the mounting holes, drill

and mount to the wall using appropriate screws

(not furnished) or mount directly to a junction box.

Mount the T-bracket to the back of the horn as

shown using the (2) ½ inch screws provided.

“C” CLAMP FOR “I” BEAM MOUNTING

A “C” clamp is provided with the horn to allow

mounting to a beam. Place the bolt through the

hole in the bottom of the base to secure the “C”

clamp to the beam. It is suggested that the horn

be mounted to the underside of the “I” beam to

provide maximum positioning adjustments.

Mount (2) ½ inch screws provided.

Interconnections

The only method of powering a VIP-480L IP

Paging Horn is via a power over Ethernet switch

or power injector meeting the 802.3af

specification.

Make all required signal connections before

connecting to Ethernet switch or power injector

meeting the 802.3af specification. Power is

supplied to the horn assembly via the

VIP-LLE Network Extender.
